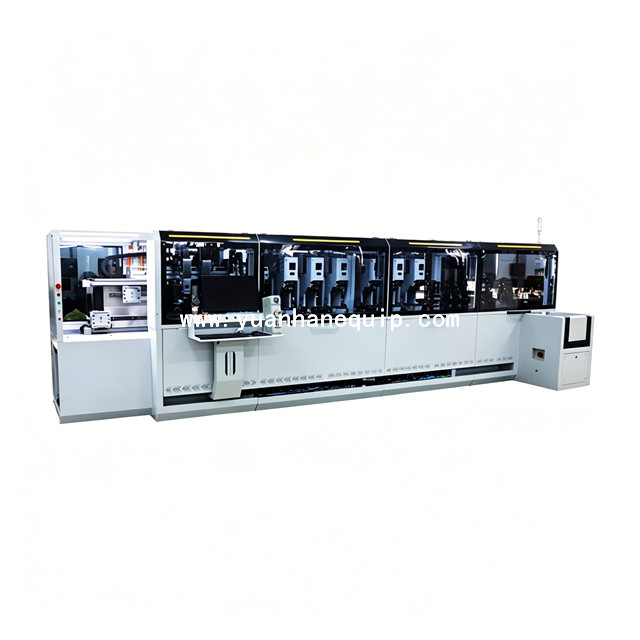

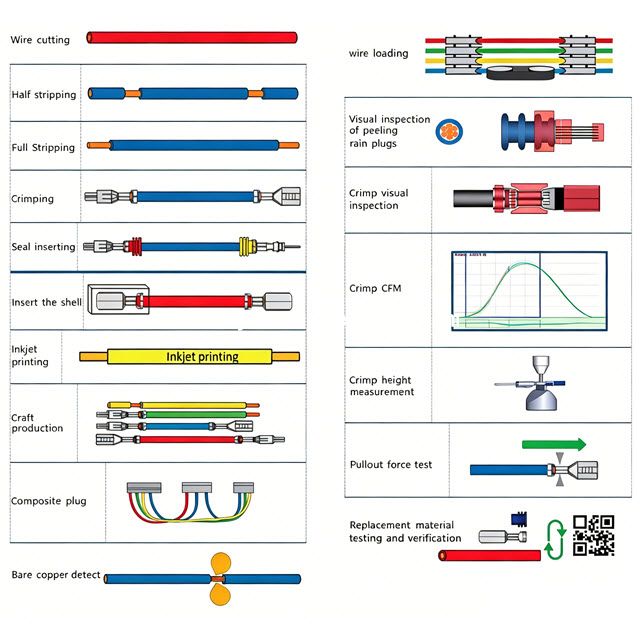

This wire cutting stripping crimping and rubber seals & housing inserting machine is an all-in-one automatic wire harness processing equipment. It integrates full functions: fixed-length wire cutting, insulation stripping, terminal crimping, automatic waterproof rubber seal threading, and plastic connector housing insertion in one single station.
|
Model:
|
|
|
Brand:
|
|
○ Integrated multi-functional design: all-in-one automated machine integrates wire cutting, stripping, terminal crimping, rubber seal insertion and housing assembly. It realizes one-stop wire harness production, streamlines workflows and improves overall efficiency without separate equipment deployment.
○ High precision & stable quality: adopts high-precision servo systems and imported premium components. It delivers accurate cutting, uniform stripping and standardized crimping & assembly, effectively preventing core damage, poor crimping, offset seals and loose fittings.
○ Wide compatibility & versatility: fits multiple wire types including electronic, PVC and stranded wires, as well as various terminals, waterproof seals and plastic housings. Quick parameter tuning and mold changes adapt to diversified wire harness production needs.
○ Intelligent full-automatic operation: equipped with PLC control system and touch screen for easy parameter setup. Full-process automatic operation from feeding to finished output minimizes manual work and cuts labor costs.
|
Model |
YH-FSCJK03 |
|
Diameter range |
0.22-2.5 mm² |
|
Processing length |
Single-ended processing: 80-2000mm |
|
Length accuracy |
L<500mm : +1mm |
|
Peeling length |
0.1-25mm |
|
Feeding speed |
0-5M/S(max) |
|
Number of threading stations |
0-6 (Can be increased) |
|
Number of crimping stations |
3-12 (Can be increased) |
|
Crimping force |
25KN |
|
Number of wires loaded |
36 (MAX:54) |
|
Capability |
1.5-3S/hole(The process may vary depending on the process.) |
|
Power |
AC380V 50Hz 10kw |
|
Air supply |
0.5-0.8Mpa |
|
Gas consumption |
10-15m³/h |
|
Weight |
3800kg |
|
Dimension |
6180*1850*1850mm (9 work stations) |
