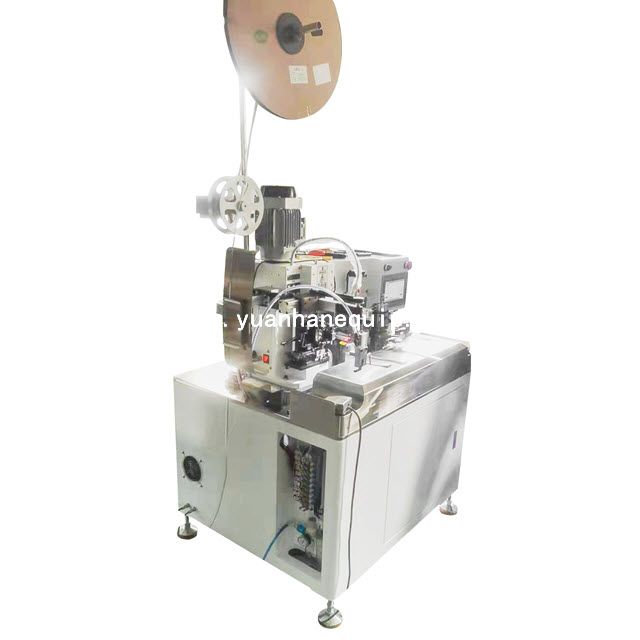

Multi-core Cable Housing Connector Inserting MachineMulti-core Cable Housing Connector Inserting Machine

This is a semi-automatic cable core wires stripping, crimping and housing connector inserting machine.

Model:
  • YH-01ACJK
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Function: cable inner core wires stripping, terminal crimping and housing connector insertion.

Model YH-01ACJK
Processing capacity (8Pin) 5600 terminals/hour
Wire size AWG22-AWG28 (2P-12P)
Processing length 100-9999.99mm
Outer jacket length 33-999mm
Stripping accuracy ±0.1mm
Crimping force 20000N
Control mode digital control
Power supply AC220V/50HZ
Compressed air 0.5MPa
Dimensions 790x670x1365 mm (Length×width×height)
Weight about 200kg
×
