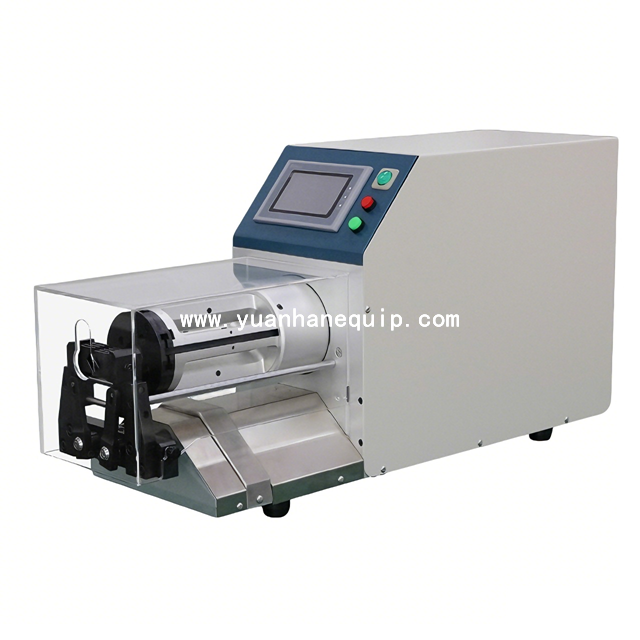

This semi-automatic coaxial cable stripping machine is designed for precise peeling of coaxial wires. It features easy operation, stable performance and adjustable stripping length and depth.
|
Model:
|
|
|
Brand:
|
|
○ Precise stripping for coaxial cables, no damage to inner core and insulation layer
○ Semi-automatic operation, easy to operate and save labor cost
○ Adjustable stripping length and depth to fit different wire specifications
○ Stable performance, high working efficiency and long service life
○ Compact structure, space-saving and convenient for placement
○ Safe design with reliable protection during working process
○ Widely applicable for various types of coaxial wires processing
|
Model |
YH-2315 |
YH-2320 |
|
Working Power Supply |
AC220V/110V 50/60Hz |
AC220V/110V 50/60Hz |
|
Power |
600W |
600W |
|
Stripping Length |
0-150mm |
0-200mm (Max.) |
|
Stripping Length Setting Unit |
0.01mm |
0.01mm |
|
Cutting Wire Diameter Range |
2-23mm |
2-23mm |
|
Cutting Depth Setting Unit |
0.01mm |
0.01mm |
|
Number of Blades |
4 Rotary Blades |
4 Blades |
|
Maximum Stripping Layers |
9 Layers |
9 Layers |
|
Overall Dimensions |
780235400mm |
930235400mm |
|
Weight |
48.5kg |
56kg |
|
Production Efficiency |
400-800 Pcs/h (depending on wire type) |
300-800 Pcs/h (depending on wire type) |
