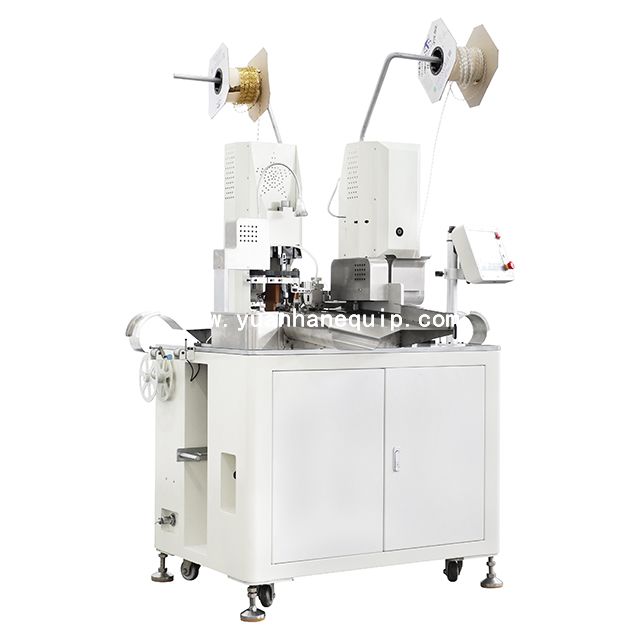

Servo Motor Cable Double-end Terminal Crimping Machine

This is a fully automatic servo motor driven cable cutting stripping and double-ended terminal crimping machine.

Model:	YH-SFST02
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

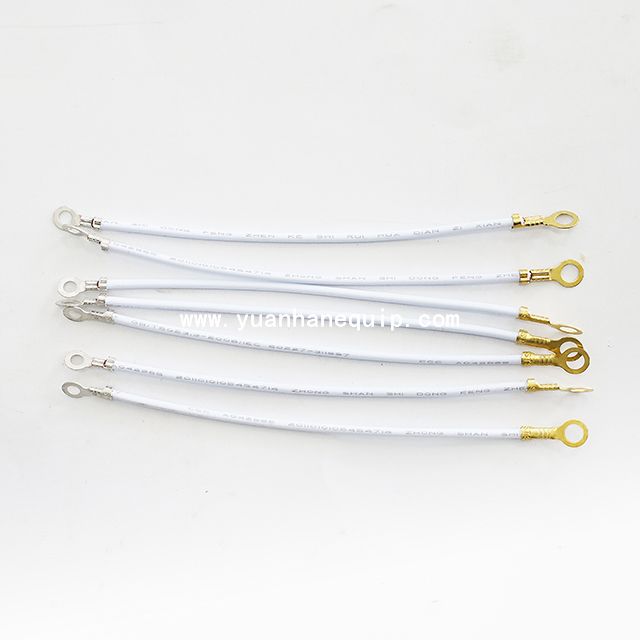

○ Function: wire cutting, double-end twisting, single-end crimping, and double-end crimping.

○ Exquisite appearance, compact structure, space saving, beautiful design

○ Computer touch screen, easy to operate

○ Parts replacement is simple and fast, full digital troubleshooting, easy maintenance

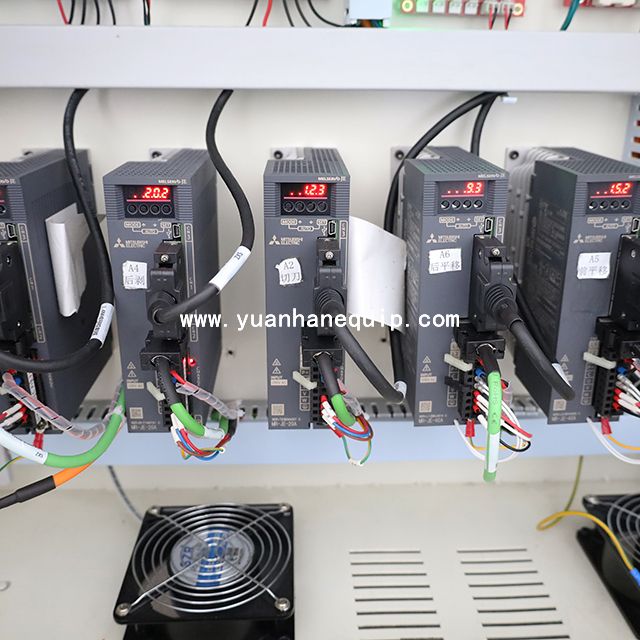

○ Efficient servo motor drive, high precision and fast speed

Model	YH-SFST02
Power supply	AC220V/50/60HZ single phase
Capacity	1400 pieces/hour (length＜300mm）
Wire range	AWG14 - AWG28
Cutting length	65mm - 9999mm (special length can be customized)
Cutting accuracy	1mm+cutting length*0.2% or less
Stripping and twisting length	7mm - 12mm
Crimping capacity	2.0 tons (3.0T optional)
Air pressure	4 - 6kgf (clean and dry air is required)
Detection device	optical fiber induction, detection of wire presence, detection of terminal crimping, blockage detection, low air pressure detection
Dimensions	700W x 800L x 1500H(mm)
Weight	about 358kg
