Kunshan Yuanhan Electronic Equipment Co., Ltd.
Kunshan Yuanhan Electronic Equipment Co., Ltd.

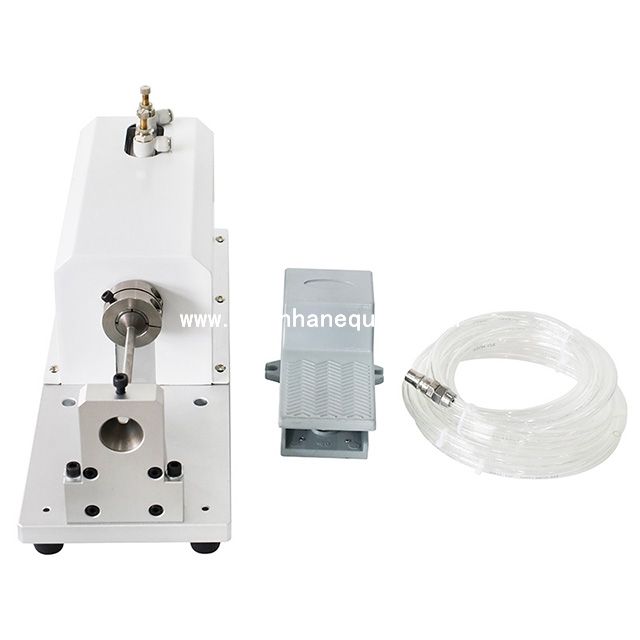

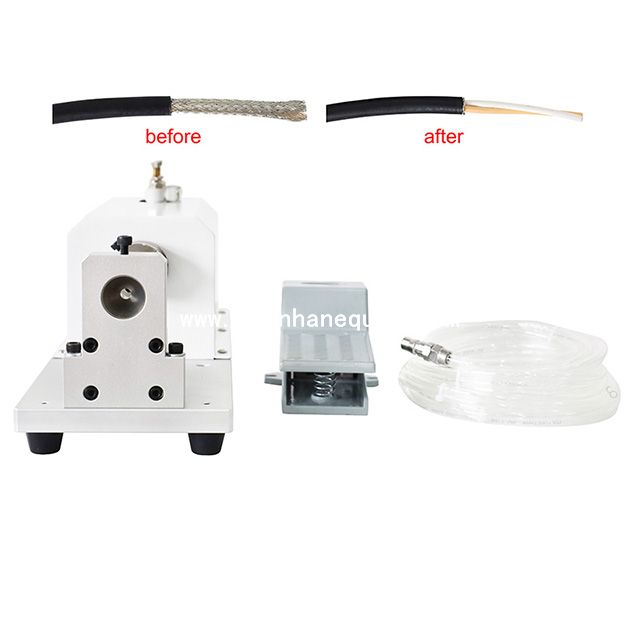

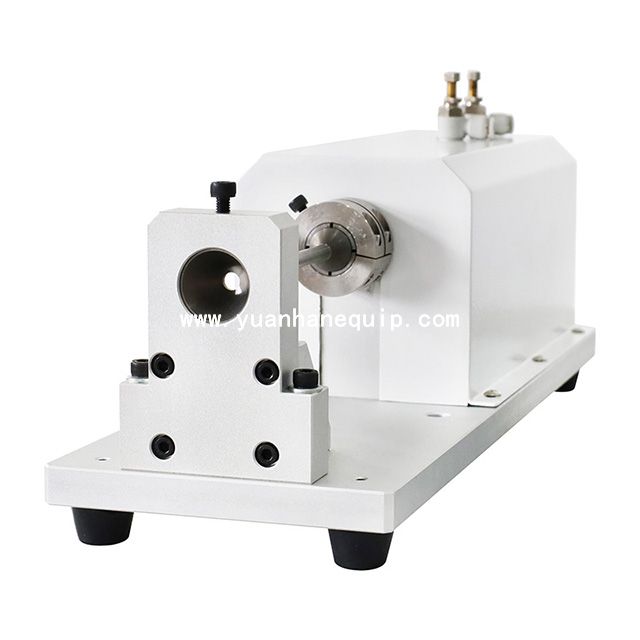

The cable shielding layer automatic cutting machine is designed to streamline the process of cutting cable shielding layers with precision and efficiency.
|
Model:
|
|
|
Brand:
|
|
○ All working areas of the machine are visible.

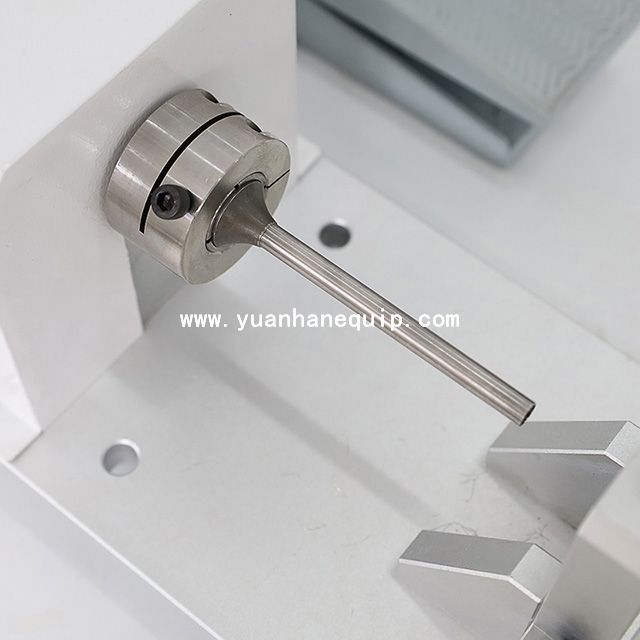

○ When replacing wires, only the matching cutting tube and conduit need to be replaced.
○ The shielding net can be reserved for a specified length and then cut or completely cut.
○ The mechanical structure is simple and flexible to use.
○ The air pipe is connected, no need to plug in electricity, and it is safer to use.
| Model | YH-JPB01 |
| Cable | 4-70mm (shielding layer outer diameter 3-16mm) |
| Shielding net cut-off length | 2-70mm (with reserved length) 2-110mm (without reserved length) (can be customized) |
| Air control method | pneumatic control |
| Operation mode | foot operation |
| Dimensions | L410mm x W145mm x H155mm |
| Weight | about 5KG |
