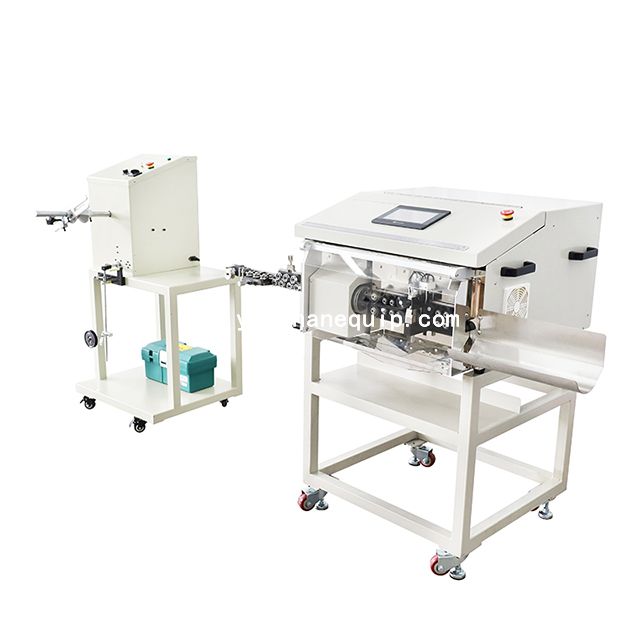

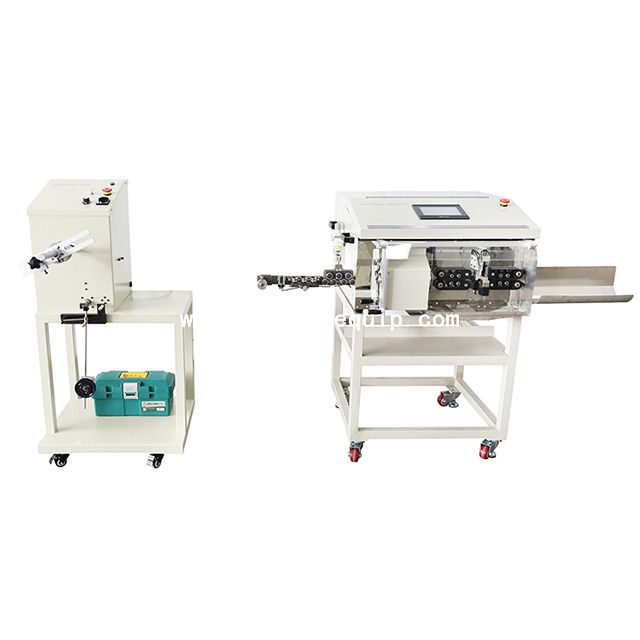

Introducing our fully automatic short coaxial cable stripping machine, designed to streamline and simplify the process of stripping coaxial cables with precision and efficiency. This machine is equipped with advanced technology to ensure consistent and accurate results every time.
|
Model:
|
|
|
Brand:
|
|
○ The fully automatic short coaxial cable stripping machine boasts a range of impressive features, including a user-friendly interface that allows for easy operation. With programmable settings, operators can customize the stripping process to meet specific requirements, ensuring optimal performance for various cable types and sizes.
○ This machine is designed for high-volume production environments, with a fast stripping speed that helps to increase productivity and reduce downtime. Its durable construction and reliable components make it a long-lasting investment for your business.
|
Model |
YH-9610D |
YH-9610S |
|
Cutting Length |
Suitable for cutting short wires |
Suitable for cutting long wires |
|
Display Mode |
Touch Screen (Chinese-English bilingual LCD, 153mm×85mm) |
Touch Screen (Chinese-English bilingual LCD, 153mm×85mm) |
|

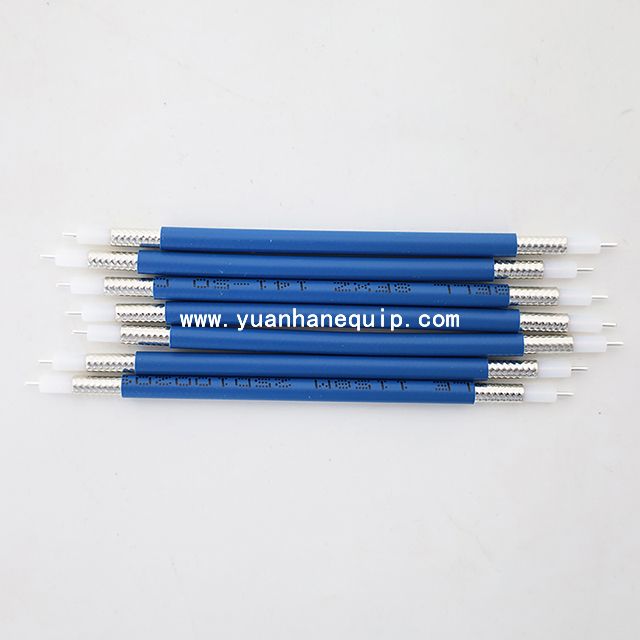

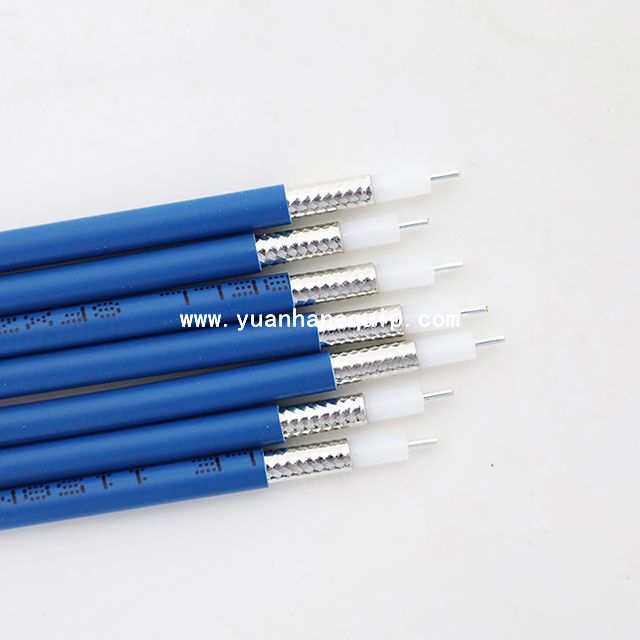

Applicable Wire Type |
Semi-flexible, Flexible Coaxial Cables |
Coaxial Cable |
|
Wire Diameter Range |
1.0-6.0mm |
1.0-6.0mm (Max 8.5mm with replacement of cutter head) |
|
Wire Cutting Length Range |
15-250mm |
50mm-9999mm |
|
Maximum Stripping Length |
Left end: Max 30mm; Right end: Max 50mm |
Left end: Max 45mm; Right end: Max 100mm |
|
Wire Cutting Length Accuracy |
±2‰ |
±1‰ |
|
Stripping Opening Accuracy |
±0.15mm |
±0.1mm (based on PVC outer insulation) |
|
Cutting Depth Setting Unit |
0.01mm |
0.01mm |
|
Maximum Stripping Layers |
6 Layers |
6 Layers |
|
Working Power Supply |
AC220V/110V 50/60HZ |
AC220V/110V 50/60HZ |
|
Overall Dimensions |
790×730×400mm |
790*730*400mm |
|
Power |
800W |
800W |
|
Weight |
Approx. 110kg |
120kg |
|
Driving Method |
Motor / Ball Screw Drive |
Motor / Ball Screw Drive |
|

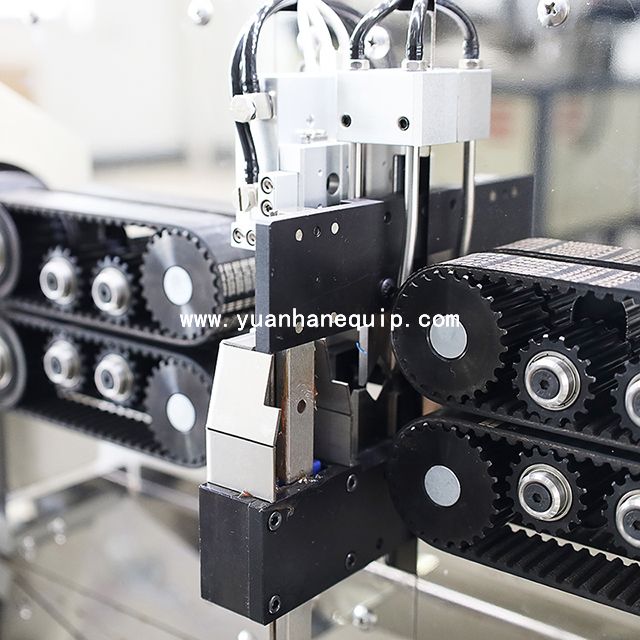

Stripping Method |
Rotating knife + Cutting and Stripping Knife |
Rotary Cutter + Cutting & Stripping Knife |
|
Tool Material |
Imported Tungsten Steel + Imported High-Speed Steel |
Imported Tungsten Steel + Imported High-Speed Steel |
|
Working Environment |
-5°C to 45°C, dry and vibration-free workbench |
-5°C to 45°C, dry and vibration-free workbench |
|
Storage Capacity |
40 sets of processing parameter data |
40 sets of processing parameter data |
|
Production Efficiency |
400-700pcs/h (depending on wire type) |
350-900pcs/h (depending on wire type) |
