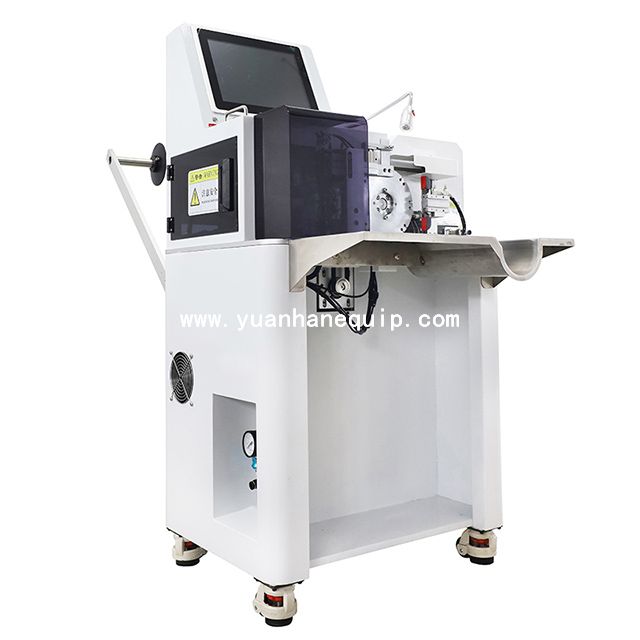

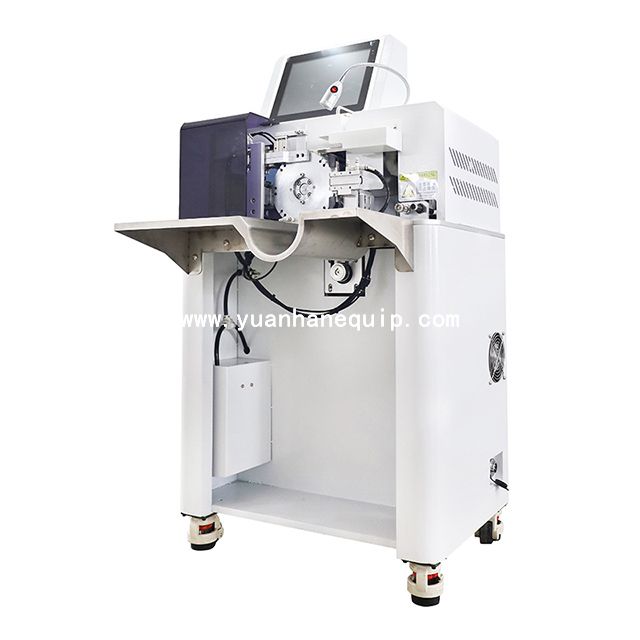

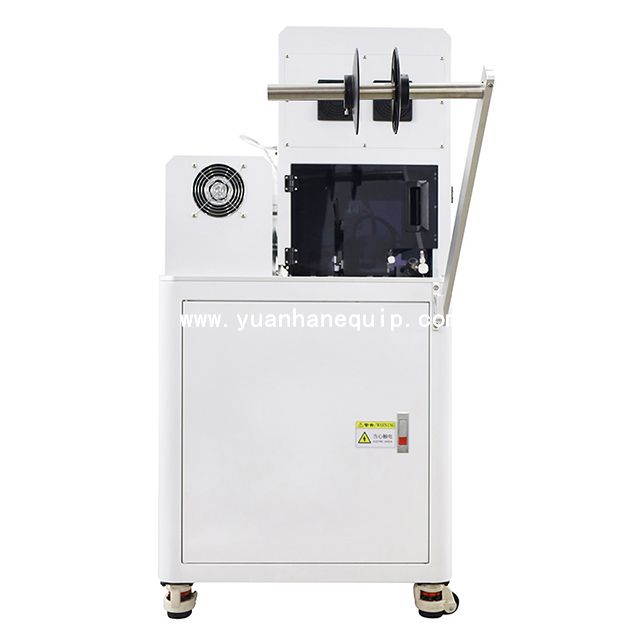

This is a semi-automatic wire harness processing machine. It can insert, mark and shrink the wire heat shrinkable tubes in one go.
○ PLC and IPC control, simple operation, stable work and high efficiency.

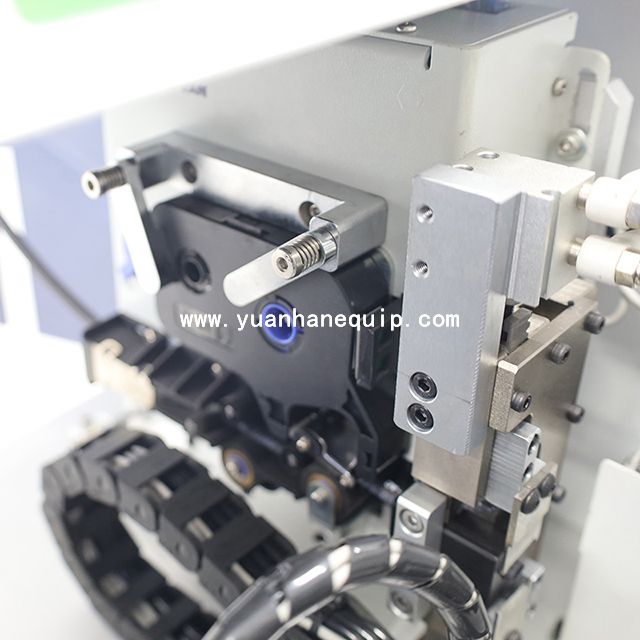

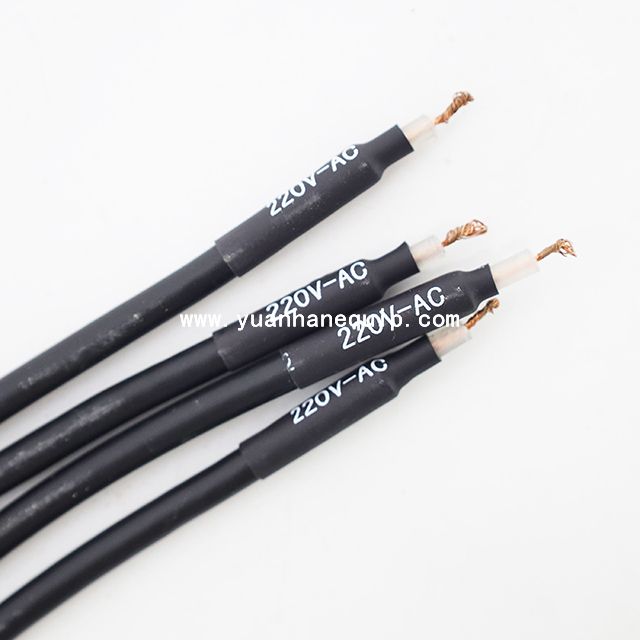

○ Through the IPC software, the printing characters can be set freely, and different labels can be set and printed on multi-core cables. The heat shrinkable tube is automatically fed and cut, the heating length can be freely set with the fixture, and the heating position can be adjusted by the positioning device.
○ The production capacity can reach 700-1500 pieces/hour (depending on the speed of the operator).
○ The equipment has high compatibility, and the processing of various specifications of wires can be realized by changing the fixture.
○ Equipped with an automatic take-up device.
○ Using thermal transfer technology, the printing font is clear, waterproof and oil-proof, the printing accuracy is 300dpi, and it has a memory function.
○ Printing color: black, white, red
○ Digital temperature control, monitor the abnormal condition of the heating device.
○ Support system one-key recovery
|Display||12-inch multi-point capacitive screen|
|Operating cycle||2.5 seconds|
|System control method||PLC and IPC|
|Heating length||6-35mm (optional fixture)|
|Heating temperature||0℃-380℃ (adjusted by thermostat)|
|Operating humidity||10%-90%RH (non-condensing)|
interference voltage: 1500Vp-p
pulse period: 1us
|Cooling method||forced air cooling|
|Dimensions||L 740*W 640*H 1270mm|
