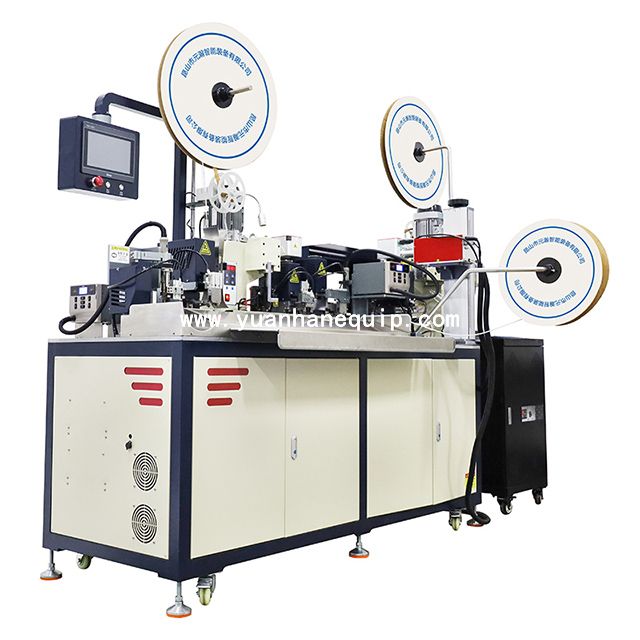

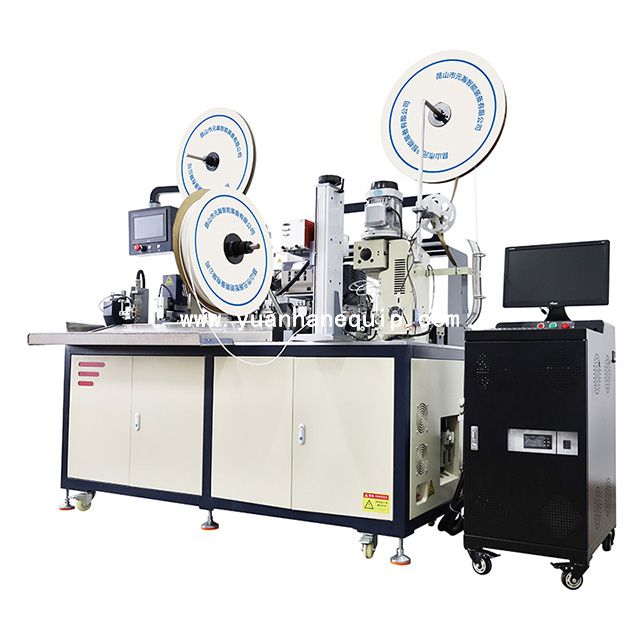

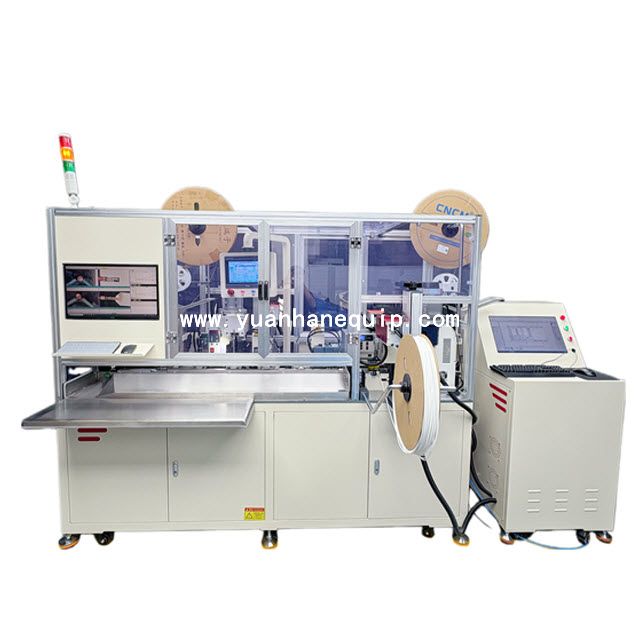

Our cable two sides crimping & shrink tube laser marking and shrinking machine is a cutting-edge solution for precision cable processing. This advanced machine is designed to streamline the crimping, marking, and shrinking processes, ensuring efficient and accurate results every time.
|
Model:
|
|
|
Brand:
|
|
○ Equipped with state-of-the-art technology, our machine offers a range of features to enhance productivity and quality. The cable two sides crimping function allows for simultaneous crimping on both ends of the cable, saving time and labor. The shrink tube laser marking capability ensures clear and permanent marking on the cable, enabling easy identification and traceability. Additionally, the shrinking function provides a secure and professional finish to the cable assembly.
○ With user-friendly controls and a robust construction, our cable two sides crimping & shrink tube laser marking and shrinking machine is built to withstand the demands of high-volume production environments. Whether you are working with small or large cables, this machine is versatile enough to handle a variety of cable sizes and types.
| Model | YH-SYSC18 |
| Wire range | 0.3-5 mm²AWG24#-AWG10# |
| Cutting length | 50mm-9999mm (set value 0.1mm unit) |
| Stripping length | 1-15mm (stripping length can be customized) |
| Crimping force | 2.0T-4.0T |
| Crimping stroke | 30mm (40mm stroke can be customized) |
| Applicable mold | general OTP mold |
| Detection device | air pressure detection, wire detection, heat shrink tube detection, crimping terminal detection, pressure monitoring (optional) |
| Control mode | single chip control |
| Function | wire cutting, single (double) end stripping, single (double) end crimping, single (double) end through heat shrink tube, single (double) end heat shrink, single (double) tube terminal (customized) |
| Efficiency | 1100-1300 (customized models are based on actual production capacity) |
| Compressed air | ≥ 0.5 MPa |
| Power supply | single-phase AC220V 50/60Hz 16A |
| Dimensions | Length 2000 * Width 750 * Height 1850 (mm) |
