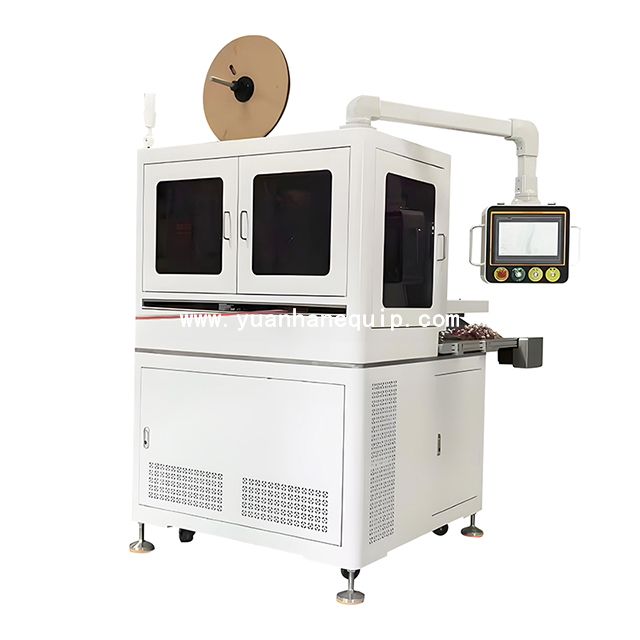

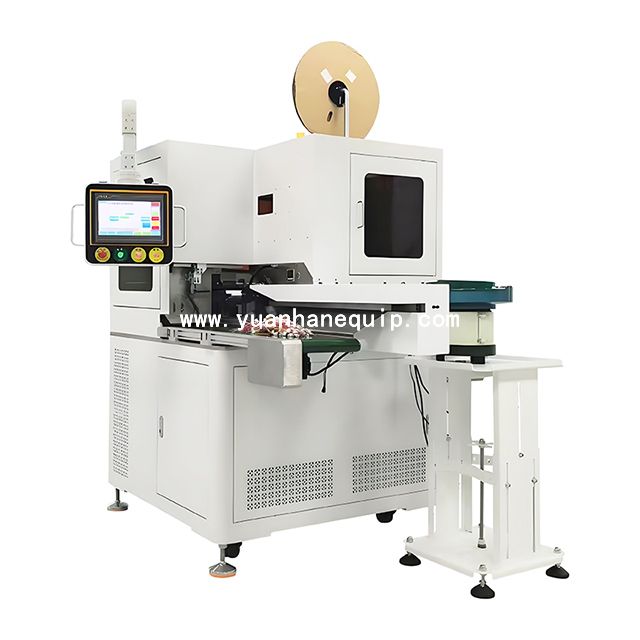

The wire single end crimping and housing connector inserting machine is a versatile and efficient tool designed for precise and reliable wire processing tasks. This machine is equipped with advanced features that make it ideal for various industrial applications.
|
Model:
|
|
|
Brand:
|
|
○ With its high-quality construction and durable components, this machine ensures long-lasting performance and consistent results. The wire single end crimping function allows for accurate and secure crimping of wires, while the housing connector inserting capability enables seamless integration of connectors into the wire assemblies.
○ This machine is designed for ease of use, with intuitive controls and a user-friendly interface that simplifies operation. Its compact size and ergonomic design make it suitable for use in a variety of work environments.
○ Whether you are working with small-scale projects or large-scale production runs, the wire single end crimping and housing connector inserting machine is a reliable and efficient solution for all your wire processing needs.
|
Model |
YH-QMCJK01 |
|
Functions |

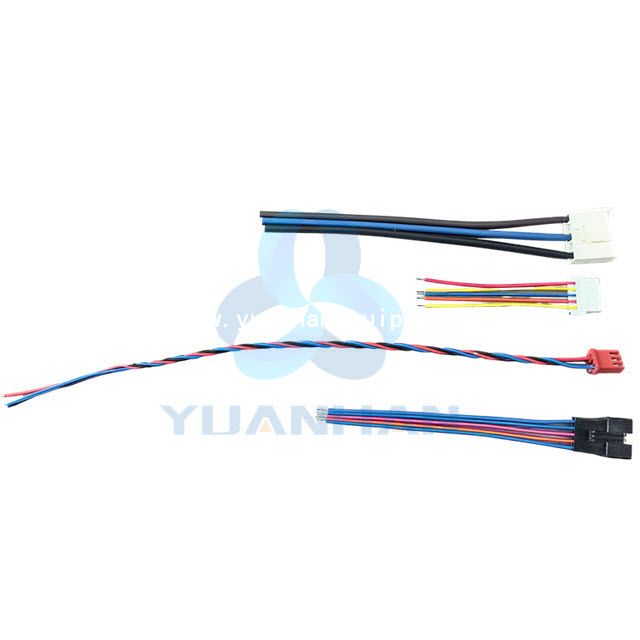

Wire cutting, stripping at both ends, crimping at one end, inserting at one end, half-stripping at one end |
|
Wire Size |
AWG#20—#28 (outer diameter of wire ≤ 2.5mm) |
|
Wire Cutting Length |
30mm-700mm (set in 0.1mm units) |
|
Cutting Length Precision |
Tolerance 0.1mm + |
|
Stripping Length |
1.0mm-8mm |
|
Stripping Length Precision |
Tolerance ± 0.1mm |
|
Crimping Machine |
2T |
|
Crimping Stroke |
30mm |
|
Universal Die |
Universal OTP die (with wire separation module) |
|
Detection Devices |
Detection of low pressure, presence/absence of wires, presence/absence of terminals, CCD detection of terminal insertion, pressure sensing device |
|
Production Efficiency |
4000-8000PCS/H (calculated for single - core wires; production capacity should be reduced for stranded wires; actual production data shall prevail) |
|
Control Method |
Single - chip microcomputer control |
|
Internal Control Voltage |
DC24V |
|
Power Supply |
Single - phase ~AC200V/220V 50HZ 10A |
|
Machine Dimensions |
Length 1100mm * Width 1100mm * Height 1600mm |
|
Compressed Air |
0.5MPa, approximately 170N/min |
|
Operating Temperature Range |
15℃-30℃ |
|
Operating Humidity Range |
30%-80%RH, no condensation |
|
Machine Weight |
Approximately 650kg |
