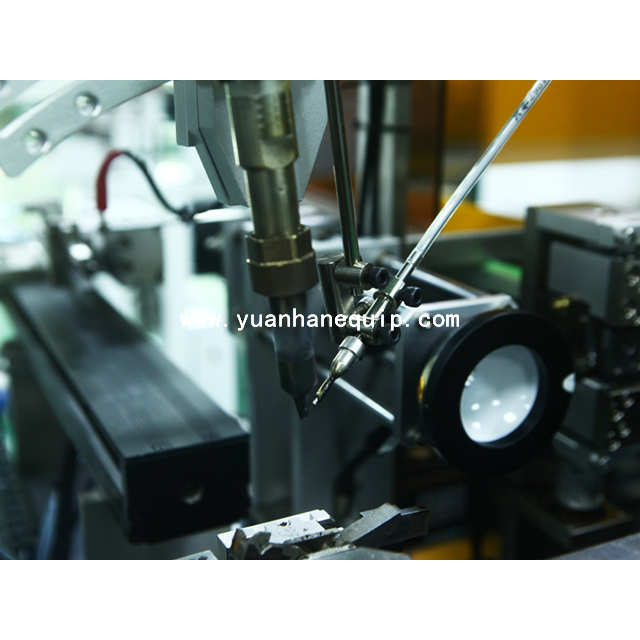

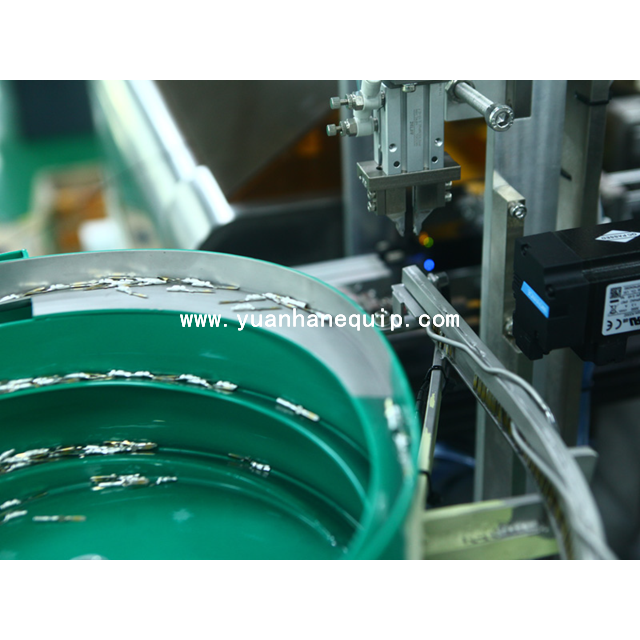

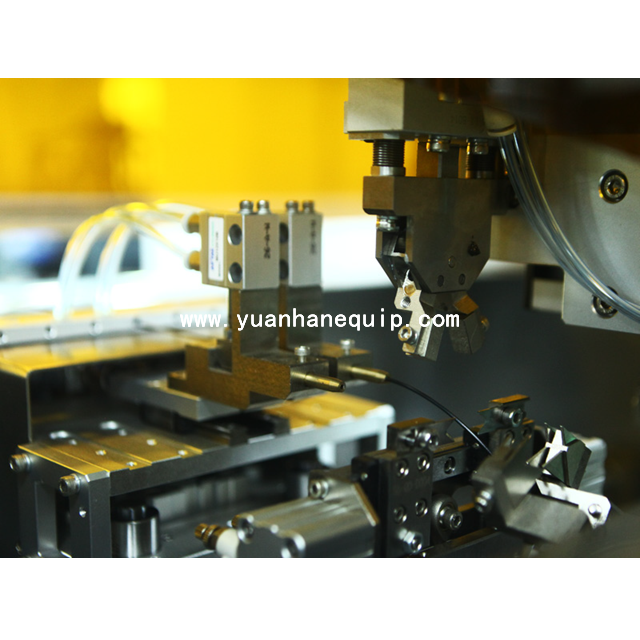

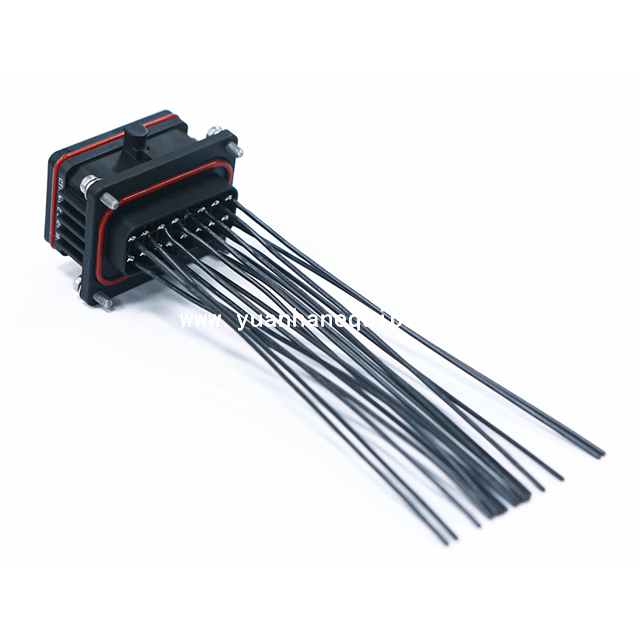

Our wire soldering and housing connector insertion machine is a cutting-edge solution for automating the assembly process. Equipped with a robot automatic loading system, this machine is capable of efficiently completing wire cutting and stripping, welding, plastic shell insertion, CCD visual inspection, and welding inspection.
|
Model:
|
|
|
Brand:
|
|
○ With precision and accuracy at its core, this machine ensures consistent and high-quality results with every operation. The CCD visual inspection feature guarantees that each component is correctly placed, while the welding inspection function ensures the integrity of the solder joints.
○ Ideal for manufacturing environments where speed, accuracy, and reliability are paramount, our wire soldering and housing connector insertion machine is a must-have for streamlining production processes and increasing overall efficiency. Trust in our machine to deliver exceptional performance and consistent results every time.
| Model | YH-HXCJK01 | |
| Power supply | AC220V 50/60Hz 10A | |
| Speed | about 2.0 seconds/line (shortest cutting) | |
| Gas source | 0.5MPa, about 170N/min | |
| Wire color | 1-8 (standard 6 colors) | |
| Cutting length | 45-9999mm (customizable) | |
| Cutting precision | ±0.5%xL | |
| Stripping length | 0-5.0mm(±0.1mm) | |
| Wire processing range | AWG#18-#28 (customizable) | |
| Crimping ability | 2T servo crimping machine x 1 set | 2T servo crimping machine x 2 sets |
| Dimensions | W1600xD1500xH1900mm | W1700xD1500xH1900mm |
| Weight | about 450kg | about 500kg |
| Optional | CCD visual inspection; pressure monitoring; waterproof plug base station. | |
