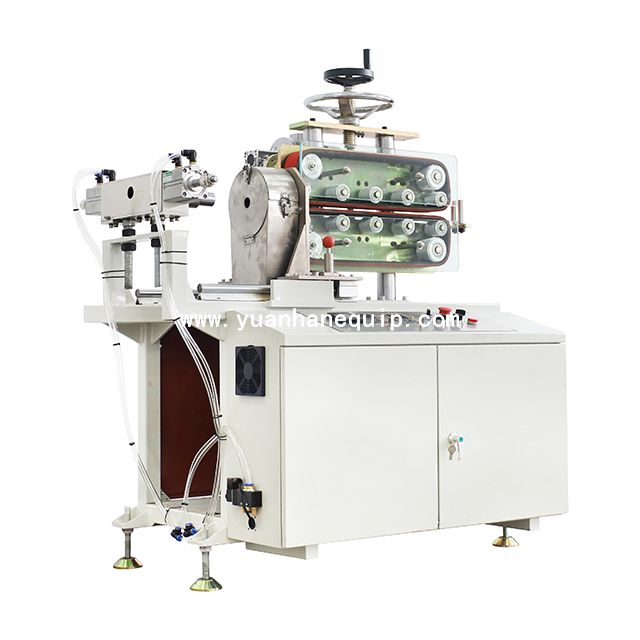

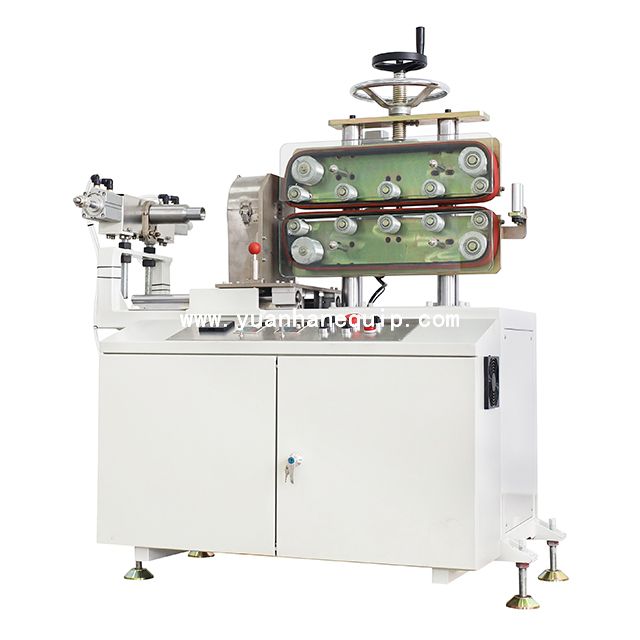

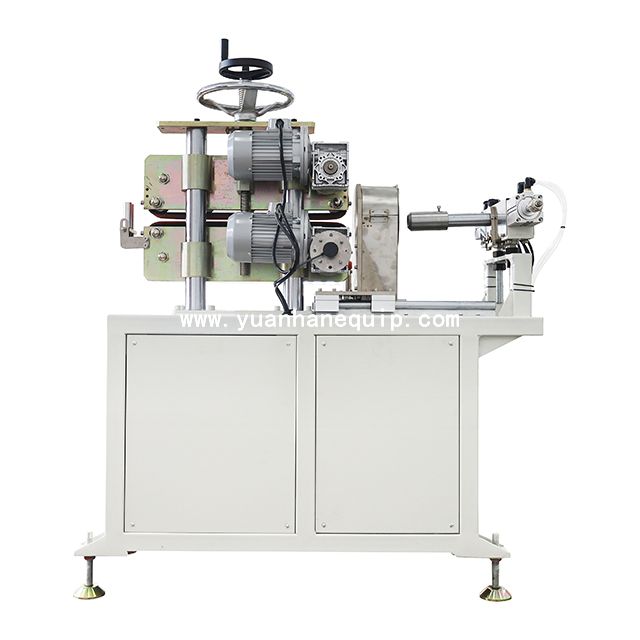

Spiral Cutting Machine for Plastic Pipes

This is a fully automatic spiral cutting machine for plastic protective tubes. It is suitable for spiral cutting of Nylon/LDPE/PU/PE tubes.

Model:	YH-LX01
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

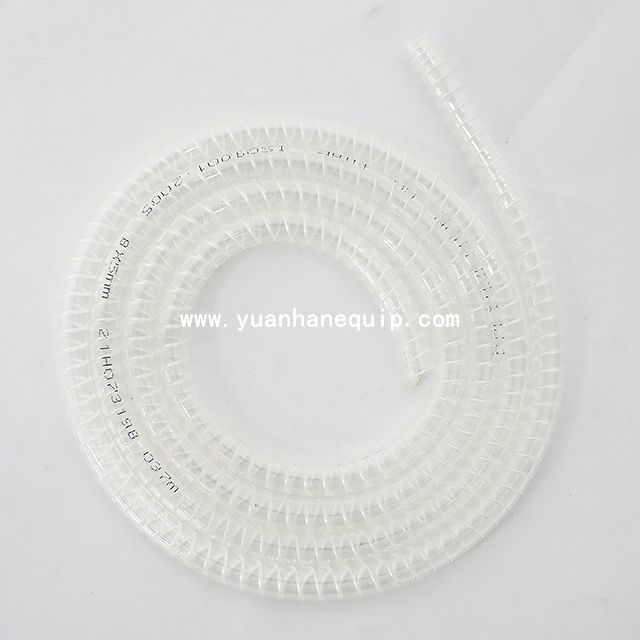

○ Function: spiral cut plastic protection tube

○ Equipment composition: belt feeder + spiral cutting machine + pneumatic cutting machine

○ Different cutting dies need to be replaced for processing pipes with different diameters

Model	YH-LX01
Traction part
Belt traction, belt effective length	600MM
Belt width	60MM
Pulley material	aluminum wheel
Linear guide belt lifting, opening and closing adjustment system
Transmission mode	double-motor direct-coupled transmission
Control drive motor power	0.55KWX2=1.1KW
Control form	variable frequency motor controller
Traction speed	0.5-20m/min
Spiral cutting part
Rotary spiral cutter device
Drive motor	0.75KW
Control method	frequency conversion speed regulation
Linear guide rail feeding device
Cutter	1 set
Pneumatic cutting part
Pneumatic cutting machine
Alloy cutter, stainless steel cutter die
Automatic meter counter function
Working voltage	3-phase 380V 50HZ
