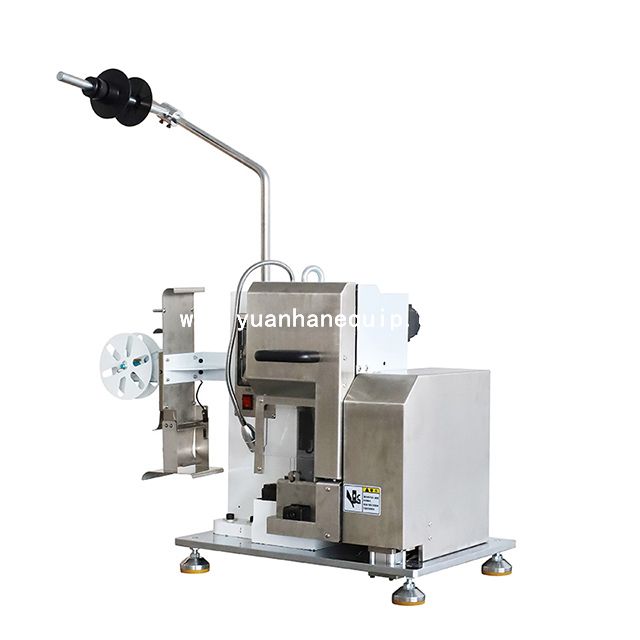

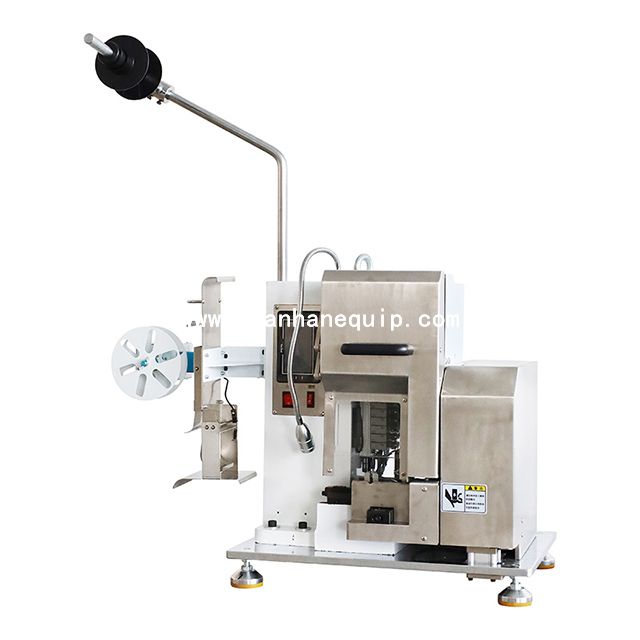

Servo Motor Driven Cable Stripping Crimping MachineServo Motor Driven Cable Stripping Crimping Machine

This is a servo motor driven cable stripping and terminal crimping machine. It is suitable for mounting European applicators such as JAM applicators, TE applicators, AMP applicators, Yazaki applicators, etc.

Model:
  • YH-BD2000
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Function: stripping and crimping

○ Modular structure, easy to adjust and maintain, divided into crimping part, stripping part, and clamping part;

○ The whole machine is controlled by PLC, all actions can be controlled separately, and debugging is convenient.

○ Suitable for European applicators, such as JAM applicators, TE applicators, AMP applicators, Yazaki applicators, etc.

Model

YH-BD2000

Power supply single-phase 200V-240V 50/60Hz
Air source 0.5-0.6mpa (please use dry and clean air)
Applicable wire diameter AWG32#-AWG20# (depending on the wire)
Wire types AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teflon, fiber wire, etc.
Stripping length 1.0mm-6.0mm
Cutting error 0.05mm-0.1mm
Position error 0.05mm-0.1mm
Terminal types open continuous terminals, horizontal terminals
Crimping force 2T
Stroke 30mm
Dimensions W730*L350*H700mm
Total weight 100KG



×
