Core Wire Stripping and Crimping Machine

Core Wire Stripping and Crimping Machine

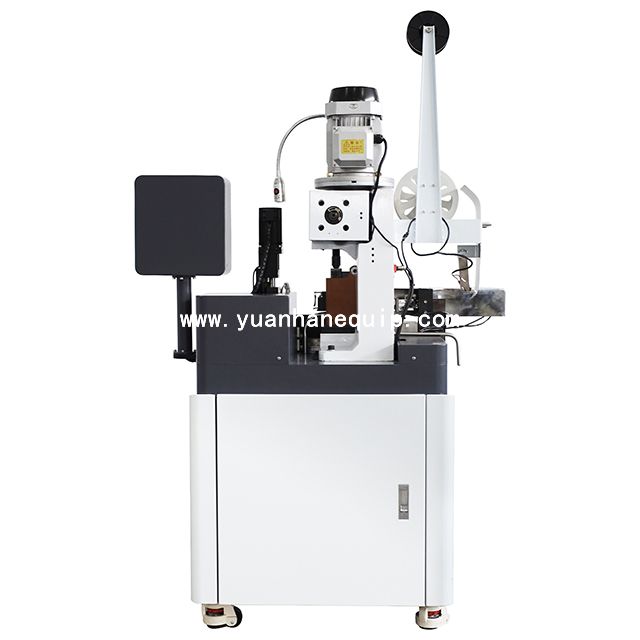

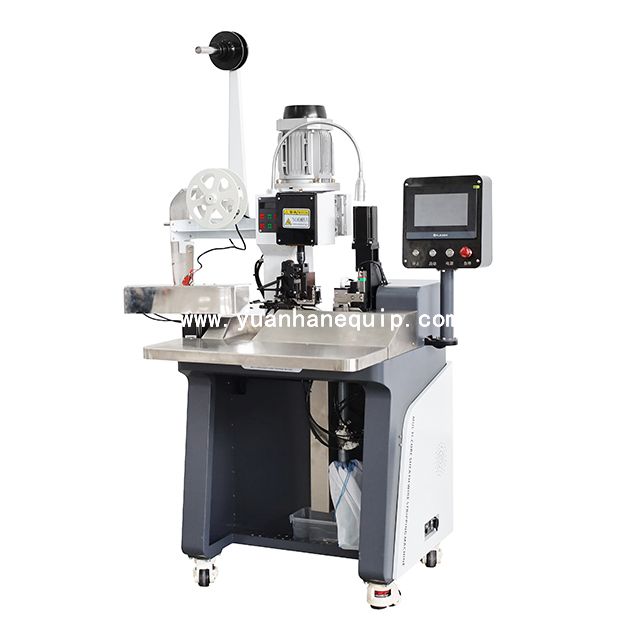

This is a semi-automatic multi-core cable stripping and crimping machine. It can complete wire feeding, inner core wire stripping, terminal crimping accurately and continuously.

Model:	YH-DXBD
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

○ Simple and intuitive color touch screen

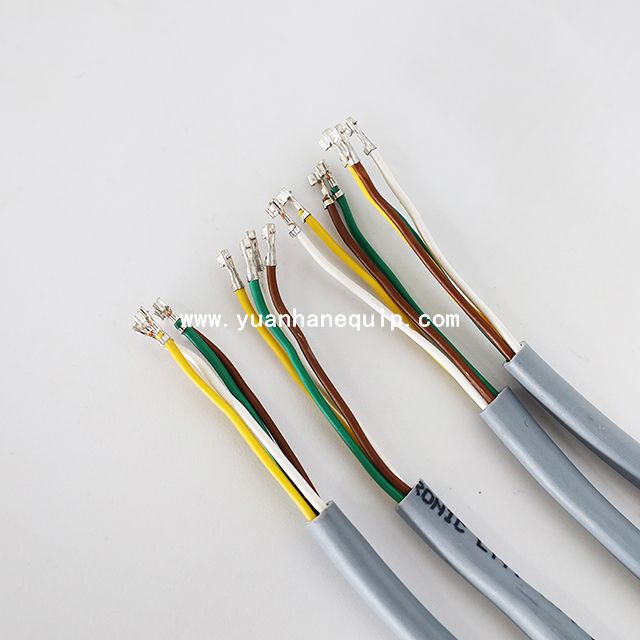

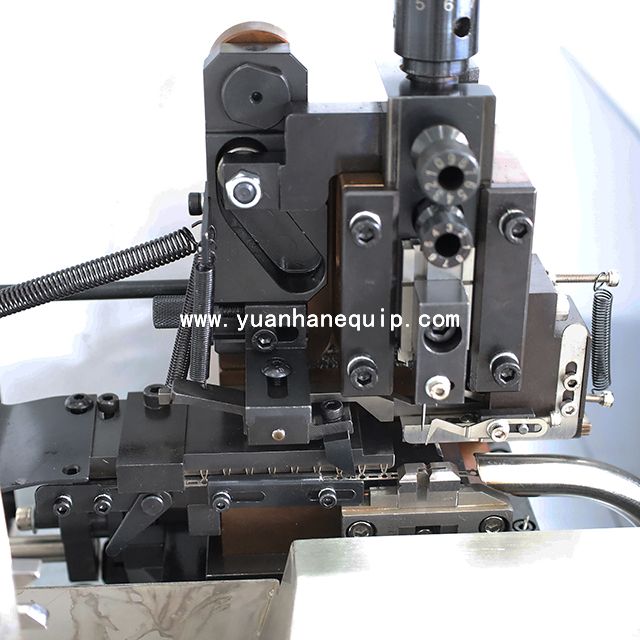

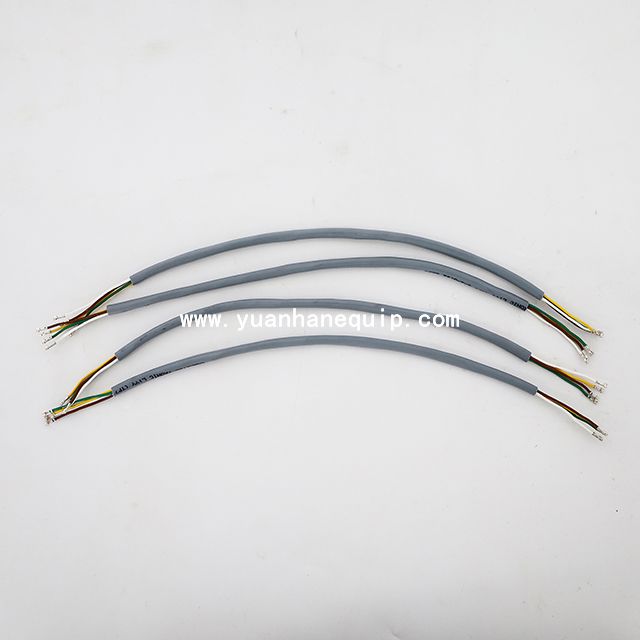

○ Function: cable inner core wires stripping and terminal crimping

○ Adopt closed-loop stepper drive, servo motor drive, and screw drive to improve accuracy and ensure high quality.

Model	YH-DXBD
Applicable wire diameter	φ0.6mm-2.5mm
Wire type	AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teflon, etc.
Core wire processing	up to 12 cores
Stripping range	2-4 cores: minimum 13.5mm; 5-15 cores: minimum 25mm
Stripping length	0.5-10mm
Stripping tolerance	0.05-0.1mm
Terminal type	open continuous terminals, horizontal terminals, straight terminals
Crimping force	2T
Power	1500W
Power supply	200V-240V 50/60Hz
Air pressure	0.4-0.6MPa
Dimensions	L850xW550xH1350mm
Weight	150KG

Get a free quote for your project. Click here.
