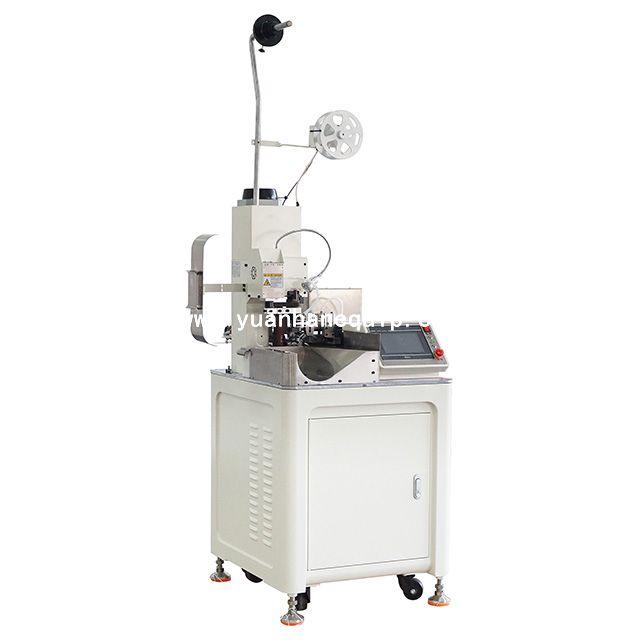

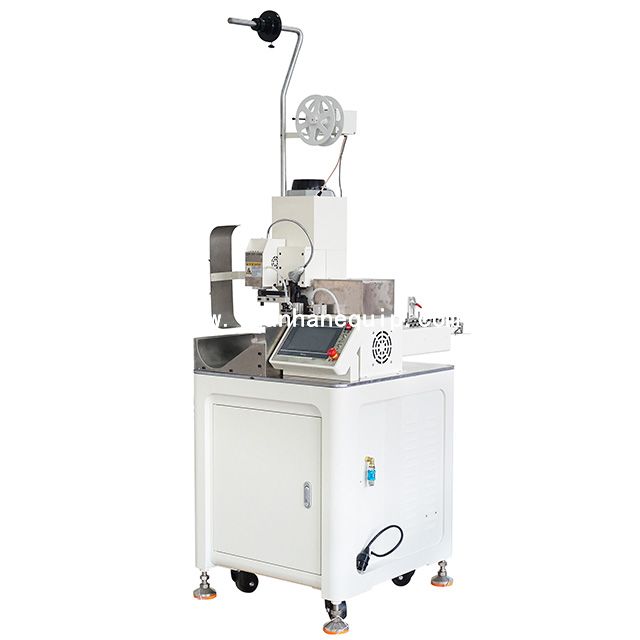

Cutting Stripping Twisting & One-end Crimping Machine

This is a fully automatic wire cutting, single-end stripping & twisting, and single-end terminal crimping machine.

Model:
  • YH-DT01
Brand:
  • Yuanhan
Share to:
Features
Technical Data
  • Function: cable cutting, single end stripping twisting and single end terminal crimping

  • Computer touch screen, easy to operate

  • Efficient stepping drive, high precision, fast speed

  • Digital debugging, easy to maintain

Model YH-DT01
Power supply AC220V/50/60HZ single phase
Capacity 2000-3000pcs/h (length within 300mm)
Processing wire range AWG14-AWG28 (< 4 sq mm)
Cutting length 45mm-9999mm (special length can be customized)
Cutting accuracy 1mm+cutting length*0.2% or less
Stripping length 1.5mm-10mm
Crimping force 3T
Air pressure 4-6kgf (clean and dry air is required)
Dimensions 650W * 700L * 1500H(mm)
Weight about 308KG
Detection device wire presence detection, terminal presence detection, wire blocking detection, air pressure detection.
×
