Wire Stripping and Twisting MachineWire Stripping and Twisting Machine

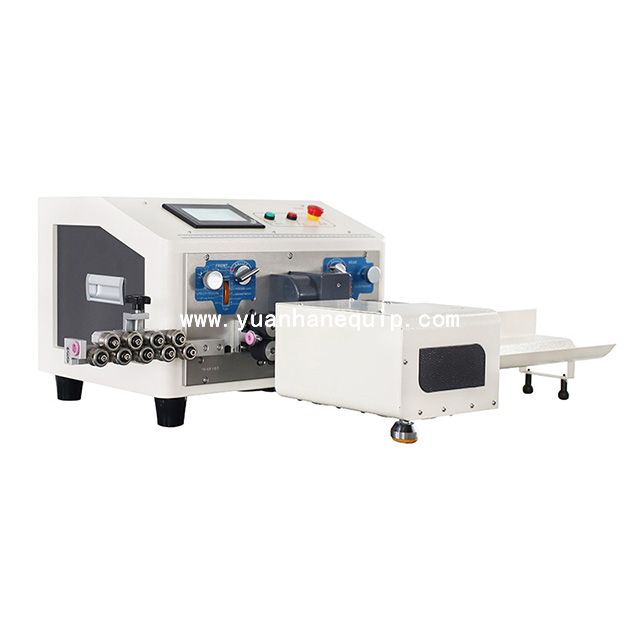

This is a fully automatic cable cutting stripping and twisting machine. It is mainly suitable for processing cables used in electronics industry, automobile and motorcycle industry, electrical appliances, motors, lamps and toys.

Model:
  • YH-904N
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

○ Single-chip self-developed motion control board

○ Full touch 4.3 inch LCD screen

○ Low Noise Hybrid Subdivision Driver

○ One-key correction of wire length error

○ Unique appearance, sleek and precise design

Model YH-904N
Function wire cutting , both ends stripping and twisting , middle stripping
Power supply AC220V50 / 60HZ
Core wire processing 2*(0.3-2.0mm 2 ) + twisting
Outer jacket stripping length side A: 0.1-250mm, side B: 0.1-70mm
Core wire stripping length side A: 0.1-30mm, side B: 0.1-30m
Middle stripping sections customizable
Cutting length 0.1mm-99999.9mm
Stripping accuracy Silent Hybrid Stepper Motor 0.01mm
Blade material imported tungsten steel/high speed steel
Power 980W
Production capacity 500-1500/h
Dimensions 565mm * 385mm * 370mm
Weight 43kg
