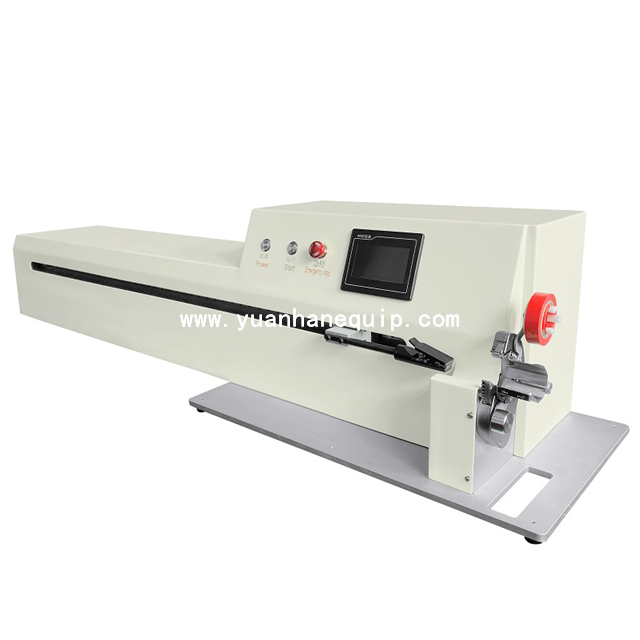

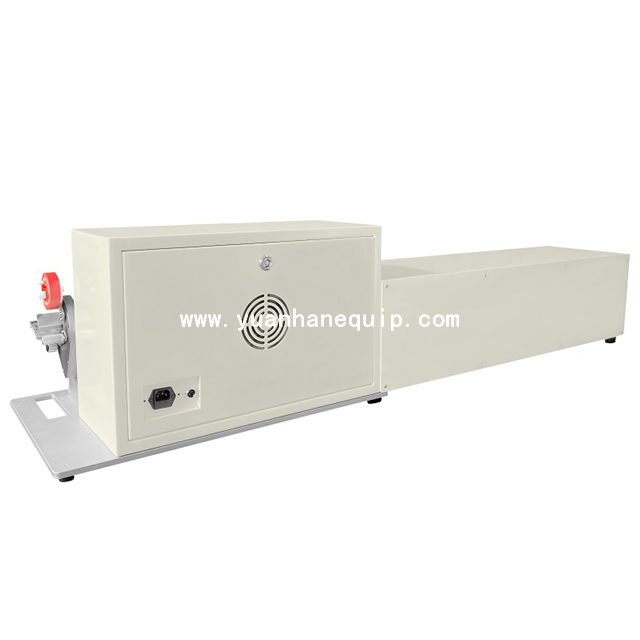

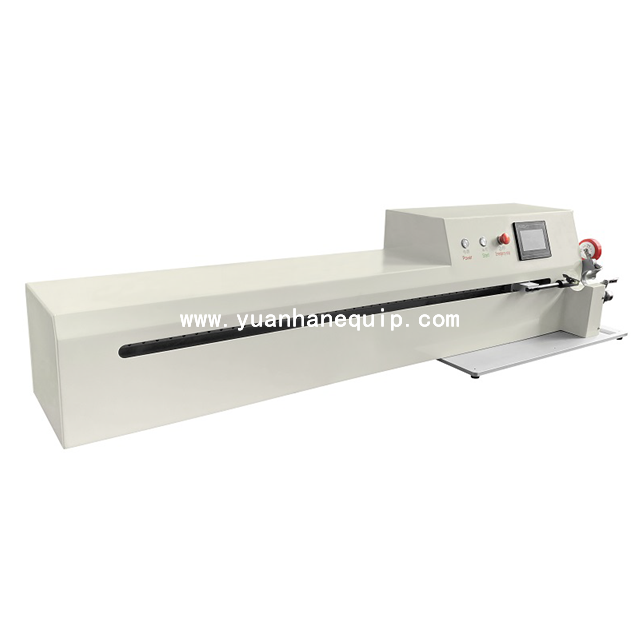

The automatic traction tape wrapping machine is designed to simplify the process of wrapping tape onto wire harnesses, ensuring precision and efficiency. The machine is equipped with advanced automation technology for seamless operation and consistent wrapping results.
|
Model:
|
|
|
Brand:
|
|
○ All actions of this machine are controlled by motors. The whole machine does not need an air source. The motor is smoother, more stable and low - noise.
○ It is suitable for the wrapping work of the tape after intermediate indentation and pressure connection.
○ The length of the tape is adjusted digitally, which is convenient, fast and accurate.
○ The machine has stable wrapping quality and high efficiency, which can reduce the operation intensity.
|
Model |
YH-CR10M |
|
Power supply |
220V~50 - 60Hz |
|
Operation page |
High - definition touch screen operation |
|
Tape Specifications |
<20mm (customizable) |
|
Inside diameter specification |
Standard 25/32/38; can be customized to 76 or other specifications |
|
Dimension |
L1532W380H363MM (excluding protrusions) |
|
Weight |
42KG |
|
Applicable wire diameter |
3 - 40mm |
|
Winding length |
1 meter (unlimited, customized support) |
|
Winding speed |
10R/s |
|
Type of adhesive tape |
Cloth - based, electrical tape, PVC tape, acetate tape, etc. |
|
Drive method |
Motor |
|
Winding method |

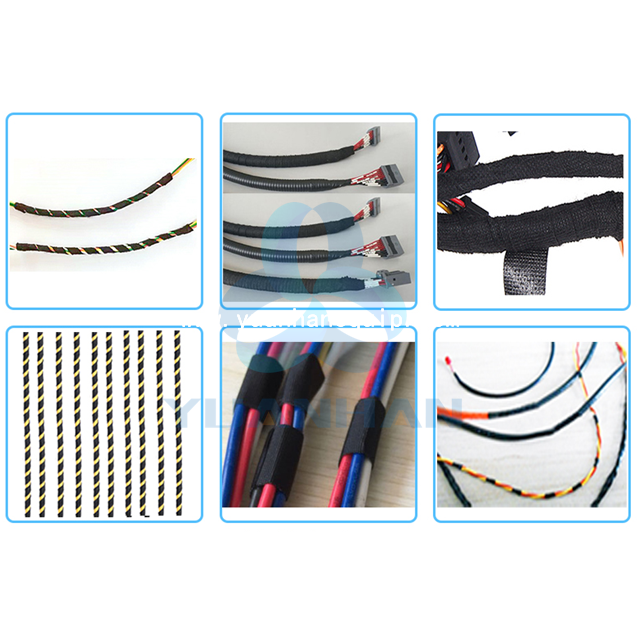

Full winding, point winding, flower winding, interval winding |
