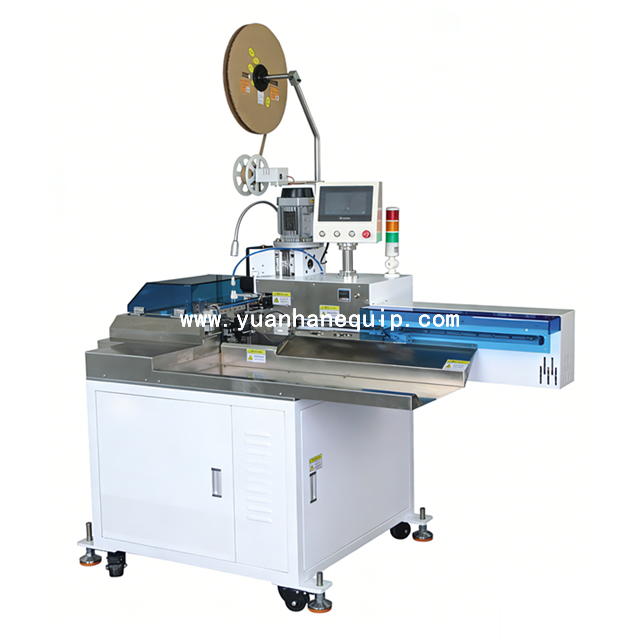

This fully automatic five-wire single-head terminal crimping and tinning machine can complete terminal crimping and tinning for five wires in a single process. Featuring high efficiency and stable performance, it significantly improves the productivity of wire harness processing.
|
Model:
|
|
|
Brand:
|
|
○ Integrates terminal crimping and wire tinning functions to streamline production flow and reduce manual operation.
○ Stable performance with reliable operation, ensuring consistent crimping and tinning quality for long-term production.
○ High processing efficiency, greatly improving productivity and output in wire harness manufacturing.
○ Compact structure, user-friendly operation, and easy maintenance, suitable for mass production in wiring harness workshops.
○ Wide compatibility with various wire specifications and terminal types, meeting diversified processing demands.
|
Model |
YH-ZX5505P |
|
Power Supply |
AC220V 50/60HZ, Single Phase |
|
Air Source |
0.5~0.7MPa |
|
Functions |
Automatic wire feeding, fixed-length meter counting and cutting, full stripping/semi-stripping at both A and B ends; |
|
Applicable Wire |
#20AWG - #32AWG (Other specifications can be customized) |
|
Cutting Length |
30 ~ 800mm (Other specifications can be customized) |
|
Stripping Length |
End A: 0.5 ~ 6mm; End B: 0.5 ~ 9mm (Other specifications can be customized) |
|
Core Wire Twisting Length |
3.5 - 9mm |
|
Tinning Length |
End B: 0.5 - 9mm |
|
Detector |
Low air pressure alarm, wire presence detection alarm, motor alarm |
|
Machine Dimension |
L1210*W800*H1370mm (Excluding protrusions) |
|
Weight |
Approx. 400KG |
