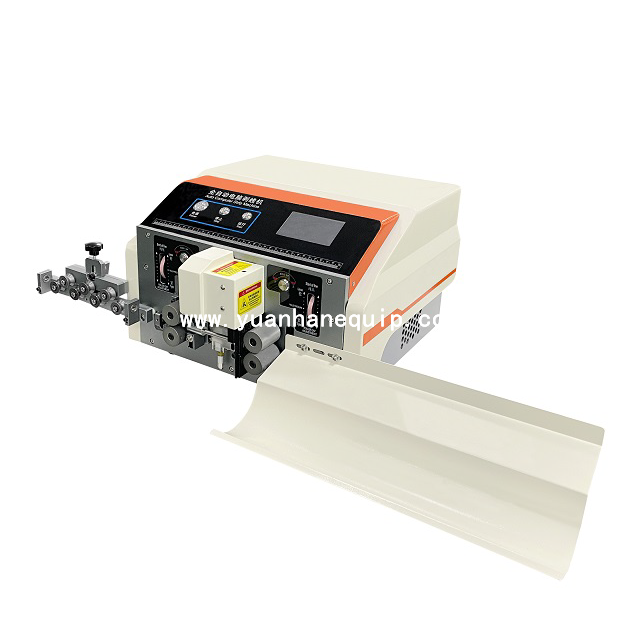

Our thin wire cutting and stripping machine is designed to efficiently and accurately cut and strip thin wires with precision. This machine is equipped with advanced technology to ensure consistent and high-quality results every time.
|
Model:
|
|
|
Brand:
|
|
○ Ability to cut and strip thin wires with precision
○ Adjustable cutting and stripping lengths for customized results
○ User-friendly interface for easy operation
○ Durable construction for long-lasting performance
○ Safety features to protect operators during use
○ Compact design for space-saving convenience

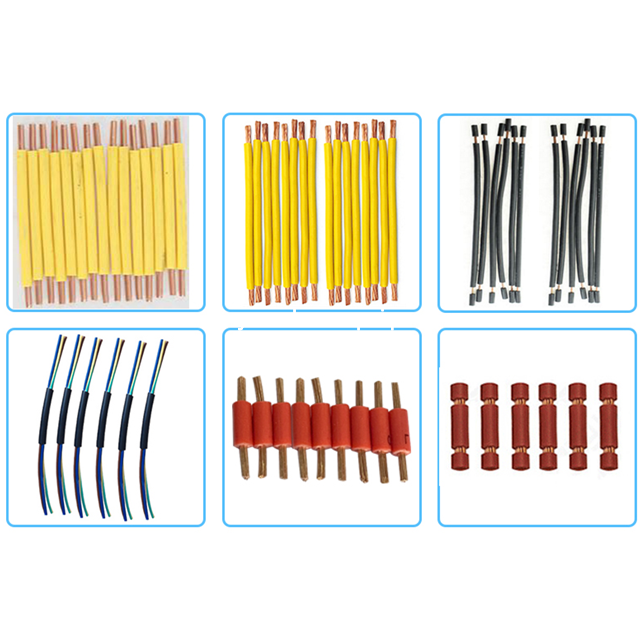

○ Wire types: electronic wires, silicone wires, Teflon wires, glass woven cotton, isolation wires, coaxial wires, sheathed wires, etc.
| Model | YH-810C |
| Power supply | 220V 50-60Hz |
| Operation page | 5-inch touch screen display |
| Cutting tolerance | 0.002*L-MM |
| Outer jacket stripping length |
front end 0-30mm rear end 0-30mm |
| Cutting length | 0.1-99999.9mm |
| Scope of application | within 0.1-6 mm² |
| Guiding pipe | 3/4/5/6 |
| Drive mode | 4-wheel drive |
| Production capacity | bout 4000-7000 pcs (depending on the wire material) |
| Dimension | L400mm*W285mm*H355mm (excluding protrusions) |
| Weight | 30kg |
