Kunshan Yuanhan Electronic Equipment Co., Ltd.
Kunshan Yuanhan Electronic Equipment Co., Ltd.

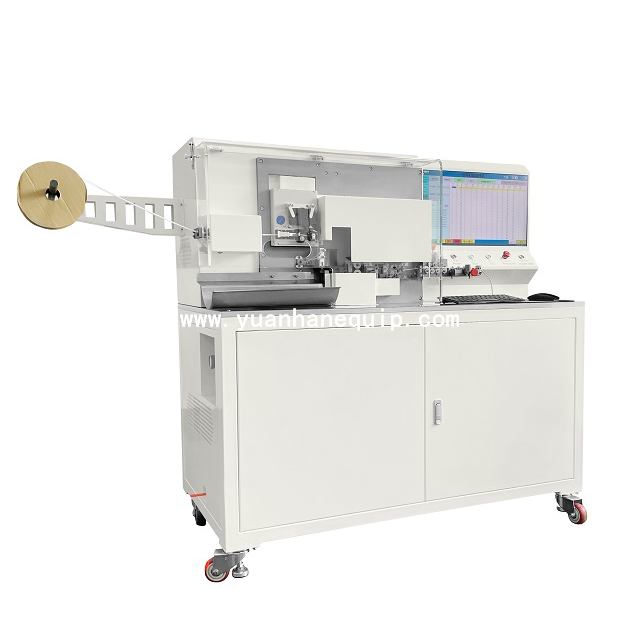

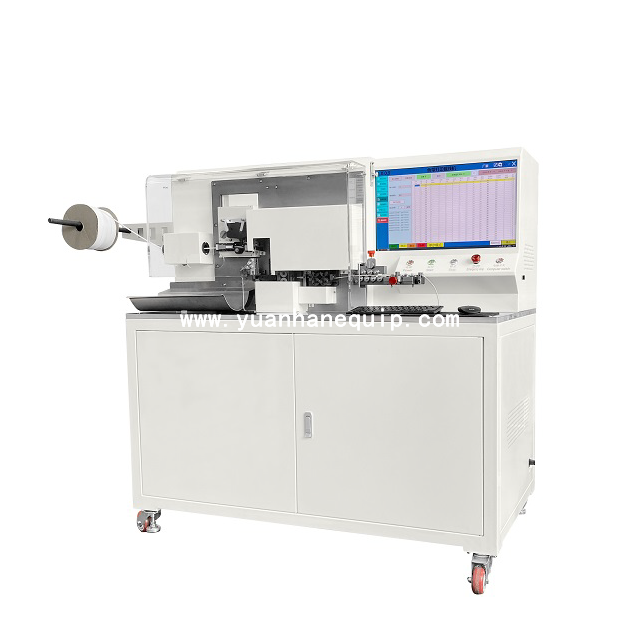

Introducing the cable number tube marking inserting and cutting machine (MES version), a cutting-edge solution for efficiently marking and cutting cable number tubes. This advanced machine is designed to streamline the cable marking process, ensuring precision and accuracy every time.
|
Model:
|
|
|
Brand:
|
|
○ The cable number tube marking inserting and cutting machine (MES version) is equipped with a range of features to enhance productivity and quality. With its user-friendly interface, operators can easily input marking information and adjust settings as needed. The machine is capable of marking and cutting cable number tubes with speed and precision, reducing the risk of errors and ensuring consistent results.
○ Designed for use in manufacturing and production environments, the cable number tube marking inserting and cutting machine (MES version) is built to withstand heavy-duty use. Its durable construction and reliable performance make it a valuable asset for any operation looking to improve efficiency and quality in cable marking processes.
○ The cable number tube marking inserting and cutting machine (MES version) is a top-of-the-line solution for businesses seeking to optimize their cable marking operations. With its advanced features and robust design, this machine offers unmatched performance and reliability for all your cable marking needs.
|
Model |
YH-860HM |
|
Power supply |
220V 50-60Hz |
|
Operation page |
Industrial computer + 21.5 - inch display |
|
Dimension |
L1720W680H1301 (excluding protrusions) |
|
Weight |
230kg |
|
Stripping length |
Front end 0-30mm |
|
Cutting length |
0.1 - 9999.9mm |
|
Wire outer diameter |
Within 0.1-6 square millimeters (customization supported) |
|
Number Length |
Total length of both ends 60mm (customization supported) |
|
Blade material |
Imported tungsten steel/high - speed steel |
|
Applicable conduit |
Customized as required |
|
Driving mode |
Belt drive |
|
Number tube heating |
With built - in sleeve heating function for clearer printing and tube threading |
|
Control mode |
Standard computer, USB interface |
|
Print Unit |
First and last number tubes printed at one time |
|
Direction of number tube |
Double - head tube threading, supports sleeve heating and antifreezing |
|
Direction of number tube |
The front and back of the number tube can be freely set to meet the wiring standards |
|
Position of sleeve number |
The position of the number tube can be adjusted freely |
|
Capacity |
About 800 pieces/h (depending on the wire type) |
|
Function |
Cutting/stripping at both ends (full stripping/half stripping), tube threading/tube cutting/ribbon printing |
