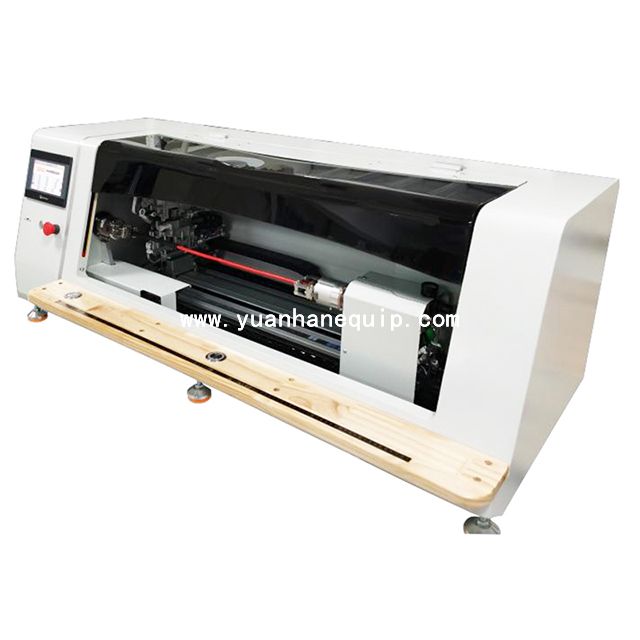

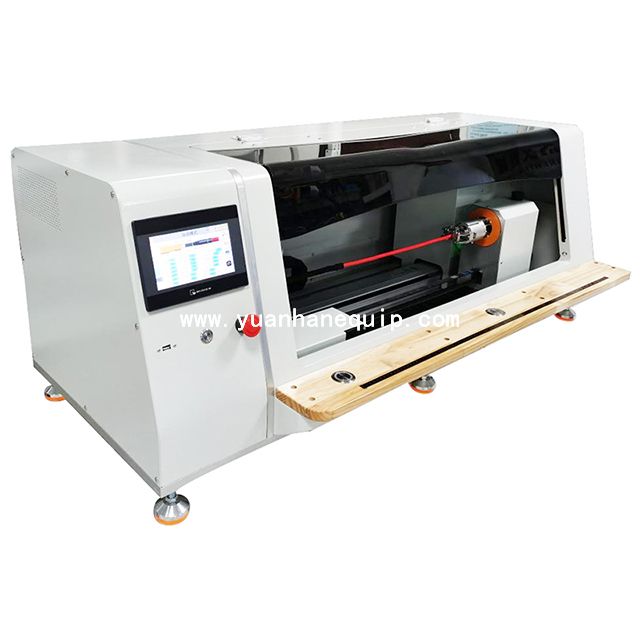

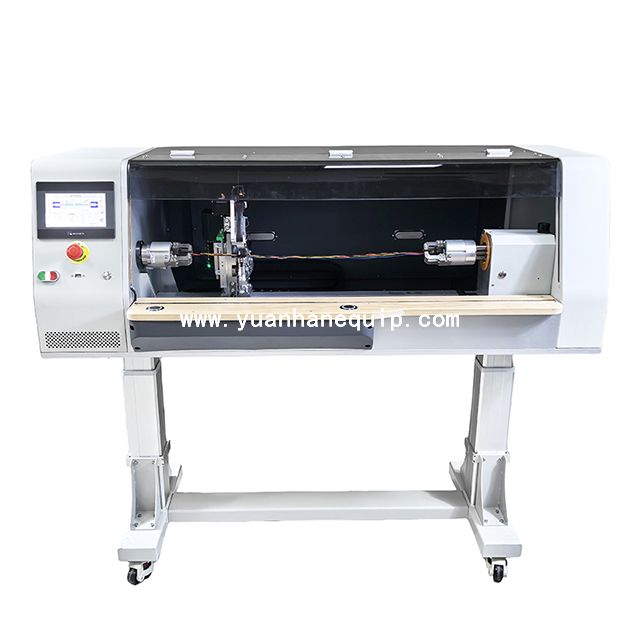

This machine enables automatic tape wrapping for straight non-branched wire harnesses. Key parameters such as wrapping length, tape overlap ratio and start/end section processes are easily set via touch screen.
|
Model:
|
|
|
Brand:
|
|
○ Special structural design ensures the tape can be wrapped to 10mm at the left end and 30mm at the right end of the sheath.
○ Adopts dedicated design to keep the wire harness non-twisted during the taping process.
○ Taping turns, wrapping length, rotating speed, horizontal moving track and taping effect are all adjustable and settable on the display screen.
○ Full automatic operation with automatic tape winding, automatic head positioning and automatic tape cutting. Operators only need to load and unload wire harnesses manually.
| Model | YH-JC860 |
| Dimensions | 1500*660*580mm |
| Rated Voltage | 110V/220V (AC) (±10%) |
| Outer Diameter of Tape Roll | ≤180mm |
| Taping Length | ≤650mm |
| Wire Harness Diameter | ≤10mm |
| Taping Speed | ≤1000 RPM |
| Applicable Tape | 9/19mm width, PVC or cloth-based tape |
