Kunshan Yuanhan Electronic Equipment Co., Ltd.
Kunshan Yuanhan Electronic Equipment Co., Ltd.

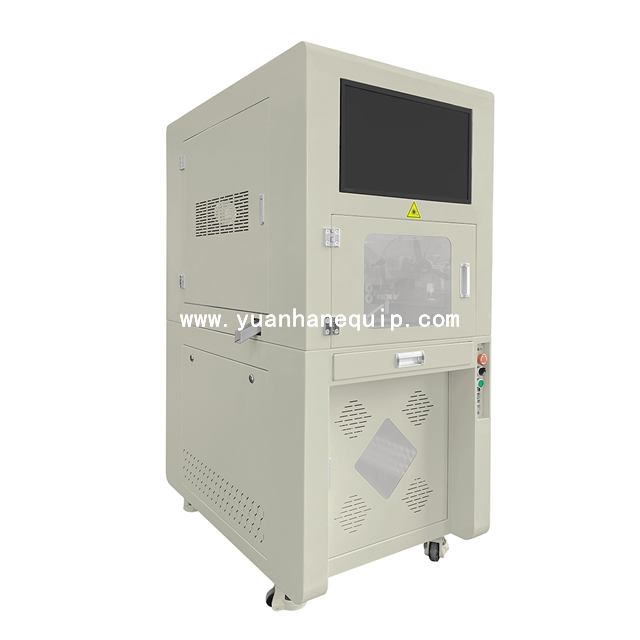

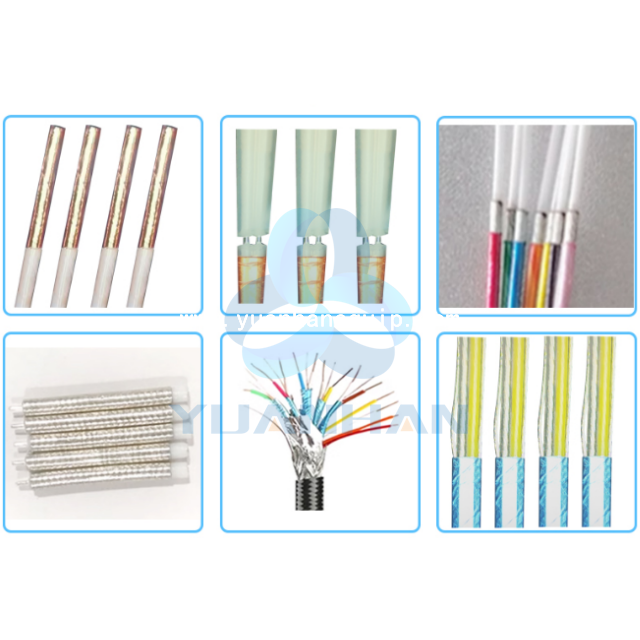

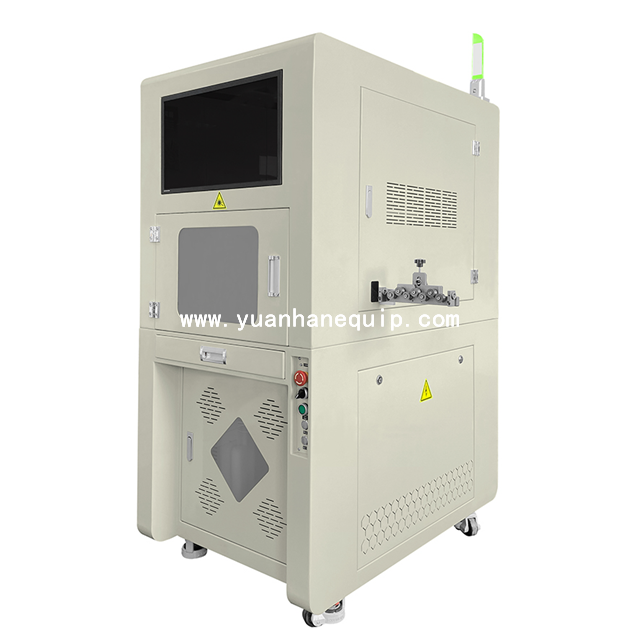

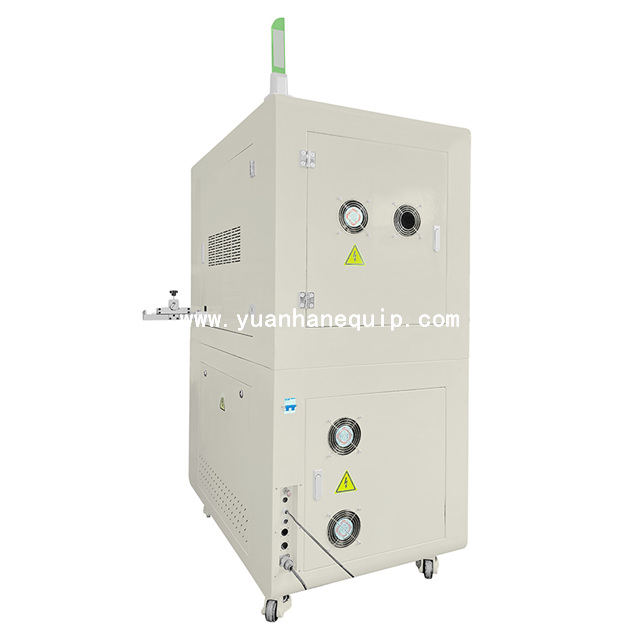

Our cable two sides laser stripping machine is designed to cater to the stripping needs of electronic wires, silicone wires, Teflon wires, glass woven cotton, isolation wires, coaxial wires, sheathed wires, and more.
|
Model:
|
|
|
Brand:
|
|
○ Equipped with state-of-the-art laser technology, this machine ensures accurate and efficient stripping of wires on both sides. The high precision laser beam allows for clean and precise cuts, minimizing the risk of damage to the wires. This results in improved productivity and reduced material wastage.
○ The cable two sides laser stripping machine is easy to operate and can be customized to suit specific wire stripping requirements. Its user-friendly interface and intuitive controls make it suitable for both experienced operators and beginners. Additionally, the machine is built to withstand continuous use in demanding industrial environments, ensuring long-lasting performance and reliability.
○ Whether you are working with electronic components, telecommunications cables, or automotive wiring, our cable two sides laser stripping machine is the ideal solution for your wire stripping needs.
|
Model |
YH-A822JG |
|
Power supply |
AC220V/50HZ |
|
Dimensions |
L753 x W1189 x H1653mm (excluding protrusions) |
|
Weight |
Approximately 180kg |
|
Peeling length |
Front end: 0 - 300mm |
|
Guiding pipe control method |
Motor |
|
Cutting length |
0.1 - 99999.9mm |
|
Scope of application |
within 10 mm² (Customization is supported.) |
|
Laser type |
Metal Radio - frequency Laser |
|
Laser wavelength |
10640NM |
|
Working method |
Intermittent loading, continuous operation |
|
Working width |
100mm*100mm |
|
Continuous working time |
8 hours |
|
Power Consumption |
<4kw |
|
Capacity |
Approximately 600 - 1000 pieces/hour (depending on the wire) |
|
Functionality |
Cutting / outer skin stripping (full stripping / half - stripping) middle stripping |
|
Accessibility |
Optional: Pay - off stand / take - up reel |
