Kunshan Yuanhan Electronic Equipment Co., Ltd.

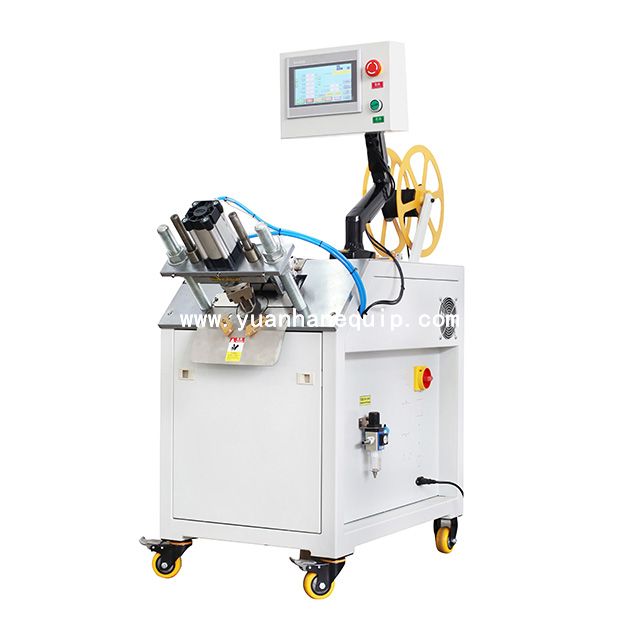

Ultrasonic Webbing and Rope Cutting MachineUltrasonic Webbing and Rope Cutting Machine

This is an ultrasonic cutter for webbing and rope. By changing the cutting die, the machine can realize special-shaped cutting according to customer requirements.

Model:
  • YH-CR80
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Cutting material: nylon, PP polypropylene, cotton, polyester, spandex, etc.

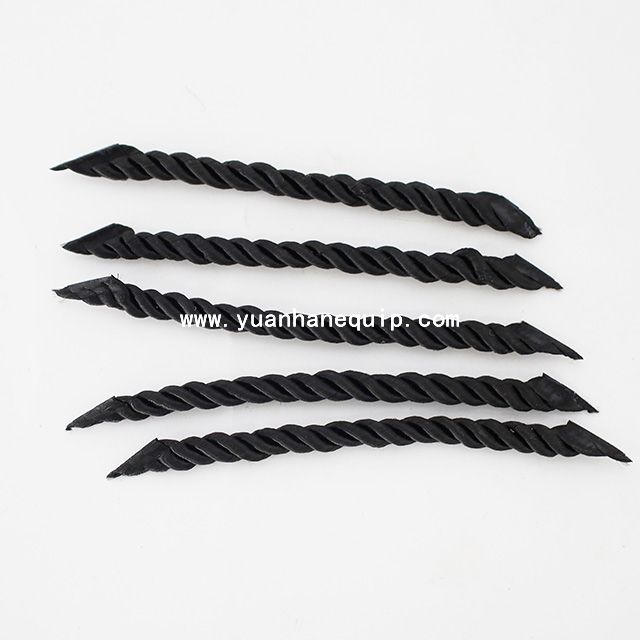

○ Cutting types: rope, printed ribbon, elastic cord, epoxy webbing, Velcro, velvet ribbon, etc.

○ Cutting specifications: length 1-10000mm, width 1-80mm, thickness 0.1-8mm

○ The cutter die can be customized according to customer requirements to realize special-shaped cutting.

○ A rotary knife device can be installed, which is suitable for cutting trapezoids, parallelograms, etc.

○ The cutting edge is not loose, soft and no hard edge.

○ Multiple strips can be cut at the same time, and the cutting length deviation can be controlled within 0.3%.

○ Environmentally friendly and low power consumption

Model YH-CR80
Frequency 15KHz
Voltage 220V
Power 2600W
Weight 120KG
Dimensions 980x500x1000mm
Air source ≥0.6MPa
Machine efficiency
Cutting length Cutting efficiency
0-100mm 80-130pcs/m
100-300mm 40-90pcs/m
300-500 20-70pcs/m
×
