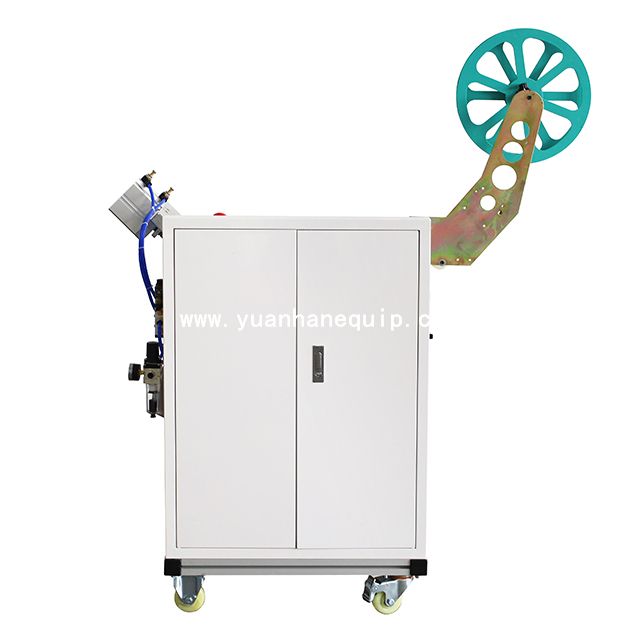

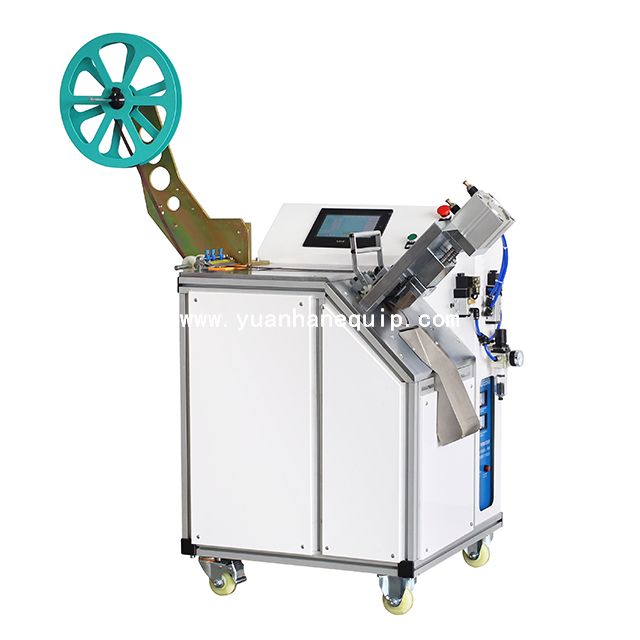

Ultrasonic Nylon Webbing Tape Shape Cutting Machine

Ultrasonic Nylon Webbing Tape Shape Cutting Machine

This ultrasonic cutting machine is suitable for cutting nylon webbing tapes, cotton webbing tapes, gift wrapping tapes, silk ribbons, woven belts, etc.

Model:	ZCUT-80W
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

○ Easy to operate, no need to change the die

○ Servo motor drive, no noise

○ Speed: 120pcs/min

○ Using Swedish titanium steel knife: the cut is complete and smooth, no burrs, no loose edges, and the shearing effect is excellent.

○ PLC console, automatic feeding, computer counting, high precision, fast speed, and high efficiency, can cut multiple pieces at the same time.

○ Suitable for cutting webbing tapes, gift wrapping tapes, satin ribbons, etc.

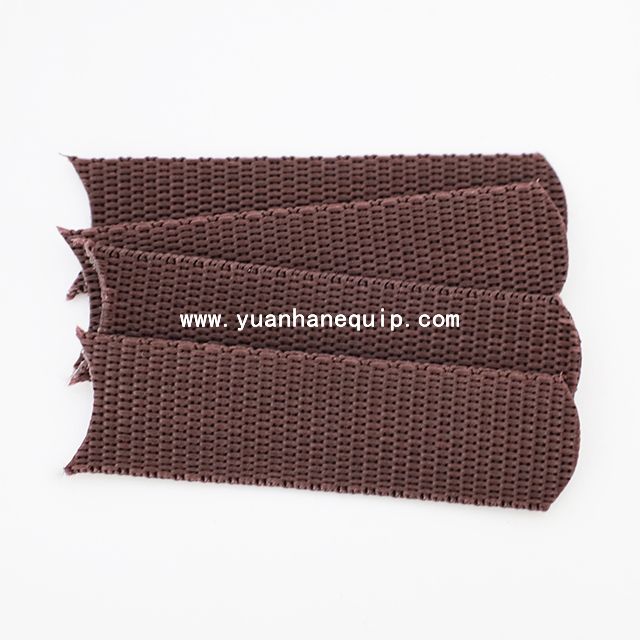

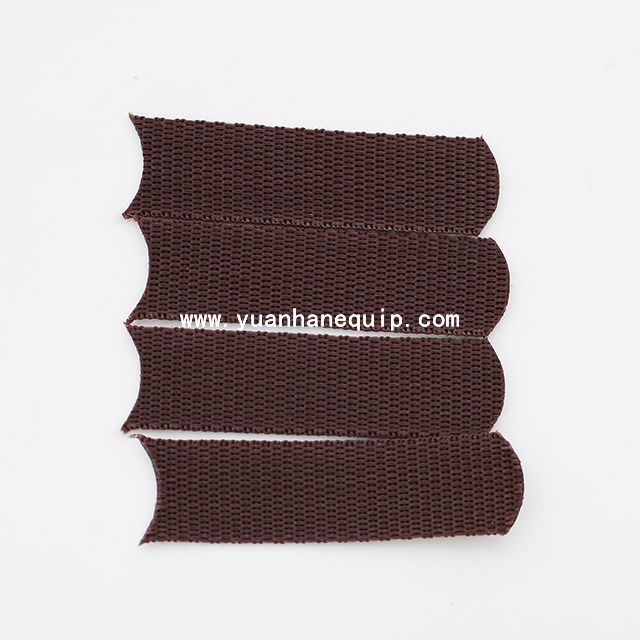

○ Cutting shapes: straight cutting, oblique cutting, dovetail and other shapes

○ Good cutting effect, low energy consumption, low noise, sustainable work more than 100 hours

Model	ZCUT-80W
Frequency	18KHZ
Voltage	220V
Air source	0.5-0.6MPa
Power	2.4KW
Size	1,050600850MM
Weight	120KG
Speed	120pcs/min
Max. cutting width	70mm
Cutting length	1-99,999mm
Knife properties	No difference for cold or hot knife

Get a free quote for your project. Click here.
