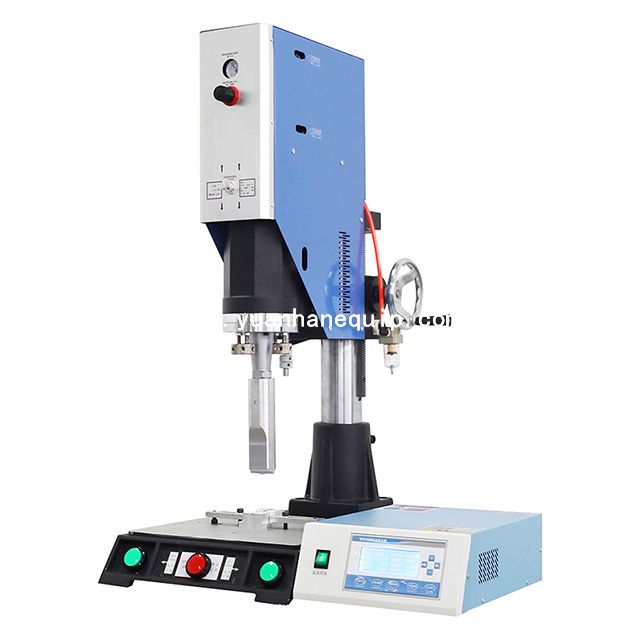

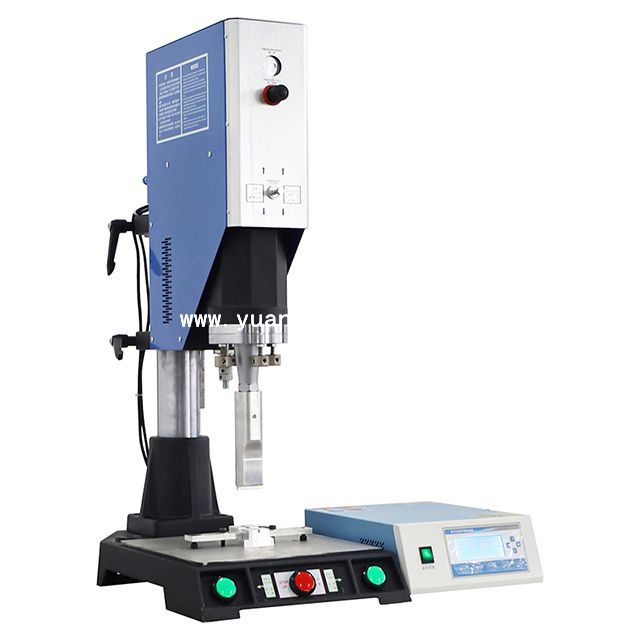

Ultrasonic Plastic Welding Machine

The working principle of the ultrasonic plastic welding machine is to use the peak position of the longitudinal wave to transmit the amplitude to the gap of the plastic part. Under the action of pressure, the molecules of two plastic parts or other parts in contact with the plastic parts collide with each other and melt, so that the contact points are fused, so as to achieve the purpose of processing.

Model:	YH-SL01
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

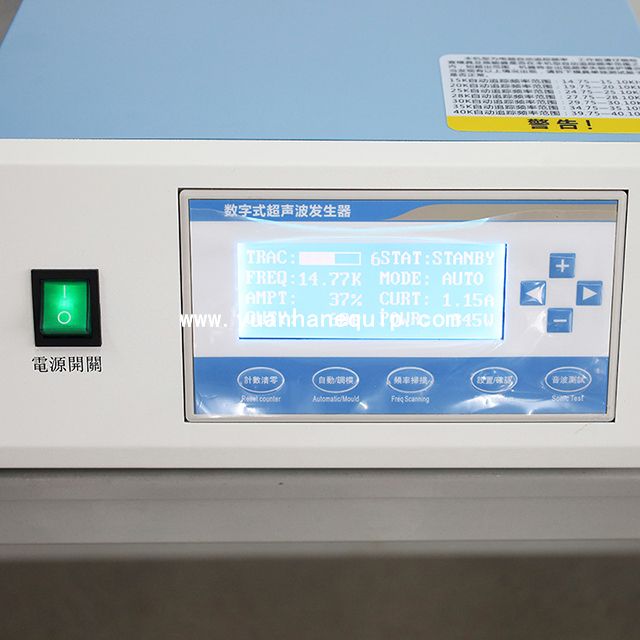

○ Automatic frequency tracking

○ Use AirTAC pneumatic components

○ Fast welding, 0.01-0.99 seconds/time

○ The welding effect is exquisite and the welding quality is high.

○ Applications:

Suitable for spot welding with a diameter of 1-15MM

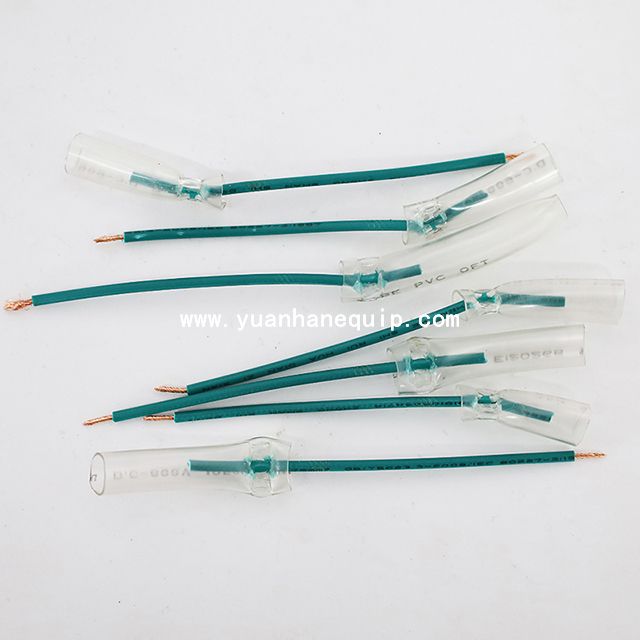

Suitable for SD card, U disk, 2.4G card, mobile phone antenna, communication products, earphones and other microelectronic products.

Model	YH-SL01
Output power	2000W
Voltage	single-phase AC220V (50/60HZ)
Pressure	0.1-0.7MPA
Stroke	75mm
Output time	0.001-9.999S
Power topology	phase shifted full bridge
Weight	80KG
Dimensions	7004001300mm
