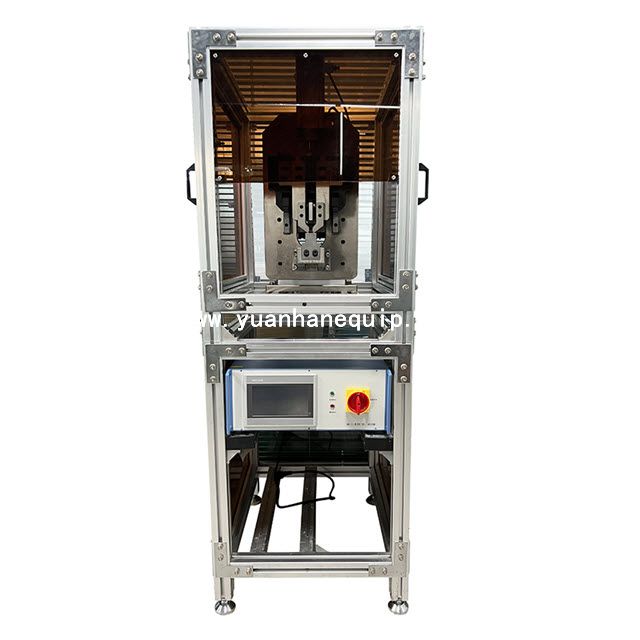

Ultrasonic Wire Terminal Welding MachineUltrasonic Wire Terminal Welding Machine

The ultrasonic wire terminal welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on. Applicable wire size: 35-50 mm2.

Model:
  • YH-DD2055
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Touch screen English interface

○ Wire material: pure red copper

○ Terminal material: pure red copper

○ Wire size: 35-50 mm2

Model YH-DD2055
Working frequency 20K
Power 5500W
Voltage 380V
External air pressure 0.8Mpa
Ultrasonic control box size 550x450x180mm
Main body head size 570x280x320mm
Weight 70-75kg
Wire material pure red copper
Terminal material pure red copper
Wire size 35-50 mm2
Wire breakage/leakage after welding none
Height tolerance after welding 0.1-0.3mm
Width tolerance after welding 0.1-0.3mm
Welding speed 2s



×
