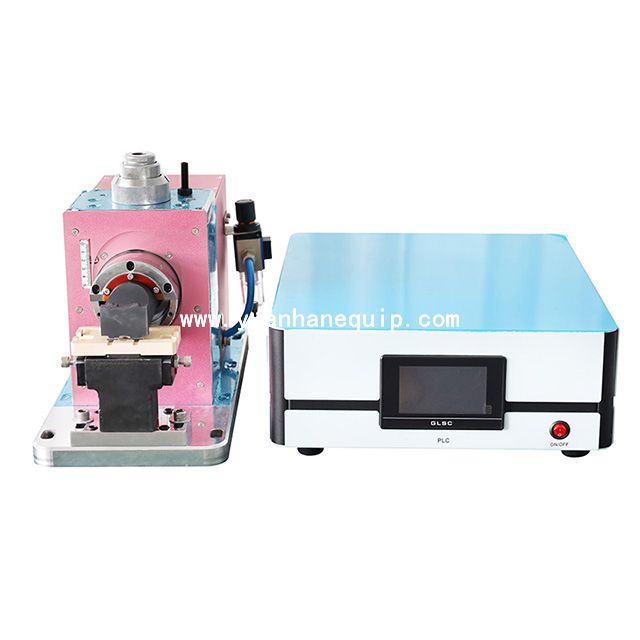

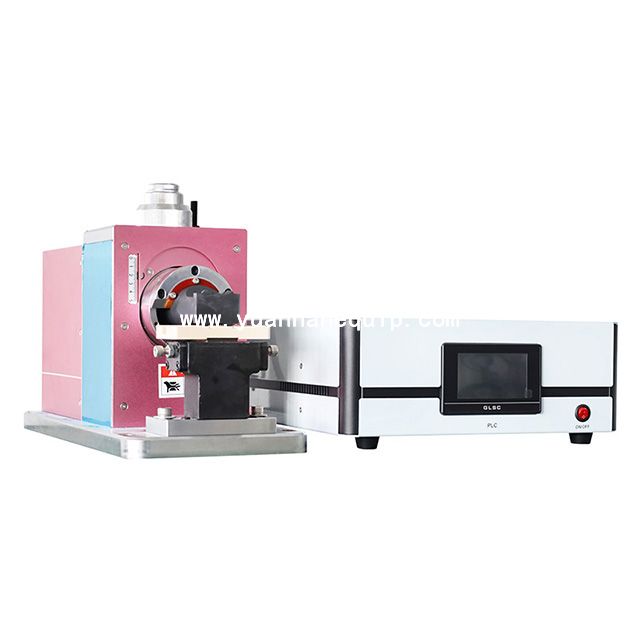

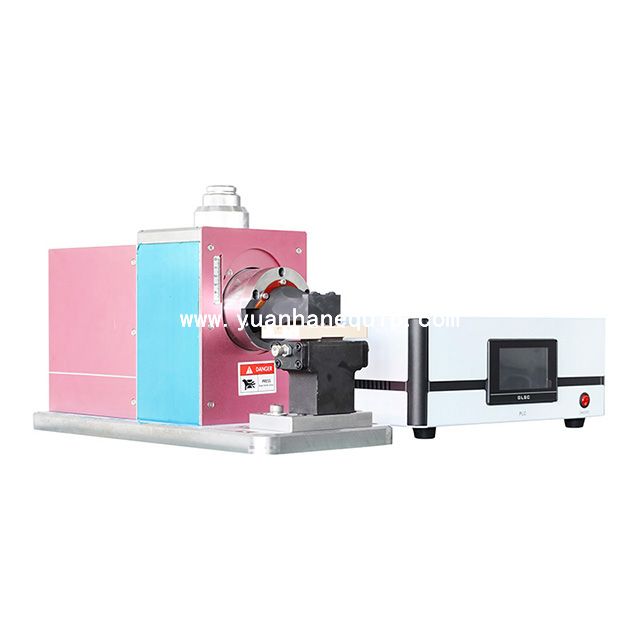

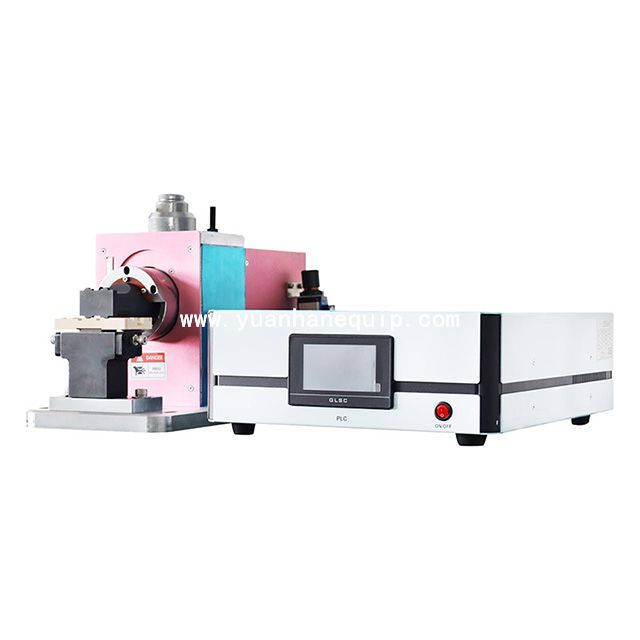

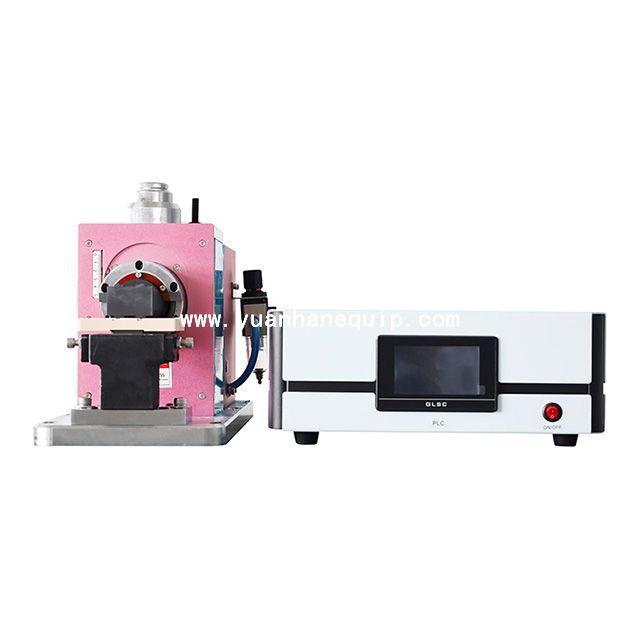

Ultrasonic Multiple Wire Welding MachineUltrasonic Multiple Wire Welding Machine

The ultrasonic multiple wire welding machine is a cutting-edge piece of equipment designed for precision welding of multiple wires simultaneously. This advanced machine utilizes ultrasonic technology to create strong and reliable bonds between wires, ensuring a secure connection that is resistant to vibration and environmental factors.

Model:
  • YH-N2042
Brand:
  • Yuanhan
Share to:
Features
Technical Data

○ Digital circuit, adjustable amplitude

○ Automatic frequency tracking (truly fully automatic frequency tracking, no need to adjust frequency when changing heads)

○ Dynamic indication of welding current, use time, power, amplitude and other parameters are displayed

○ Frequency and overcurrent protection can be manually adjusted during welding

○ Precision linear guides can ensure smooth operation of the equipment and optimal welding accuracy

○ The power box maintains stable output when the voltage fluctuates

○ Advantages: short welding time, high efficiency, fast welding time, energy saving. Good conductivity and high strength after welding,

○ Resistance is zero. No need to add any solder. No sparks, no smoke, safe.

Model YH-N2042
Input voltage 220V
Maximum output power 4200W
Working frequency 20HZ
Welding time range 0.5S-2S
Welding area range 3x18mm
Operating humidity 0-40°
Working air pressure 0.2-0.8MPa
Ambient temperature 20-70
Bracket dimensions 22x14x42cm
Electric box dimensions 48x14x38cm
Machine weight 40KG





×
