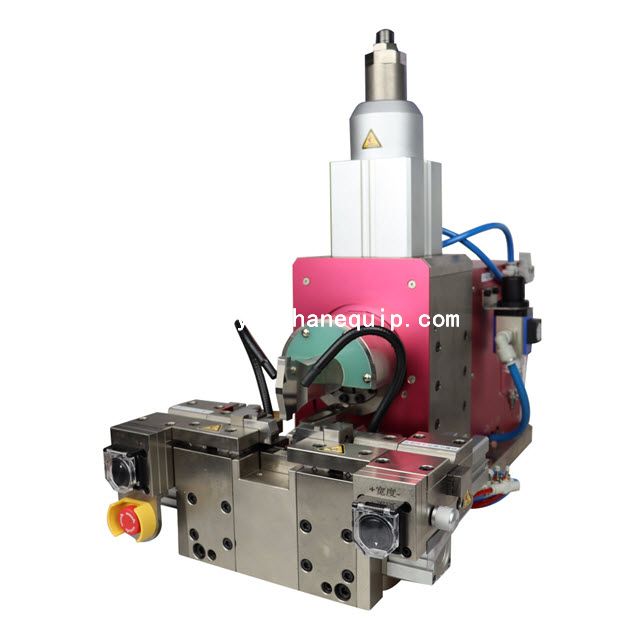

Ultrasonic Welding Machine for Automobile High-voltage Cable Terminals
Ultrasonic Welding Machine for Automobile High-voltage Cable Terminals
Ultrasonic Welding Machine for Automobile High-voltage Cable Terminals
Ultrasonic Welding Machine for Automobile High-voltage Cable Terminals
Ultrasonic Welding Machine for Automobile High-voltage Cable Terminals
Ultrasonic Welding Machine for Automobile High-voltage Cable Terminals
Ultrasonic Welding Machine for Automobile High-voltage Cable Terminals

Ultrasonic Welding Machine for Automobile High-voltage Cable Terminals Ultrasonic Welding Machine for Automobile High-voltage Cable Terminals

Application range: welding between copper wire, aluminum wire and various terminals, wire forming welding, automobile wiring harness welding, aircraft wiring harness welding, motorcycle wiring harness, enameled wire welding, etc.

Model:
  • YH-2060/YH-2080/YH-20100/YH-20130
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

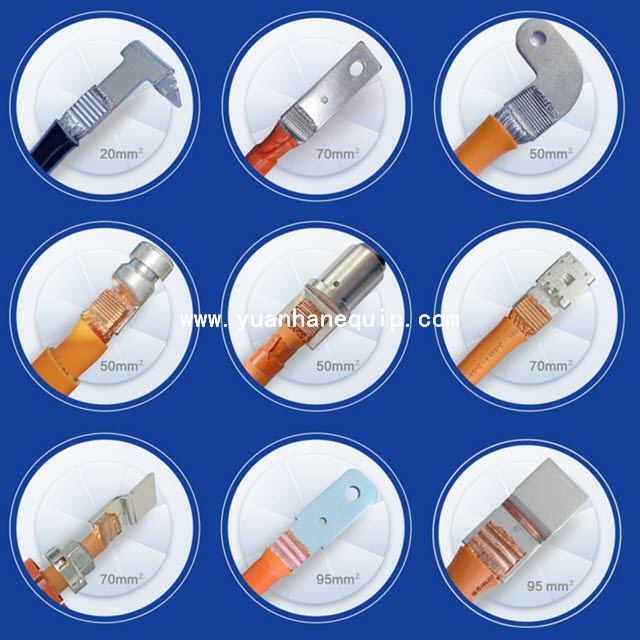

○ Copper wire to copper wire welding, copper wire to aluminum wire welding, aluminum wire to aluminum wire welding, single strand wire welding, multi strand wire welding, braided wire welding

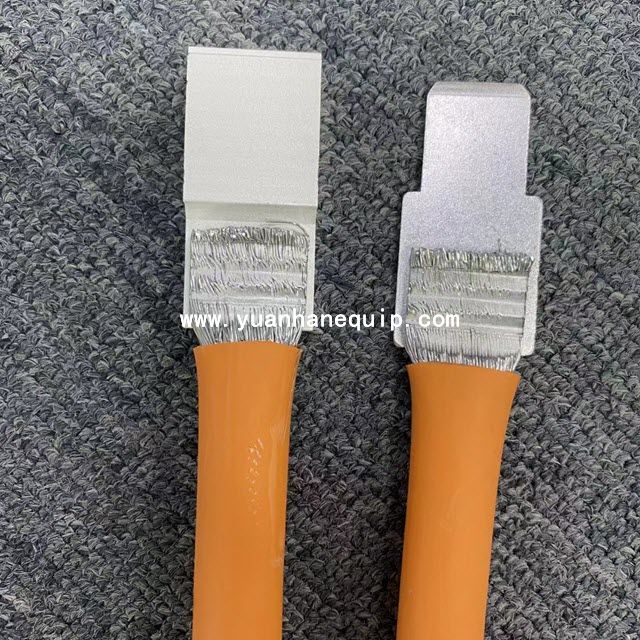

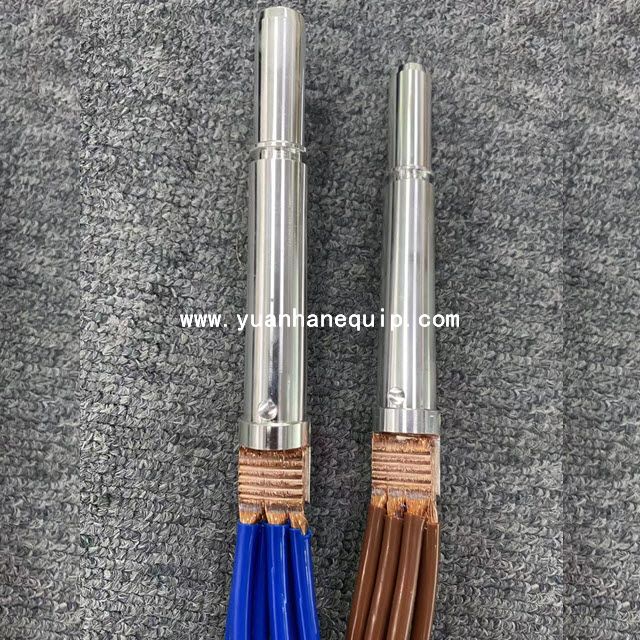

○ Automobile high-voltage wire harness terminal welding, high-voltage connector terminal welding

Model

YH-2060

YH-2080

YH-20100

YH-20130

Generator  power

6000W

8000W

10000W

13000W

Generator frequency

20KHz

20KHz

20KHz

20KHz

Wire size 50mm2 70mm2 95mm2 120mm2

Supply voltage

380V

380V

380V

380V

Air Pressure

0.6MPa

0.6MPa

0.6MPa

0.6MPa

Welding mode (optional)

Energy /time /height

Energy /time /height

Energy / time / height

Energy / time / height

Generator size(L*w*h)

600*425*170mm

600*425*170mm

600*425*170mm

600*425*170mm

Actuator size(L*w*h)

790*745*800mm

810*760*855mm

810*760*855mm

810*760*855mm

Automatic frequency tracking

●

●

●

●

Intelligent subsection amplitude

●

●

●

●

System security protection

●

●

●

●

Real time welding data

●

●

●

●

Power curve display

●

●

●

●

Amplitude curve display

●

●

●

●

Height curve display

●

●

●

●

Quality monitoring function

●

●

●

●

Data upload to MES

●

●

●

●

Welding record query

●

●

●

●

Welding record query

●

●

●

●

Digital voltage regulation

●

●

●

●

Energy feedback monitoring

●

●

●

●

Air pressure monitoring

protection

●

●

●

●

Protection of eight sensors

●

●

●

●

Management   permission

password

●

●

●

●

Protection against empty welding

●

●

●

●

Touch screen interface

●

●

●

●

Touch photoelectric switch

●

●

●

●

Pneumatic terminal positioning

●

●

●

●

Welding counting function

●

●

●

●

Safety shielding platform

〇

〇

〇

〇

Note: "●" means standard configuration, "〇" means optional configuration.
