This machine is ideal for applications in various fields such as automotive, electronics, and aerospace, not only to increase productivity but also to ensure consistent and reliable welding quality.
|
Model:
|
|
|
Brand:
|
|
○ Strong welding, zero resistance, and high efficiency
○ Using specially customized transducer, imported steel mold, long service life.

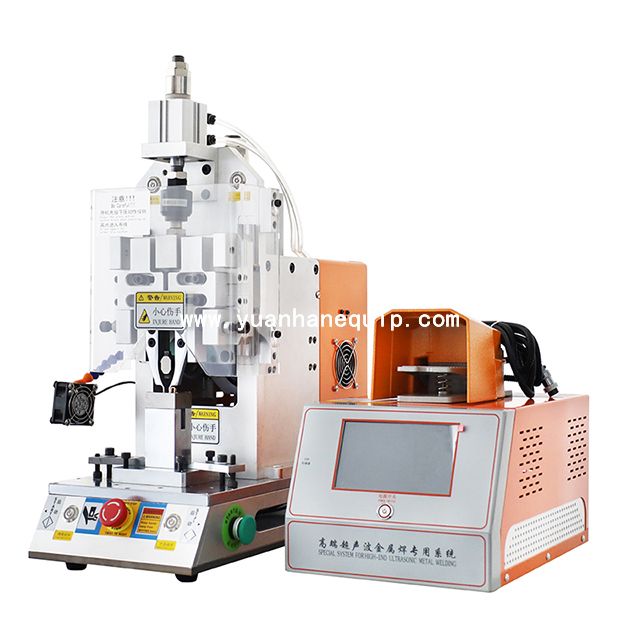

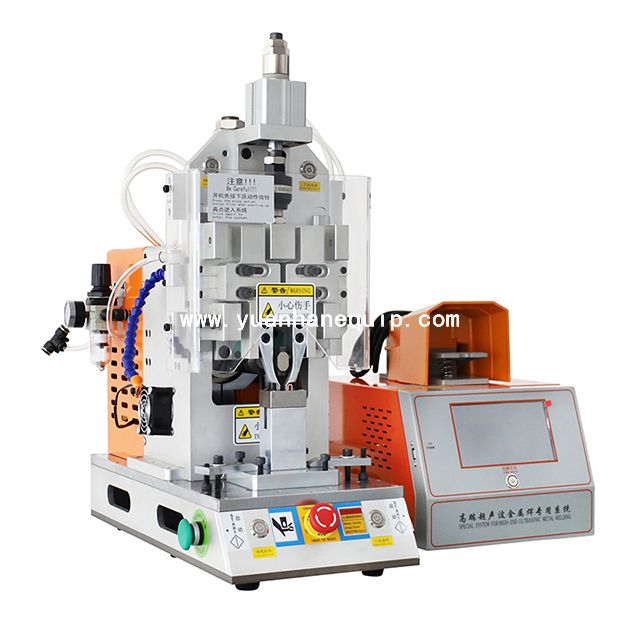

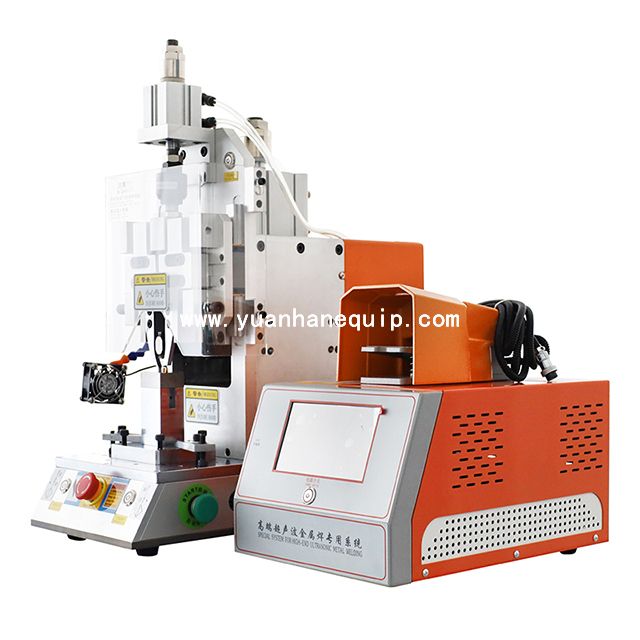

○ The 6000W ultrasonic metal welding machine uses high-frequency ultrasonic vibrations to generate localized heat at the interface of the metals being welded, thereby minimizing thermal deformation and achieving excellent bonding strength.
○ Its advanced control system allows for precise parameter adjustments, making it suitable for a variety of metal types and thicknesses, ultimately helping to simplify operations and reduce production costs.
| Model | YH-6000W |
| Power | 6KW |
| Welding range | brass, copper, aluminum, aluminum alloy, nickel |
| Input voltage | single-phase AC220V (50/60 Hz) |
| Maximum output power/operating frequency | 6000W /20Khz |
| Welding time range | 0.5S-9.99S |
| Welding thickness range | 1mm²+50mm²+terminal |
| Operating temperature | 0-40° |
| Working air pressure | 0.2-0.8Mpa |
| Bracket dimensions | 700L X 400W X 730H MM |
| Electric box dimensions | 400LX 280WX 230H |
| Machine weight | about 70KG |
