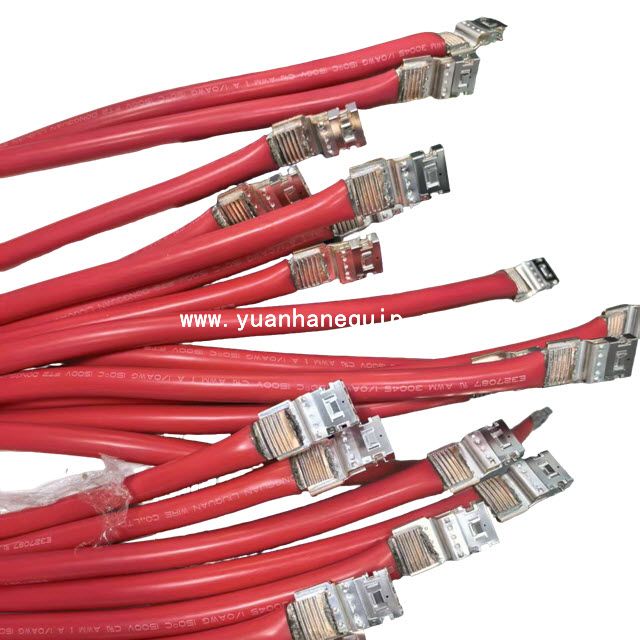

Wire Terminal Ultrasonic Welding MachineWire Terminal Ultrasonic Welding Machine

This welder uses ultrasonic innovation to make solid and dependable connections among wires and terminals, guaranteeing a safe association that satisfies the most noteworthy industry guidelines.

Model:
  • YH-A120
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Digital circuit, time mode, adjustable amplitude, automatic frequency tracking, intelligent protection, welding workpiece vibration,

Chinese/English switching.

○ Automatic frequency tracking (real fully automatic frequency tracking, no need to adjust frequency when changing heads)

○ Dynamic display of welding current, usage time, power, amplitude and other parameters.

○ Manual frequency adjustment and overcurrent protection during welding

○ Precision linear guide rails to ensure smooth operation of the equipment and optimal welding accuracy

○ When the voltage fluctuates, the power box maintains stable output.

○ Advantages: short welding time, high efficiency, fast welding time, energy saving. Good conductivity and high strength after welding, resistance is zero. No need to add any solder. No sparks, no smoke, safe.

Model YH-A120
Control mode single chip microcomputer
Input voltage 380V
Maximum output power 12000W
Working frequency 20HZ
Welding time range 0.5S-2S
Welding area range 5-120mm² + terminal
Operating humidity 0-40°
Working air pressure 0.2-0.8MPa
Ambient temperature 20-70°
Electric box size 116x90x184cm
Machine weight 1080KG





×
