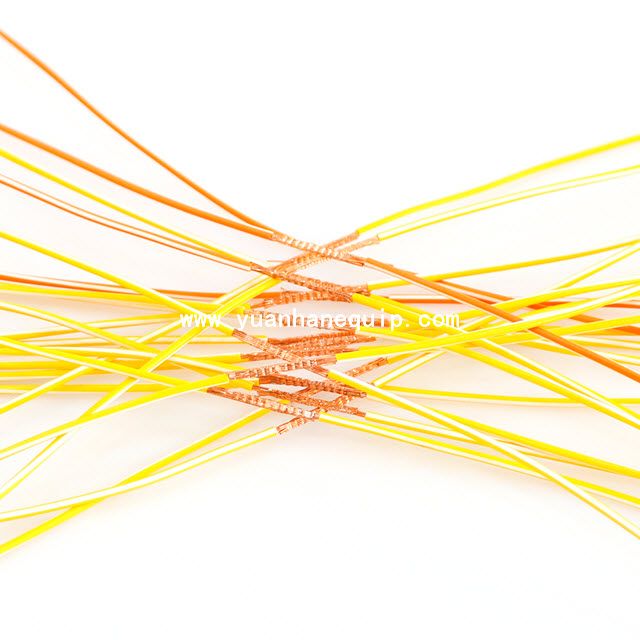

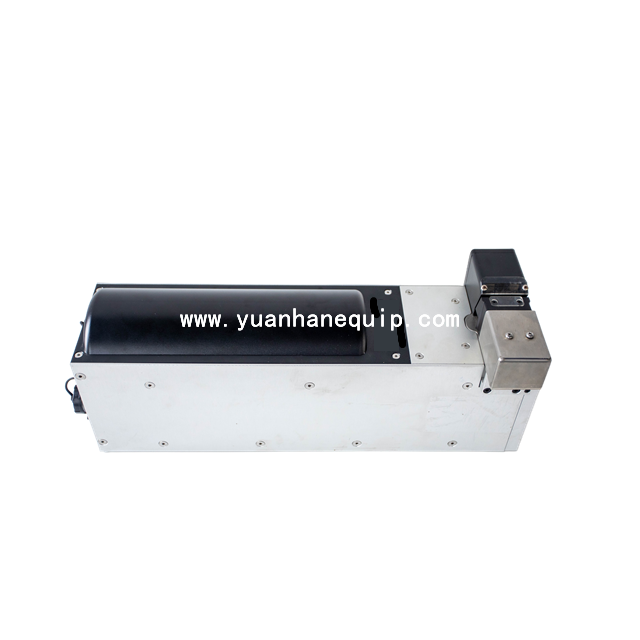

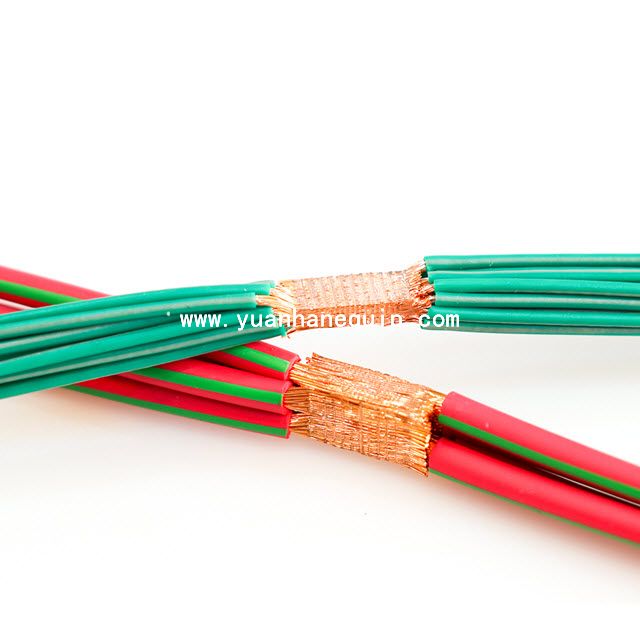

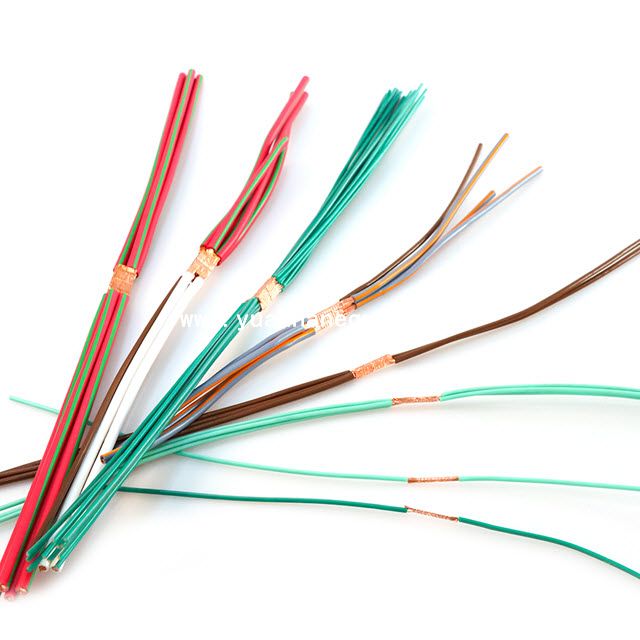

Our ultrasonic wire harness welding machine is a high-efficiency, precision-engineered solution for the reliable joining of multi-strand wires and terminals in automotive, electronic, and industrial applications. Utilizing advanced ultrasonic technology, it delivers consistent, high-strength welds without the need for solder, flux, or additional consumables, ensuring clean, durable connections that meet the most stringent industry standards.
|
Model:
|
|
|
Brand:
|
|

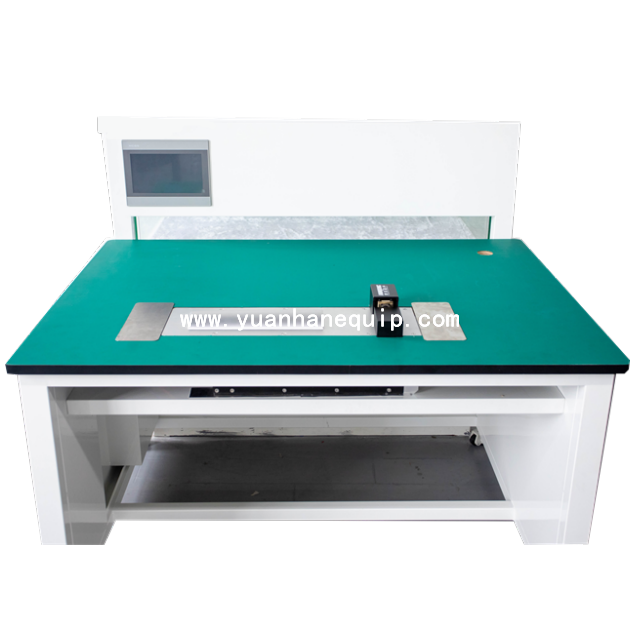

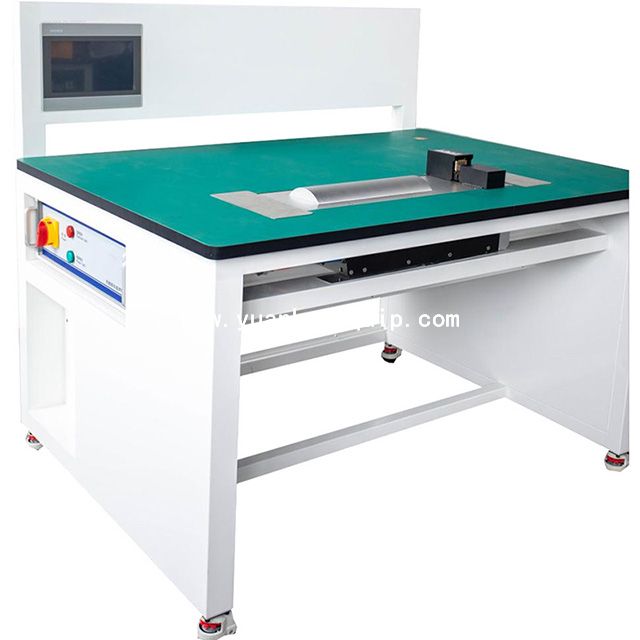

○ Equipped with an ergonomic workbench, providing a comfortable and compatible operating environment.
○ Full storage of welding parameters with one-click retrieval significantly improves process changeover efficiency.
○ A hierarchical password user management system ensures secure control over equipment operation permissions.
○ Preset welding recipes can be automatically verified; the system intelligently retrieves the corresponding welding parameters based on the recipe.
○ Synchronous automatic frequency tracking technology ensures the stability and accuracy of equipment operation throughout the entire process.
○ Self-checking and automatic protection mechanisms at startup mitigate the risk of misoperation and equipment damage from the outset.
○ Built-in anti-dry welding function effectively avoids invalid welding processes.
○ Welding head counting management enables precise control of welding head lifespan.
○ Real-time monitoring and traceable recording of welding data provides data support for product lifecycle traceability.
○ Supports MES system parameter access, seamlessly integrating with the enterprise's intelligent manufacturing management system.
| Model | YH-X30B | YH-X40B | YH-X65B |
| Power | 3000W | 4000W | 6500W |
| Welding Area | 0.35-16mm² | 0.5-25mm² | 1-35mm² |
| Working Air Pressure | 0.1-0.6Mpa | 0.1-0.6Mpa | 0.1-0.6Mpa |
| Working Frequency | 20Khz | 20Khz | 20Khz |
| Working Voltage | 220V | 220V | 380V |
| Welding Mode | Energy/Time | Energy/Time | Energy/Time |
| Actuation Control | Pneumatic | Pneumatic | Pneumatic |
