Ultrasonic wire splicer welder is widely used in automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instrumentation and other fields. The welding area can reach up to 55mm2.
Model:
|
|
Brand:
|
|

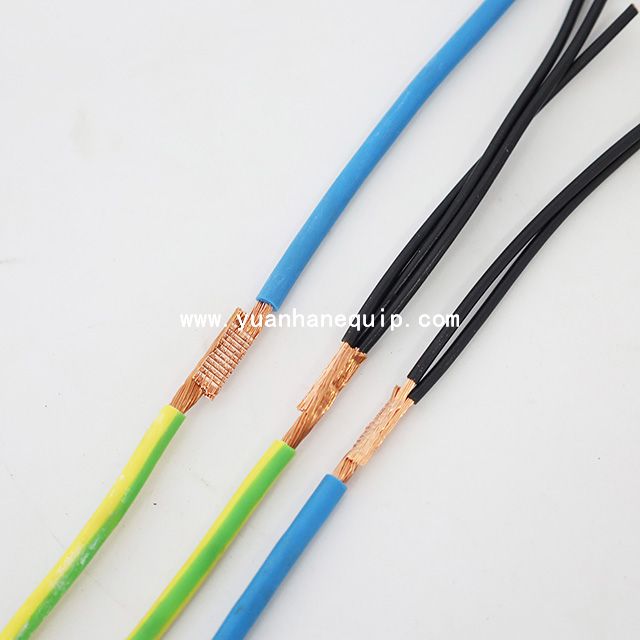

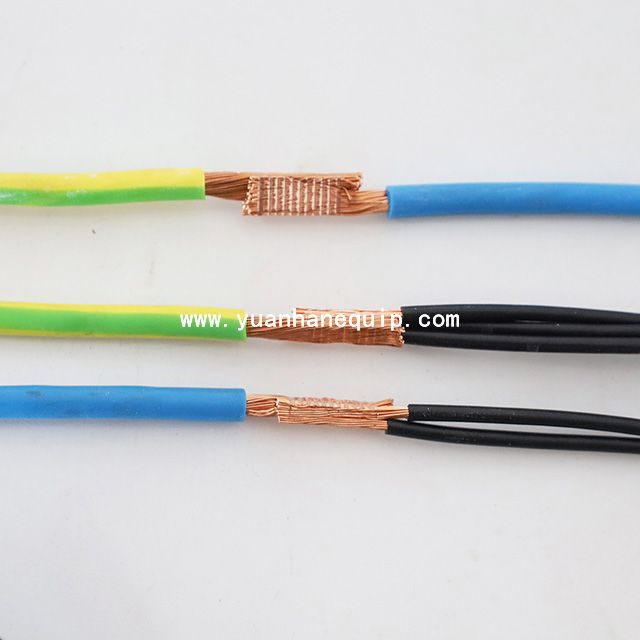

○ The ultrasonic wire splicer is mainly used for lap welding of automobile wiring harness, wire head forming, wire mutual welding, multiple wires and butt joints, as well as mutual welding into a knot;

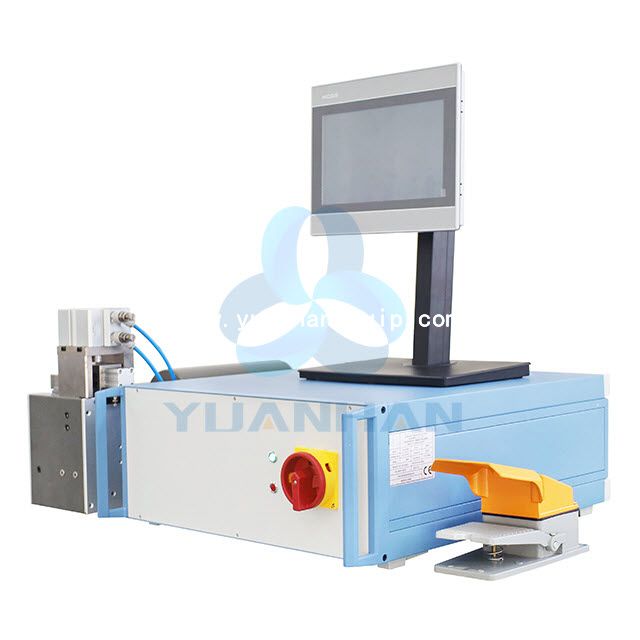

○ The whole machine is integrated design, the equipment is small in size, light in weight, beautiful in appearance and convenient to move;
○ Adopt PLL lock-in frequency automatic tracking technology to ensure the welding effect;
○ Good electrical conductivity after welding, low resistivity or near zero;
○ Suitable for welding copper wire and aluminum wire, such as copper and aluminum wire harness, metal braided wire, metal stranded wire, wire harness terminal, enameled wire, motor lead wire, etc.
○ The ultrasonic wire harness welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on.
Model | YH-X2050 | YH-X2055 |
Power | 5500W | 5500W |
Welding area | up to 50 mm2 | 1.0-55mm2 |
Working air pressure | 0.05-0.9MPa | 0.8MPa |
Working frequency | 20KHz | 20KHz |
Working voltage | 220V | 380V |
Weight | 110-115KG | 110-115KG |
