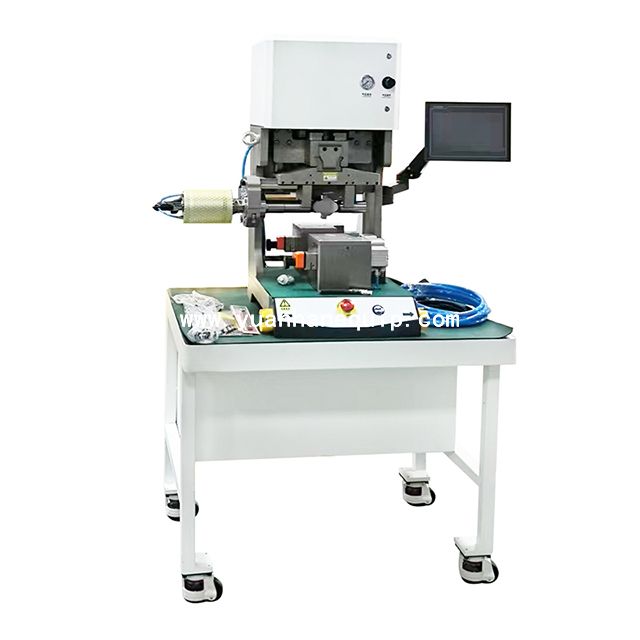

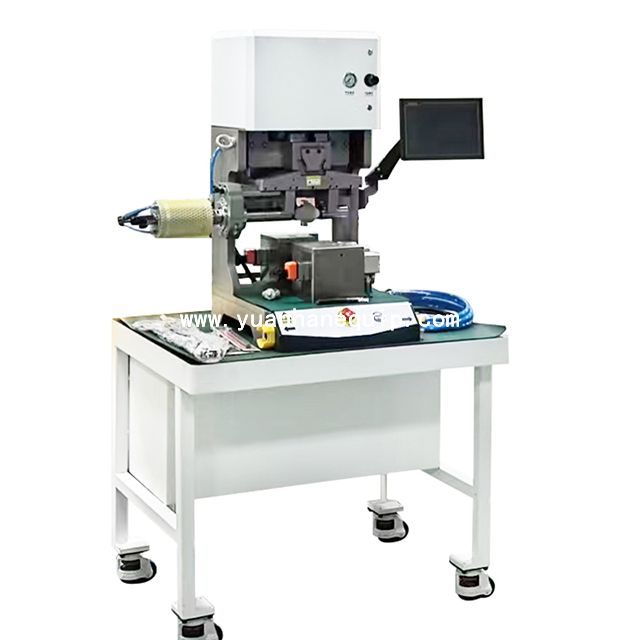

The ultrasonic wire splicer is a cutting-edge electrical connection device that revolutionizes wire joining through high-frequency ultrasonic vibration technology. Unlike traditional methods such as soldering or crimping, this equipment creates solid, metallurgical bonds between wires without the need for additional materials like solder, flux, or crimp terminals—delivering superior performance, efficiency, and durability for a wide range of industrial applications.
|
Model:
|
|
|
Brand:
|
|
○ Digital circuit, time mode, adjustable amplitude, automatic frequency tracking, intelligent protection, welding workpiece vibration, Chinese and English switching.
○ Automatic frequency tracking (real fully automatic frequency tracking, no need to adjust the frequency when changing the welding head)
○. Dynamic display of welding current, usage time, power, amplitude and other parameters.
○ The frequency and overcurrent protection can be manually adjusted during welding.
○ Precision linear guide rails to ensure smooth operation of the equipment and optimal welding accuracy.
○ The power box maintains stable output when the voltage fluctuates.
○ Short welding time, high efficiency, fast welding speed and energy saving. Good conductivity, high strength, zero resistance after welding. No need to add any solder. No sparks, no smoke, safe and reliable.
| Model | YH-L2080G |
| Control Method | PLC |
| Input Voltage | 220V |
| Maximum Output Power | 8000W |
| Working Frequency | 20HZ |
| Welding Time Range | 0.5S - 2S |
| Welding Area Range | within 80 mm² |
| Operating Humidity | 0 - 40° |
| Working Air Pressure | 0.2 - 0.8MPa |
| Ambient Temperature | 20 - 70 |
| Machine Weight | 150KG |
