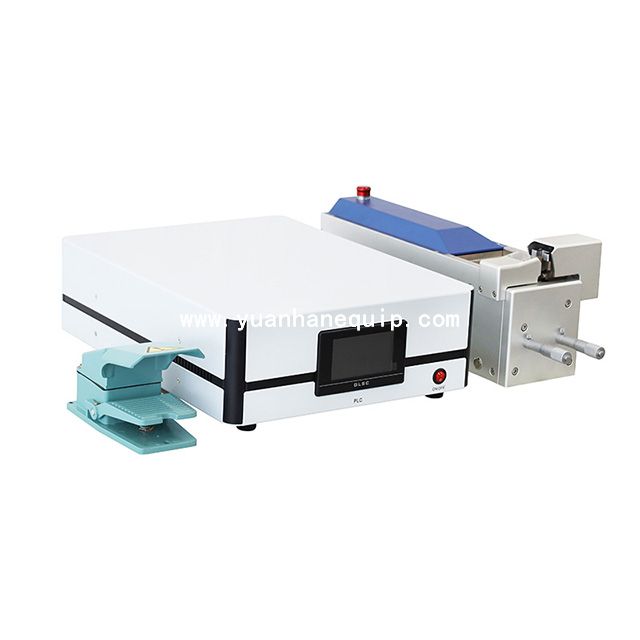

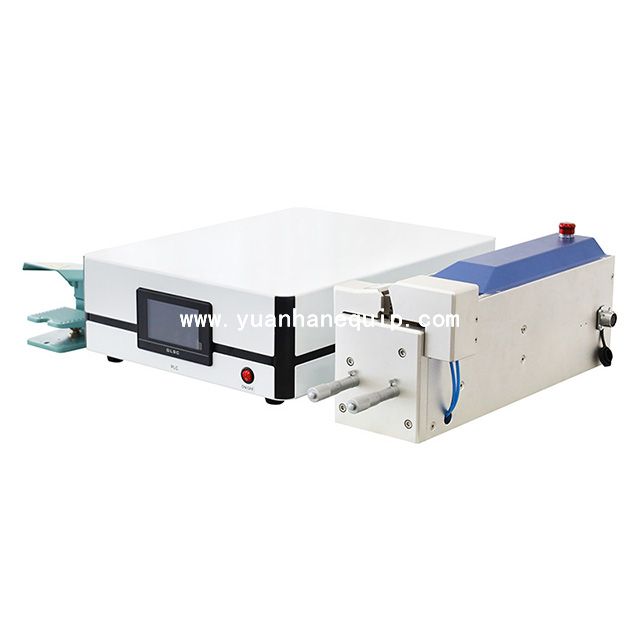

Our ultrasonic wire welding machine is a reliable and efficient solution for all your wire welding needs. With its advanced features and benefits, this machine is sure to streamline your welding process and deliver exceptional results every time.
|
Model:
|
|
|
Brand:
|
|
○ Digital circuit, time mode, adjustable amplitude, automatic frequency tracking, intelligent protection, welding workpiece vibration.
○ Automatic frequency tracking (truly fully automatic frequency tracking, no need to adjust frequency when changing heads)
○ Dynamic indication of welding current, use time, power, amplitude and other parameters are displayed.
○ Frequency and overcurrent protection can be manually adjusted during welding
○ Precision linear guides can ensure smooth operation of the equipment and optimal welding accuracy
○ The power box maintains stable output when the voltage fluctuates.
| Model | YH-N2030 |
| Control mode | single chip microcomputer |
| Input voltage | 220V |
| Maximum output power | 3000W |
| Working frequency | 20HZ |
| Welding time range | 0.5S-2S |
| Welding area range | 0.5-28mm² |
| Operating humidity | 0-40° |
| Working air pressure | 0.2-0.8MPa |
| Ambient temperature | 20-70° |
| Electric box size | 48x14x38cm |
| Machine weight | 40KG |
