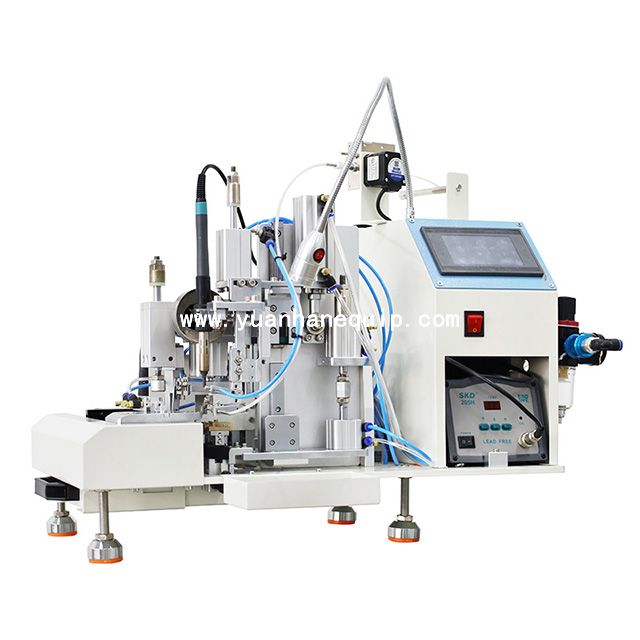

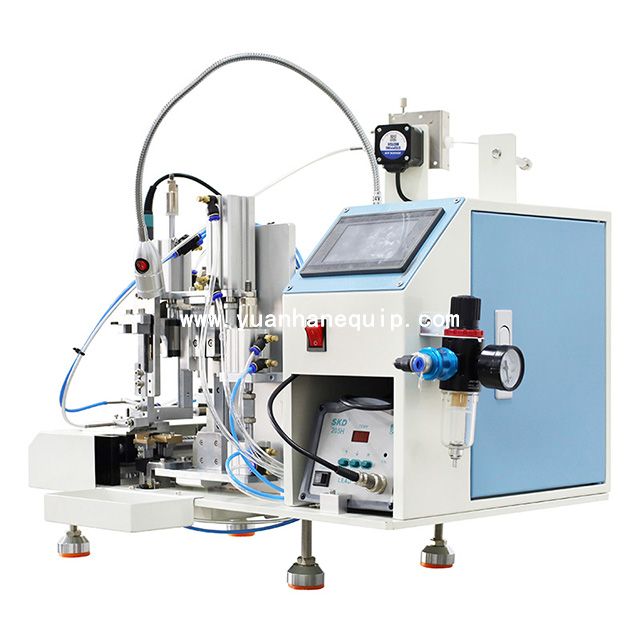

Semi-automatic USB Soldering Machine Semi-automatic USB Soldering Machine

Our USB soldering machine is a semi-automatic equipment for soldering USB short body, AM, USB AF, MINI5PIN, MICRO and other connectors. It has many advantages such as reducing labor costs, improving production efficiency, and improving the production environment for employees.

Model:
  • YH-USB01
Brand:
  • Yuanhan
Share to:
Description
Specifications

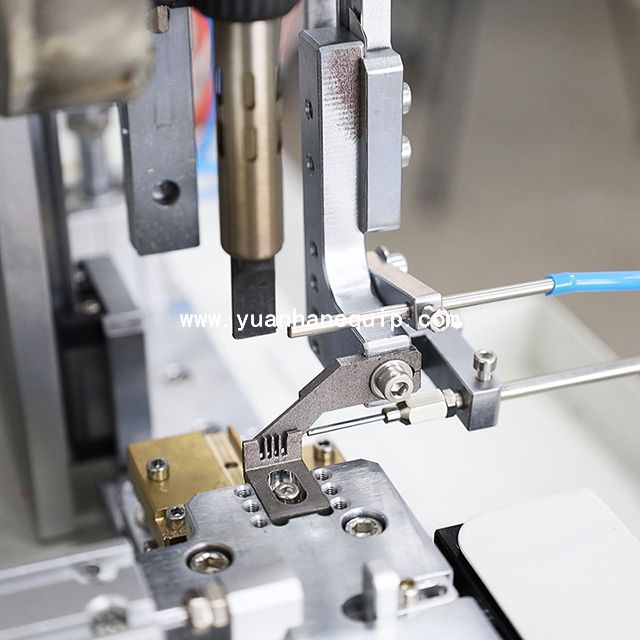

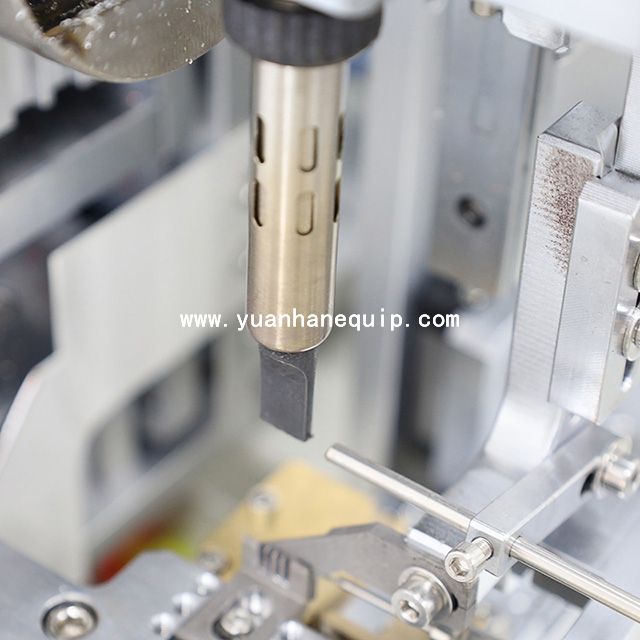

○ This equipment is mainly used for semi-automatic welding of USB cables and rubber cores. It consists of 4 stations: wire clamping, wire pulling, stripping, and soldering. The equipment has a compact structure and is characterized by high speed and high precision. It uses a high-power soldering station with fast temperature recovery, high temperature control accuracy, and stable soldering effect.

○ The mechanical part consists of a rack, a shifting fixture, a wire pulling device, a wire cutting and stripping device, welding, etc. The electrical part consists of a PLC, a display screen, a stepper motor, a switching power supply, etc.

Model YH-USB01
Working voltage single-phase AC 220V, 10A, 50HZ
Air pressure 0.4~0.6Mpa
Ambient temperature -20℃~ +50℃
Operator 1 person
Welding speed 300pcs~600pcs/hour
Dimensions 700*420*500 mm
Weight 40KG



×
