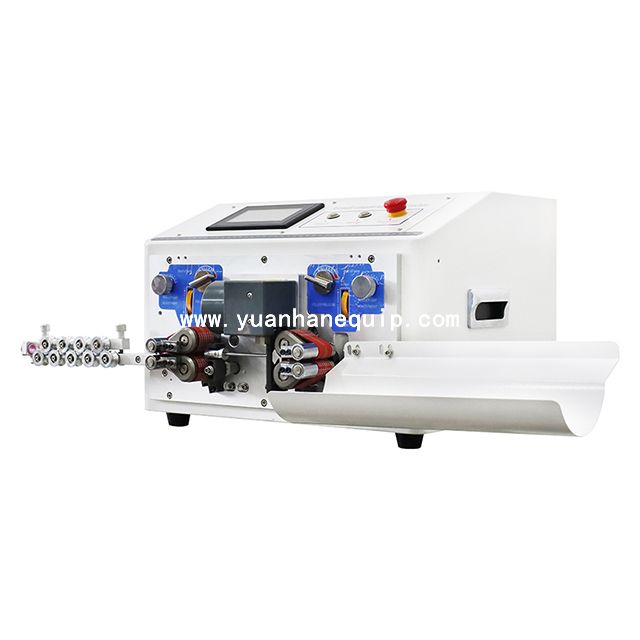

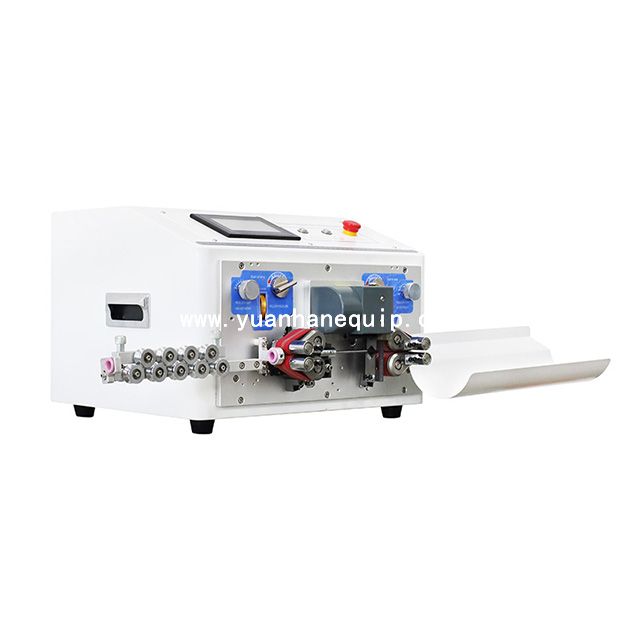

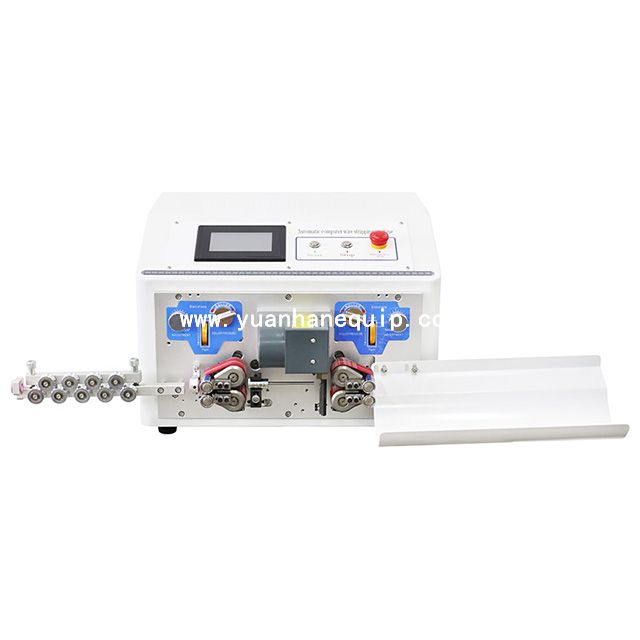

This machine is engineered for versatile processing, cutting, and stripping of various wires, including PVC wires, braided wires, silicone wires, high-temperature resistant wires, Teflon wires, and insulated wires. It features adjustable processing speed and stripping thickness, enabling it to adapt to a wide range of wire specifications and processing requirements.
|
Model:
|
|
|
Brand:
|
|
○ This machine adopts the latest 32-bit intelligent control system and is equipped with an LCD screen and touch screen operation.
○ It can store hundreds of pieces of information, facilitating quick and efficient retrieval.

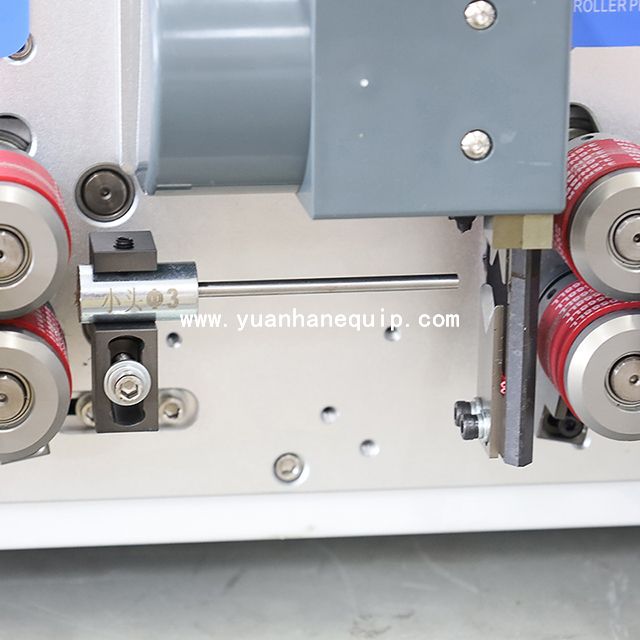

○ Equipped with precision-driven components, it ensures clean, smooth, and damage-free stripping ends for different wire types. The machine’s user-friendly interface allows seamless speed and thickness adjustments, while its robust construction guarantees stable, high-efficiency operation for both small-batch and large-scale production needs.
○ Ideal for industrial applications requiring flexibility and precision, it streamlines wire processing workflows with reliable performance and customizable settings.
|
Model |
YH-J500D |
|
Dimensions |
L420mm × H297mm × W345mm |
|
Weight |
28kg |
|
Display |
4.3-inch touch screen |
|
Power Supply (Switching) |
AC175V–250V, 50/60Hz |
|
Power |
120W – 220W |
|
Cutting Length |
0.1mm – 99999.9mm |
|
Stripping Length |
Head: 0.1–150mm; End: 0.1–80mm |
|
Wire Core |
0.1–6.0mm² ×2 AWG32#–14# ×2 |
|
Cutting Tolerance |
Within 0.002×L (mm) |
|

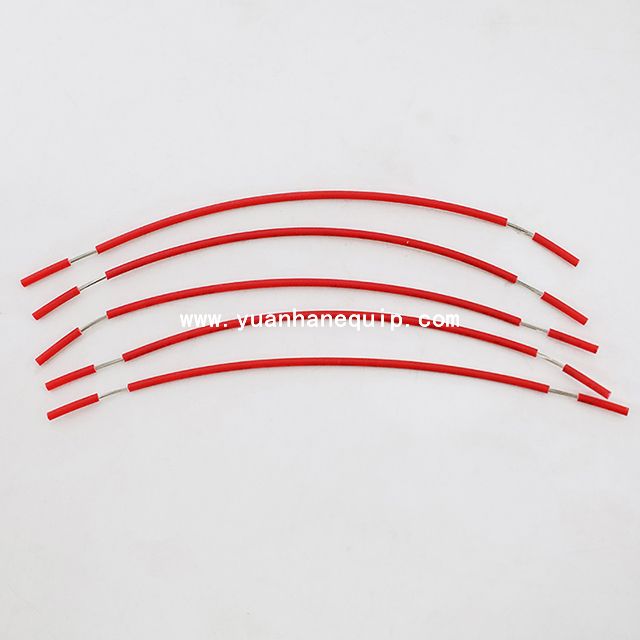

Mid-strip Positions |
13 positions |
|
Conduit Diameter |
1.5mm – 9mm |
|
Blade Material |
Tungsten steel / Imported high-speed steel |
|

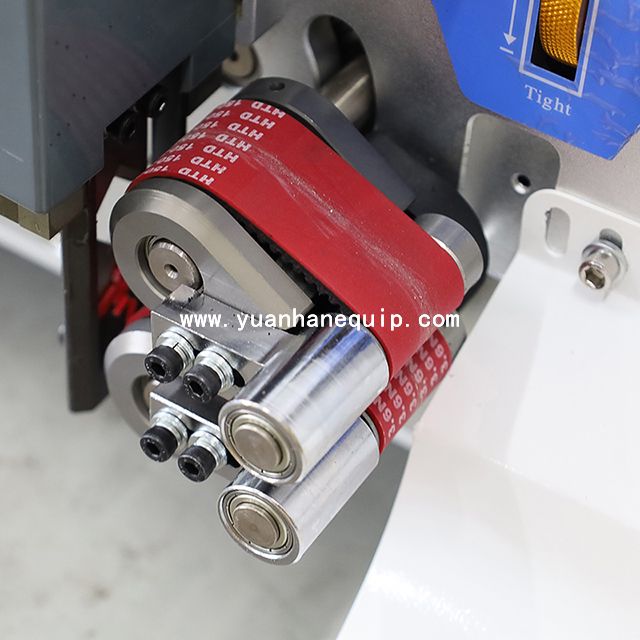

Drive Mode |
4-wheel drive |
|
Processing Speed |
3000–5000 pcs/h |
|
Wire Pressure Adjustment |
Available |
|
Pulse Accuracy |
0.05mm per 1 meter |
|
Total Count |
999999 |
|
Batch Count |
99999 |
|
Blade Motor Accuracy |
0.03mm per step |
|
Wire Feeding Motor |
Silent hybrid stepper motor, 0.1mm per step |
|
Functions |
Auto stop for wire shortage, auto wire feeding, auto wire output, timer start |
