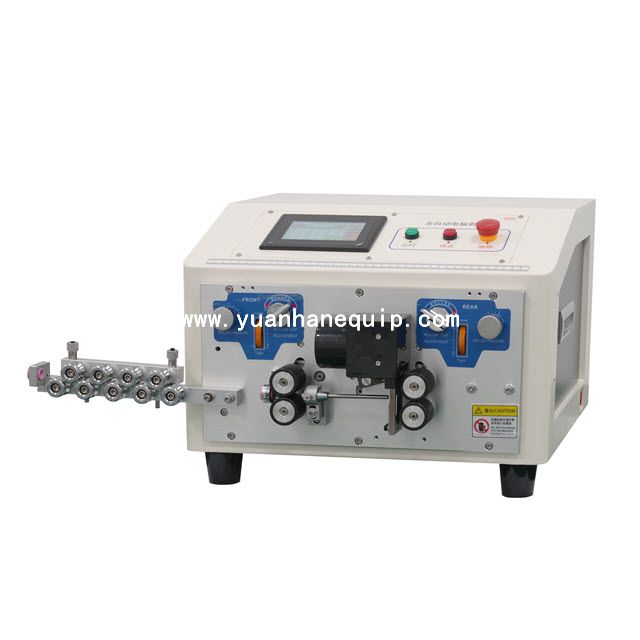

This fully automatic computerized wire cutting and stripping machine is a high-precision, high-efficiency single wire processing device specially designed for wire harness manufacturing industries.
|
Model:
|
|
|
Brand:
|
|
○ Fully automatic computerized control with touch screen operation
○ High-precision wire cutting & stripping for single wires
○ High efficiency, ideal for harness mass production
○ Adjustable cutting length, stripping depth and processing speed
○ Stable wire feeding, reliable consistent machining accuracy
○ Built-in fault alarm to minimize material waste
○ Compact structure, stable running and low failure rate
| Model | YH-805 |
| Input Power Supply | AC220V 50/60Hz |
| Body Dimensions | L470mm * W465mm * H350mm |
| Body Weight | 31.5kg |
| Total Power | 680W |
| Rated Power | 400W |
| Production Capacity per Hour | 50-1000mm (2000-4500 pieces/hour) |
| Wire Core Cross-Section | 0.1-6mm² (AWG 30#-10#) |
| Wire Cutting Length | 0.1-99999.9mm |
| Front Stripping Length | 0.1-30mm |
| Rear Stripping Length | 0.1-15mm |
| Middle Stripping Segments | 16 segments (customizable) |
| Display Method | 4.3-inch color screen display |
| Blade Material | Tungsten Steel / High Speed Steel |
| Stripping Accuracy | Silent Hybrid Stepper Motor, 0.01mm |
| Auxiliary Functions | Automatic wire feed/exit, timed start, inching adjustment |
| Program Storage | No. 00-99 (one-key copy, one-key read, custom number and name) |
