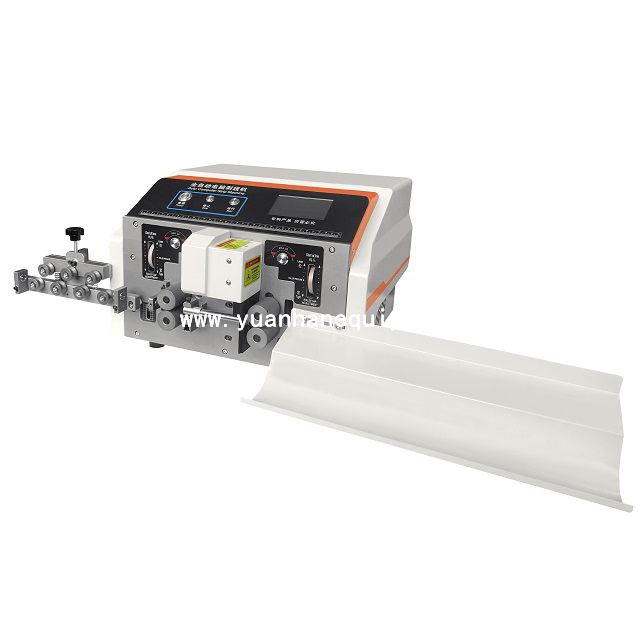

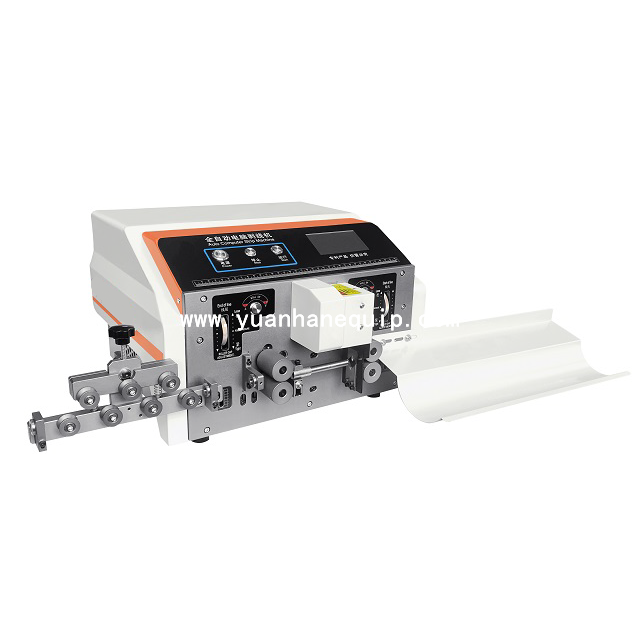

Our fully automatic wire cutting and stripping machines process wire efficiently and accurately. Designed to simplify the wire cutting and stripping process, the machines save time and increase productivity across a wide range of industries.
|
Model:
|
|
|
Brand:
|
|
○ This machine uses a full HD color touch 5-inch LCD screen plus a single-chip self-developed motion control board, which is more efficient and stable.
○ This machine uses a full metal straightener with a one-touch quick switch, and the wire feeding wheel can be equipped with a rubber wheel, an iron wheel, or a leather wheel.
○ Electric conduit wire feeding, the knife holder uses imported material heat treatment grinding process. Save labor and time, and improve production efficiency.

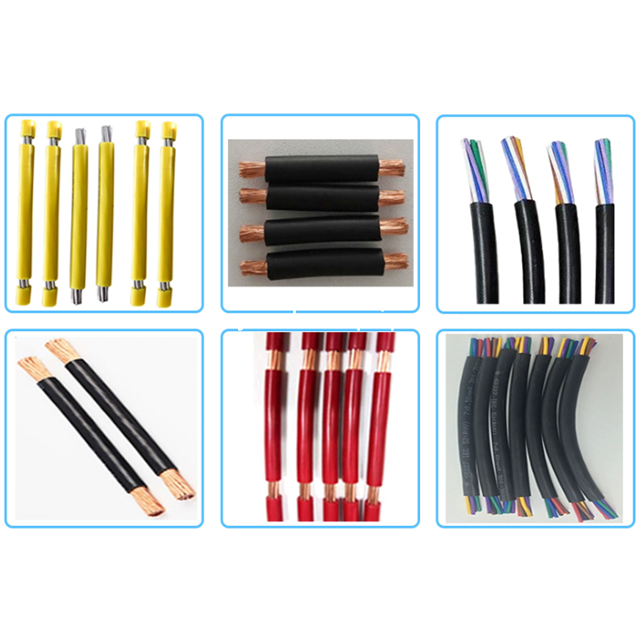

○ Mainly used for electronic wires, silicone wires, Teflon wires, glass woven cotton, isolation wires, coaxial wires, sheathed wires, etc.
○ Fully automatic cutting, stripping, half stripping, one-time completion, fast change of wire specifications and sizes, high production efficiency.
| Model | YH-810F | YH-816F |
| Power supply | 220V 50-60Hz | 220V 50-60Hz |
| Display | 5-inch touch screen display | 5-inch touch screen display |
| Stripping length |
front end 0-300mm rear end 0-90mm |
front end 0-300mm rear end 0-90mm |
| Cutting length | 0.1-99999.9mm | 0.1-99999.9mm |
| Cutting tolerance | 0.002*L-MM | 0.002*L-MM |
| Pulse equivalent | no error within 1M | no error within 1M |
| Motor | 4 (respectively control: inlet/outlet wire wheel/knife holder/conduit) | 4 (respectively control: inlet/outlet wire wheel/knife holder/conduit) |
| Applicable range | 0.1-10mm² | 0.1-16mm² |
| Guiding pipe | 4/5/6/8 | 5/6/8/10 |
| Dimensions | L475mm*W450mm*H310mm (excluding protrusions) | L475mm*W450mm*H310mm (excluding protrusions) |
| Weight | 36kg | 38kg |
| Drive mode | 4-wheel drive | 4-wheel drive |
