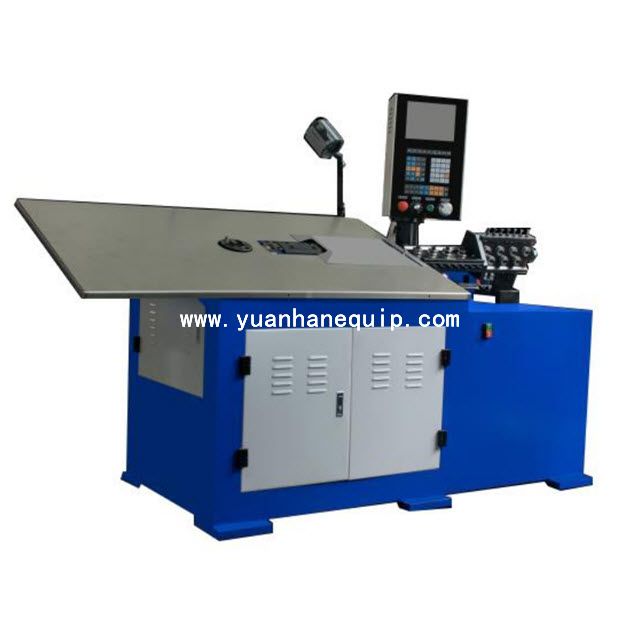

This machine is suitable for wire forming with wire diameter of 2.0-6.0mm. It is suitable for the production of car seat suspension springs, sun visor frames, car door lock levers, handicraft metal wires, bathroom tableware brackets, etc.
Model:
|
|
Brand:
|
|
○ Wire diameter: φ2.0-6.0mm
○ Adopt special computer control system for wire forming machine and high-precision servo motor
○ Easy to operate, accurate positioning, can store hundreds of processing programs
○ The outer diameter angle of the wire can be adjusted at any time
○ Automatic shutdown when no wires or wires are knotted
Model | YH-ZW460 |
Wire diameter | ɸ2.0-ɸ6.0mm |
Number of axes | 4 axes |
Wire feed command value | ±0.01-±9999.99 |
Cam command value | ±0.10°-±359.9° |
Feeding length | unlimited |
Feeding speed | 100meters/min |
Wire feed shaft servo power | 2.7KW |
Torsion axis servo power | 1.0KW |
Lifting table servo power | 0.75KW |
Cut-off axis servo power | 0.75KW |
Input voltage | 380V±10%V 50HZ |
Dimensions | Length 2400mm * Width 850mm * Height 1650mm |
Weight | 2800KG |

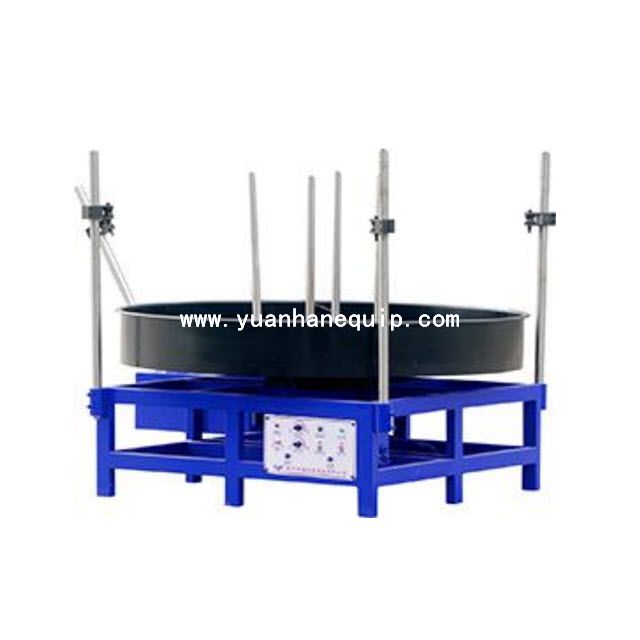

Wire feeder size | Length 1400mm * Width 2100mm * Height 700mm |
Wire feeder weight | 215KG |
Wire feeder loading weight | 500KG |
