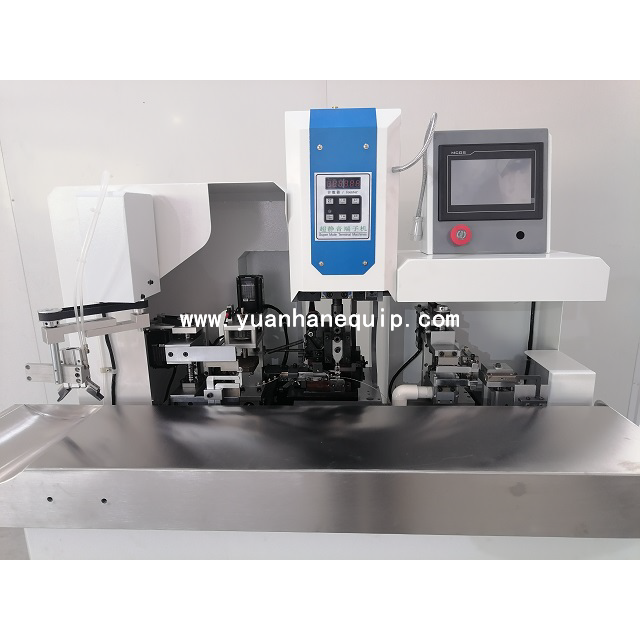

This semi-automatic wire housing connector inserting machine can realize the functions of laying out, straightening, cutting, stripping, crimping, and inserting plastic shells. It can be equipped with CCD visual color sequence detection, poor plastic shell insertion, and pressure detection system to identify poor crimping and pressure to prevent the outflow of defective products.
|
Model:
|
|
|
Brand:
|
|
○ This machine uses high-speed closed-loop stepper motors, which not only achieve high efficiency but also greatly reduce the manufacturing cost of the equipment, saving customers' machine purchase costs and subsequent maintenance costs.
○ This machine adopts a modular structure of motor + lead screw + guide rail to ensure the requirements of high-quality products, while making the whole machine structure exquisite and easy to maintain.
○ This machine uses a control system combination of a motion control card with 10 - way high-speed pulse output + a high-definition color touch screen. The touch screen program comes standard with Chinese and English operating interfaces, and can be customized if other languages are required.
○ This machine uses high-precision OTP molds , which are easy to change and durable. We can also use molds of other specifications according to customer needs, such as 2000 large molds, JAM molds , Korean molds, etc.
|
Model |
YH-CJK05 |
|
Power specifications |
Single phase 200V~240V 50/60Hz |
|
Air source |
0.5 mpa or above (please use dry and clean air) |
|
Crimping force |
1.5T/2T/3T (depending on the material and terminal requirements, selected by the manufacturer) |
|
Applicable terminal |
Open continuous terminal - horizontal |
|
Power requirements |
3000W |
|
Applicator stroke |
30mm (40mm stroke molds can be customized. Please specify when ordering) |
|
Applicable wire diameter |
Ø0.8mm - Ø2.5mm |
|
Stripping range |
the shortest stripping length for 2-5 cores is 40 mm, and the shortest stripping length for 6-12 cores is 50 mm |
|
Stripping length |
0.5~10.0mm |
|
Cutting tolerance |
0.05~0.1mm |
|
Dimensions |
L1750 *W9000*H1400 mm ( including protrusions) |
|
Weight |
240KG |
|
Applicable wire |
AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teflon , fiber line, etc. |
