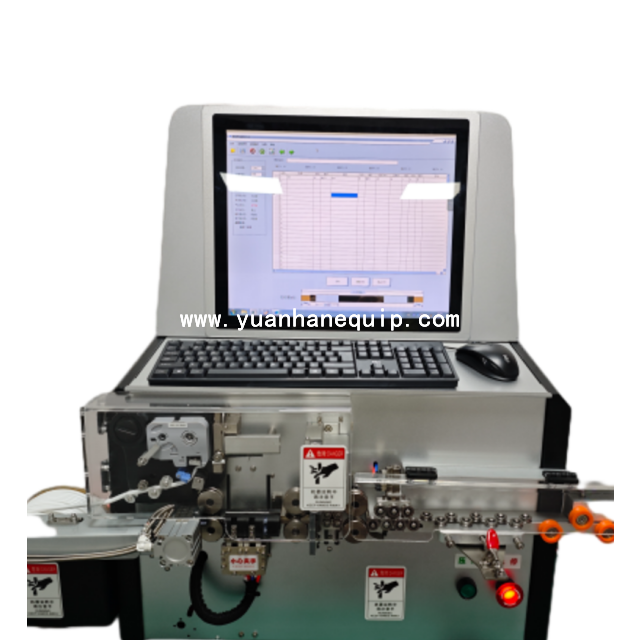

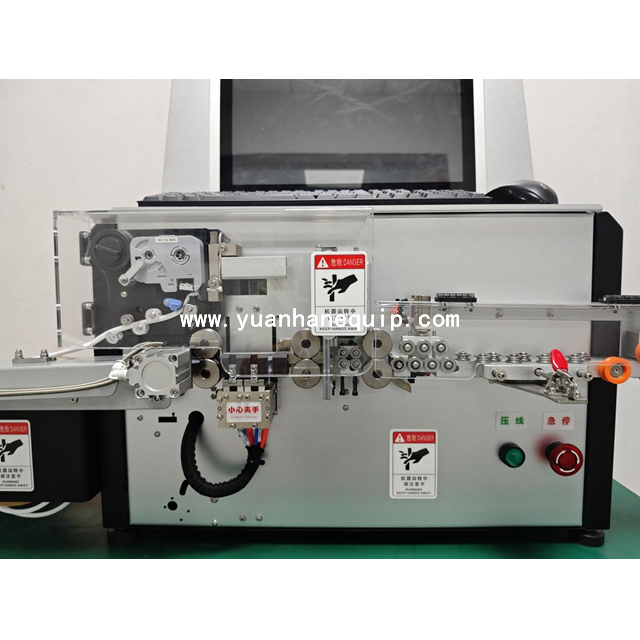

Our wire number tube printing and inserting machine is a cutting-edge solution for efficiently labeling and inserting wire number tubes. This machine is designed to streamline the wire labeling process, saving time and ensuring accuracy in identification.
|
Model:
|
|
|
Brand:
|
|

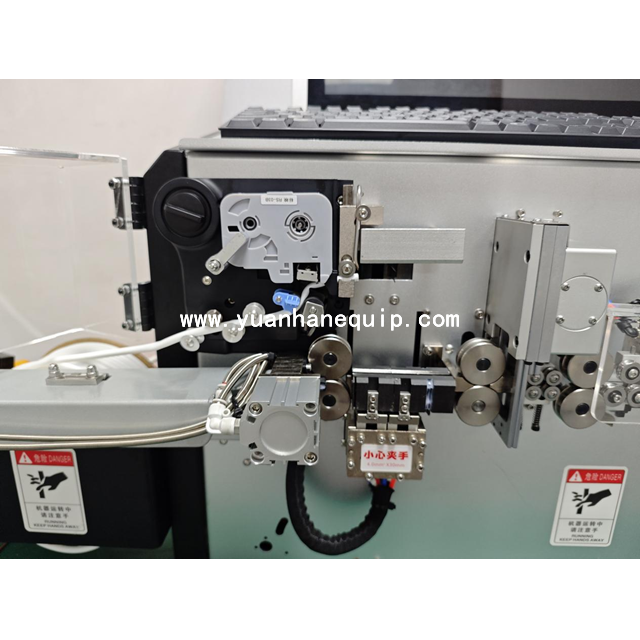

○ Equipped with advanced printing technology, our machine can produce clear and durable labels on wire number tubes of various sizes. The high-speed printing capabilities ensure quick turnaround times, making it ideal for high-volume production environments.

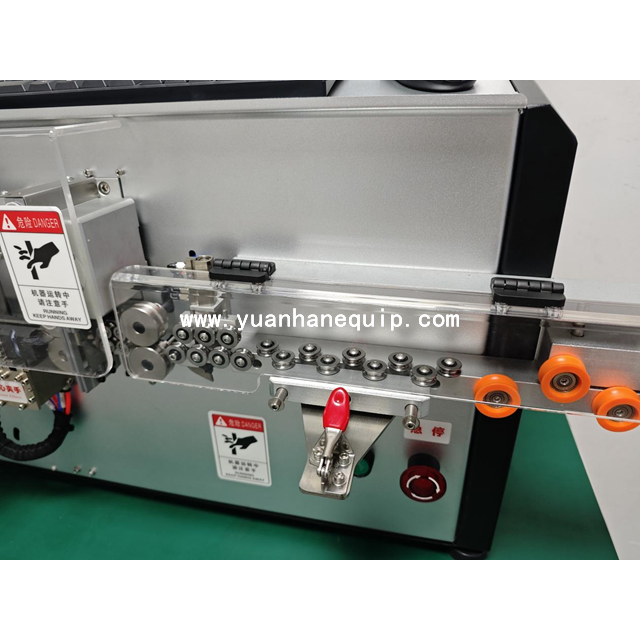

○ In addition to printing, our machine also features a precise inserting mechanism that securely places the labeled tubes onto wires with precision. This eliminates the need for manual insertion, reducing the risk of errors and improving overall efficiency.
○ The user-friendly interface of our machine allows for easy operation and customization of label designs. With its robust construction and reliable performance, our wire number tube printing and inserting machine is a valuable asset for any organization looking to enhance their wire labeling process.
| Model | YH-CHM2030 | |
|
Main functional modules |
Number tube printing module, wire bundling and laying module, wire cutting and stripping module, casing module, head end wire crushing module, wire collection device, Excel report data sorting and storage. |
|
|
Number tube length |
20mm or 30mm |
other tube lengths can be customized |
|
Number of characters to print |
① Tube length 20mm : Number of characters to be printed: Font size 4 , 6 characters; Font size 3 , 10 characters; |
|
|
② Tube length 30mm : Number of characters printed: Font size 4 , 10 characters ; Font size 3 , 16 characters ; |
||
|
Software operating environment |
windows7 , windows10 , exce; |
|
|
Control method |
All-in-one computer, PC software control ; |
|
|
Input method |
Direct input from PC software or import from Excel ; |
|
|
Connection |
USB and RS232 serial ports; |
|
|
Casing selection |
Casing or no casing; |
|
|
Casing direction |
Freely select the character direction of the conductor head and end number tube numbers; |
|
|
Wire use range |
0.75-4 mm2 National standard conventional BVR insulated wire, plastic insulation layer diameter ± 0.1mm ; |
|
|
Stripping function |
The stripping length and half-stripping size can be adjusted by software, and the first end of the wire can be crushed (bent); |
|
|
Wire pay-off reel |
①Wire length: 1mm2 (500 meters); 1.5mm2 (300 meters); 2.5mm2 (200 meters); 4mm2 (100 meters) |
|
|
②Extending the length of each bundle of wires needs to be customized; |
||
|
Cutting length |
150mm-20000mm |
|
|
Opening speed |
600 pieces / hour (taking tube length of about 20mm and wire length of 800mm as an example); |
|
|
Lack of material protection function |
If there is a lack of wires, number tubes, ribbons or low air pressure, the system will automatically detect it instantly, protect the equipment from shutdown and indicate the status; |
|
|
Fault protection function |
Protection detection function for failure of number tube installation, code installation jam, wiring channel blockage, wire feeding module jam, equipment shutdown and fault prompt; |
|
|
Execution Stop |
With manual emergency stop and software stop functions; |
|
|
Hub |
Finished wires with numbered tubes are collected by the wire collection trough, which is convenient for wire harness transfer and identification; |
|
|
Cooling method |
Forced air cooling; |
|
|
Working power supply |
220VAC/50Hz ; 1000W ; |
|
