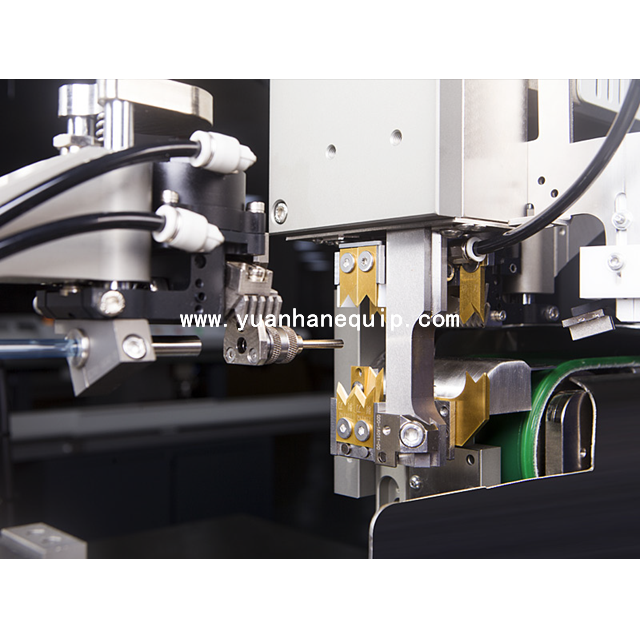

This fully automatic wire processing machine can handle wire cutting, single and double end half stripping, full stripping, single and double end crimping, wire rubber seals assembly, printing and inserting cable number tubes and heat shrinkable tubes, etc.

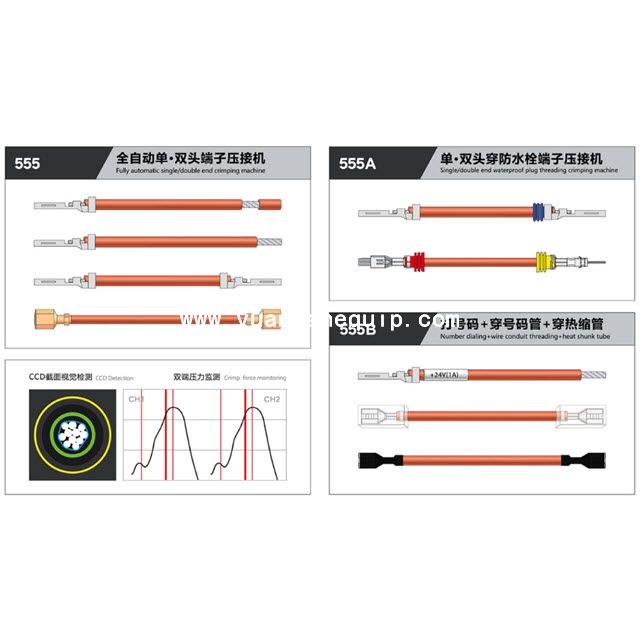

○ Function: wire cutting, single and double end half stripping, full stripping, single and double end crimping, wire rubber seals assembly, printing and inserting cable number tubes or heat shrinkable tubes
○ Adopts multi-station open platform, computer numerical control operating system, production management is more convenient.
○ Equipped with high-speed control system, rigid drive mechanism, precision servo motor and pneumatic components, the equipment has stable and reliable performance and high precision.
○ High-level processing capacity and high processing accuracy.
|Wire diameter x2||0.13-6.0m2(AWG6-AWG10)|
|Wire feeding speed||8-12m/s(Max)|
|Crimping stroke||30mm (40mm Optional)|
|Optional||wire rubber seals assembly workstation, number tube assembly workstation, terminal crimping visual module, puller, magnifying glass, electronic micrometer, protective cover|
