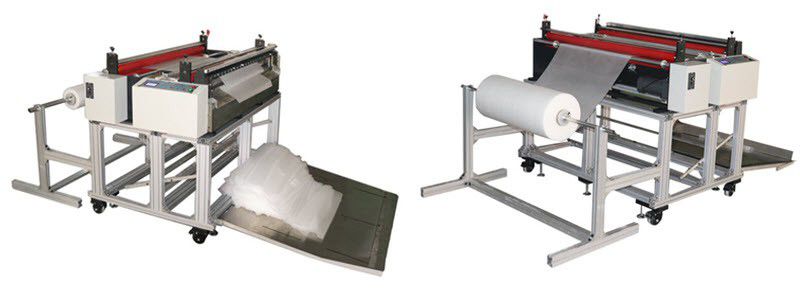

1200mm Width Sheet Cutting Machine, PET, PVC, EVA Film Roll To Sheet Cutting Machine

Views: 664 Author: Site Editor Publish Time: Origin: Site

This roll to sheet cutting machine is suitable for cutting insulation paper, kraft paper, PVC film, PET film, automotive film, bubble film, pearl cotton, EVA foam cotton, non-woven cloth, polyester cloth, copper foil, aluminum foil and all kinds of sheet, film, paper, ribbon and metal sheet.

Model: YH-1200S

1200mm Width Sheet Cutting Machine

Features

  • This machine is suitable for cutting non-woven materials like film and paper. It is widely used in bag making, printing and packaging industries.

  • The machine adopts stepper motor control of fixed length cutting.

  • With electric optical tracking system, the machine can process high precision cutting. Cutting accuracy: 0.1mm.

  • Cutting materials: insulation paper, kraft paper, PVC film, PET film, automotive film, bubble film, pearl cotton, EVA foam cotton, non-woven cloth, polyester cloth, copper foil, aluminum foil and all kinds of sheet, film, paper, ribbon and metal sheet

Contact us: sales@yuanhanequip.com


Operation video of the 1200mm Width Sheet Cutting Machine


Technical Data

Model YH-1200S
Cutting width 1-1220mm, adjustable
Cutting length 0.1-99999.9mm
Feeding motor High precision closed-loop motor
The cutter material SKD-11 high speed steel
Power 220V 50/60Hz
Cutting speed 30-120pcs/min
Cutting accuracy 0.1mm
The cutter motor High-power AC motor
Dimensions 2500*1550*1220mm
×
