Automatic 2 Line Flat Wire Color Sequence Detector

Views: 779 Author: Site Editor Publish Time: Origin: Site

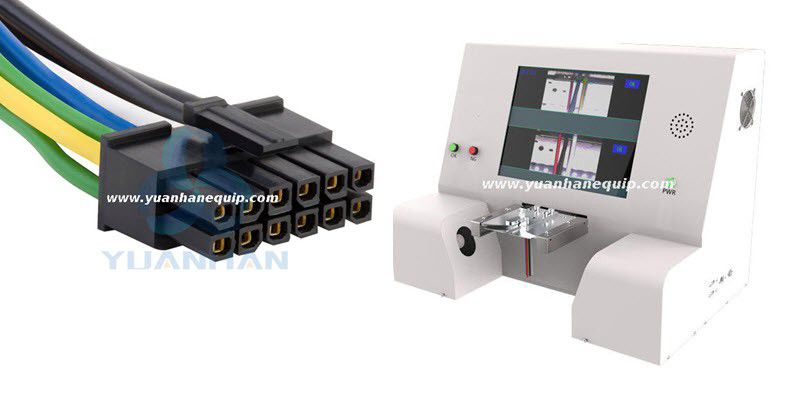

The two-row connector wire sequence detector machine can detect the conduction performance, and color sequence of single-row or double-row wires.

Model: YH-DC3

Automatic 2 Line Flat Wire Color Sequence Detector


  • Super anti-interference ability

  • Suitable for all double-row wiring harnesses, stable and universal

  • Strong anti-interference ability, text, color circle, line placement, etc. will not affect the test results

Contact us: sales@yuanhanequip.com

Operation video of the 2 line flat wire Color Sequence Detector

Technical Data

Model YH-DC3 (YH-SDC)
Camera pixels 1280*1024; 60FPS COMS
Progressive lens parameters megapixels: 75mm F1.4
Field of view 1-58mm
Detection time within 0.25
Power consumption within 35W
Motherboard embedded
The main MTBT >50000 hours
Keyboard and mouse

standard mouse, built-in screen keyboard, external interface USB
