Automatic Cable Tying Machine Nylon Cable Tie Bundling Machine

Views: 664 Author: Site Editor Publish Time: Origin: Site

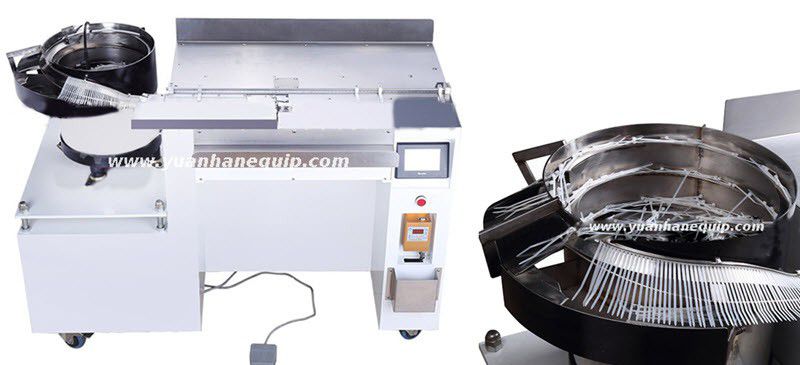

This nylon cable tie tying machine adopts vibration plate to feed the nylon cable ties to work position continuously. The operator only needs to put the wire harness to correct position and then press down the foot switch, then the machine will finish all tying steps automatically.

Model: YH-800L

Automatic Cable Tying Machine Nylon Cable Tie Bundling machine

Features

  • This nylon cable tie tying machine adopts vibration plate to feed the nylon cable ties to work position continuously. The operator only needs to put the wire harness to correct position and then press down the foot switch, then the machine will finish all tying steps automatically.

  • The automatic cable tie tying machine is widely used in automotive wire harness, appliance wire harness and other industries.

  • PLC touch screen control, clear and intuitive, easy to operate.

  • High degree of automation, good consistency, fast speed.

  • The tightness and tying length can be set through program, and the operator only needs to put the wire harness around the binding mouth, and the machine automatically senses and ties wires.

Contact us: sales@yuanhanequip.com


Operation video of the Automatic Cable Tying Machine Nylon Cable Tie Bundling Machine


Technical Data

Model  YH-800L
Applicable cable tie length  60mm,80mm,100mm,120mm (160mm can be customized)
Applicable cable tie width 3-5mm
Max strapping force 15N
Max. conduit diameter 11mm
Productivity 1200-1800pcs/hour
Power 0.75kw
Air pressure 0.6 Mpa
Noise level <70dBA
Electrical connection AC 220/110V/50/60HZ 750W
Starting System  Pedal
Weight 125kg
Dimensions  1200*550*780mm


×
