Kunshan Yuanhan Electronic Equipment Co., Ltd.

Automatic Cut & Strip Machines for Wire and Cable‎

Views: 150 Author: Site Editor Publish Time: Origin: Site

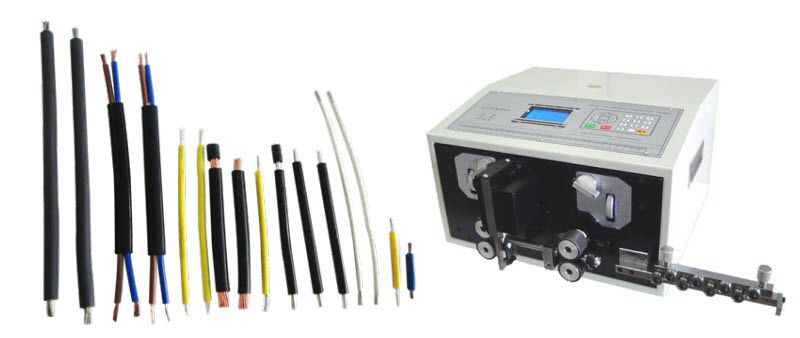

This automatic wire cutting and stripping machine is able to process different types of wires and cables, such as PVC cables, Teflon cables, Silicone cables, glass fiber cables and much more.

Model: YH-BE

wire cut and strip machine

Features

  • This machine adopts hybrid drive and is a fully automatic CNC equipment that introduces advanced technologies from Japan and Taiwan;

  • Suitable for PVC cables, Teflon cables, Silicone cables, glass fiber cables and much more;

  • LCD touch screen dialog mode, beautiful appearance, simple operation, easy maintenance, stable performance, fast speed, and high precision;

  • Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toys;

  • One-time cutting and stripping, and splitting at the same time;

  • Saving labor and time and increasing productivity


Contact us for detail: sales@yuanhanequip.com


Operation video of Automatic Cut & Strip Machines for Wire and Cable


Specifications

Model YH-BE YH-BJE YH-BJE2
Cutting length 1-9999mm 1-9999mm 1-9999mm
Cutting Tolerance (0.2±0.002×L)mm (0.2±0.002×L)mm (0.2±0.002×L)mm
Strip length

Head: 0-35mm

Tail: 0-15mm

Head: 0-50mm

Tail: 0-50mm

Head: 0-80mm

Tail: 0-80mm

Middle strip 3 Sections 3 Sections 3 Sections
Wire range 0.1-8mm2
( AWG8#-AWG32#)
 0.1-8mm2
 ( AWG8#-AWG32#)
0.1-10mm2
( AWG7#-AWG32#)
Conduit Diameter 10 10 10

Speed(pcs/h)

L=100mm,
3000-7000pcs/h
L=100mm,
3000-8000pcs/h
L=100mm,
3000-8000pcs/h
Power 300W 200(W) 200(W)
Voltage 220/110(V) 220/110(V) 220/110(V)
Gross Weight 33kg 33kg 36kg
Machine size 390*350*255mm 390*350*255mm 390*350*255mm



×
