Automatic Induction Wire Stripping Machine

Views: 388 Author: Site Editor Publish Time: Origin: Site

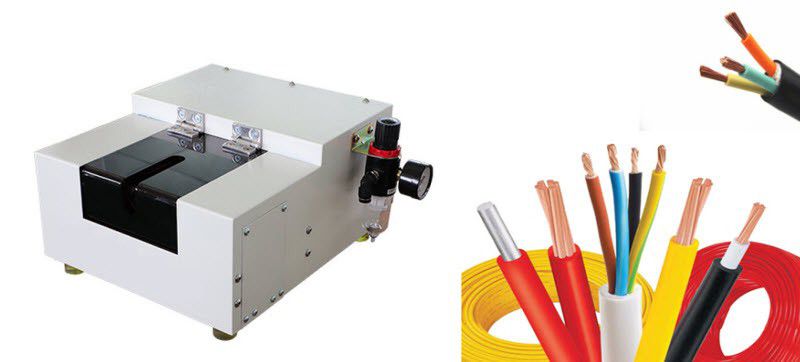

Automatic Induction Wire Stripping Machine YH-2016C is a multi-wire automatic induction wire stripping machine, which is equipped with inductive start so no foot switch is required. Different wire diameters can automatically adapt to the blade value and can process different wire diameters without any adjustment. For example, If the diameters of the five core wires of a sheathed wire are different, but the stripping length is the same, then there is no need to make any adjustments, just put the five different core wire diameters into the machine and strip the wires in order. The machine can automatically adapt to the diameter of the wire and the cutting depth, which greatly improves working efficiency.

Model: YH-2016C

 Automatic Induction Wire Stripping Machine


  • Mainly used to strip different sized cables, can strip inner core wires conveniently and rapidly.

  • Driven by cylinder, smart and portable.

  • Adopts imported pneumatic components, high precision, long life.

  • No need to change blades for stripping wires of different diameters.

Contact us for details: sales@yuanhanequip.com

Operation video of the semi-automatic induction wire stripping machine

Technical Data

Model YH-2016C
Wire range AWG#(2-14)(2.5-35mm²)
Applicable wires inner core wires of sheathed cable, inner core wires of power cable, single wire
Stripping length 2-30mm
Stroke 30mm
Air supply 0.5Mpa-0.8Mpa
Weight 15kg
Dimension 360*290*180mm
