Automatic multi-core round cable cutting and stripping machine YH-8030H

Views: 844 Author: Site Editor Publish Time: Origin: Site

This is a fully automatic multi-core cable cutting and stripping machine, which is good at processing of multi-core jacket cables. It can strip outer jacket and inner core insulation simultaneously. The applicable wire sizes range from 6-30 sq mm.

Model: YH-8030H

Automatic multi-core round cable cutting and stripping machine

Features

  • Function: cutting and stripping
  • Applicable wire sizes: 6-30 square mm

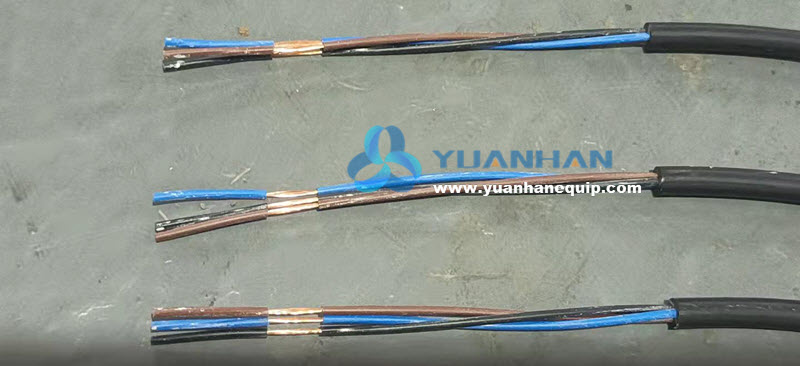

  • Strip outer skin and inner core skin of multi-conductor cables simultaneously
  • Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)
  • Belt feeding wires, no embossing and scratches
  • Head stripping: the sheathed wire completely falls off 10-120mm, the core wire completely falls off 1-120mm
  • Tail stripping: the sheathed wire completely falls off 10-240mm, the core wire completely falls off 1-240mm

Contact us: sales@yuanhanequip.com

Operation video of the Automatic multi-core round cable cutting and stripping machine

Technical Data

Model YH-8030H
Display 7 inch true color touch screen
Function Cutting and stripping
Head peeling MAX 120mm
Tail peeling MAX 240mm
Wire type Sheathed cables, PVC cables, etc.
Stripping range 6-30mm2
Cutting length 1mm-99999.9mm
Cutting tolerance within 0.002*L (L=cutting length)
Max catheter diameter Φ16
Tool material High quality imported high speed steel
Capacity 2300pcs/h
Remarks The machine can be customized for processing special cables, and the sample cable should be sent to us for test.
×
