Automatic PTFE Tape Application Machine

Views: 718 Author: Site Editor Publish Time: Origin: Site

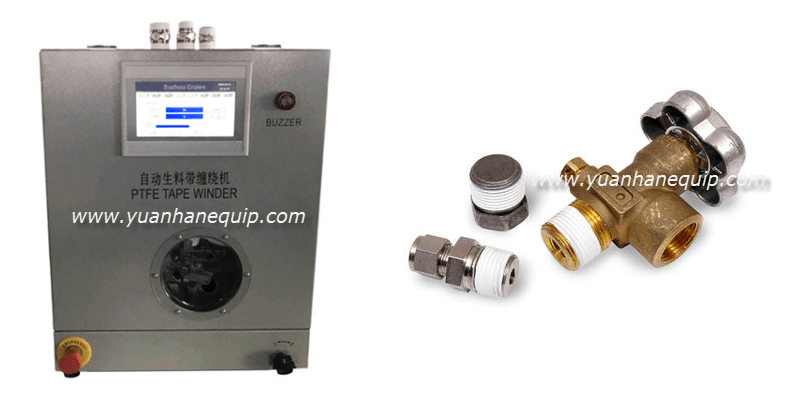

This automatic PTFE thread seal taping machine is suitable for wrapping Teflon/PTFE tape for all screwed joints, including pipe threads, valve fittings, plumbing fittings, water purifier connectors, hydraulic oil pipe fittings, tracheal joints and so on. It highly improves production efficiency.

Model: YH-1309

Automatic PTFE Tape Application Machine

Features

  • Easy to operate, no need for skilled workers, the number of turns and winding speed can be set

  • High efficiency and high quality, no rework and loss

  • Finishing a complete process in an average of 3 seconds

  • 5 times faster than the traditional skilled manual operation, 1 hour to produce 600-800 pieces

  • Winding closely and tightly, not easy to fall off

  • The data of servo drive is accurate, reliable and stable

Contact us: sales@yuanhanequip.com


Operation Video of Automatic PTFE Tape Application Machine


Technical Data

Model YH-1309
Tape width 5mm, 7mm, 10mm, 14mm, 16mm, 18mm
Weight 70KG
Size 450*400*560mm
Working speed 3-5pieces/second (wrap 2-3 circles)
Type Electric and automatic
Power 750W
Voltage 220V
Pressure 0.6Mpa
Applicable Teflon taping for threaded joints, especially for 1/8 - 1 1/2 inch threaded joints
Requirement for Teflon tape Teflon tape made of polytetrafluoroethylene dispersion resin


×
