Automatic Wire Bending and Stripping Machine for Max. 6mm2 Cable

Views: 628 Author: Site Editor Publish Time: Origin: Site

This wire cutting stripping and bending machine is suitable for processiing 1-6mm2 wires. It can strip both ends of the wire, and bend the wire into your required shape.

Model: YH-ZW6

Automatic Wire Bending and Stripping Machine for Max. 6mm2 Cable

Features

  • This is a high performance wire cutting stripping and bending machine for processing 1-6mm2 wires and cables;

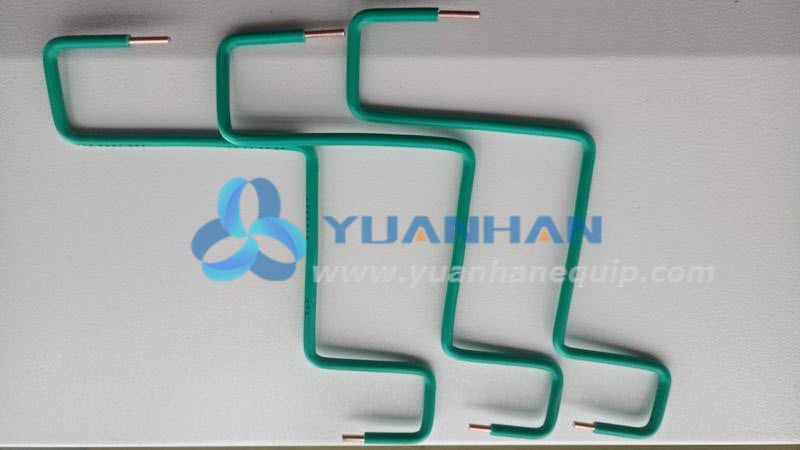

  • It can not only strip both ends of the wire, but also bend the wire into your requested angle;

  • The straightforward display provides information in the selected language about the current processing status, very visualized;

  • The machine is mainly suitable for wire harness processing of electronics, electrical appliances, toys, automobile fittings and other industries;

  • Affordable price and perfect working performance.

Contact us: sales@yuanhanequip.com


Operation video of the Automatic Wire Bending and Stripping Machine for Max. 6mm2 Cable


Technical Data

Model YH-ZW6
Features Wire cutting stripping and bending
Conductor cross-section 1-6mm2
Stripping length  0.1-50mm
Cutting length 1-100,000mm
Cutting tolerances ± (0.001xL)mm
Bending length Can be set
Bend shape/angle U shape, Z clockwise, counterclockwise bend, 30°, 45°, 60°, 90°
Production rate L=100mm, 2,000-3,000pcs/h
Power supply 110/220VAC, 50/60Hz
Power 600W
Conduit diameter Generally ⌀ 10mm, can be customized according to wire size
Display screen Chinese/English touch screen
Weight
55KG
Dimensions 53x53x40cm


×
