Automatic Wire Cutting Stripping Twisting and Tin Soldering Machine

Views: 663 Author: Site Editor Publish Time: Origin: Site

This automatic multi-core sheathed cable stripping twisting and tin soldering machine is mainly used for the processing of round sheathed three-core cables. It can cut the wire, peel the outer and inner skin, twist and solder tin at one time.

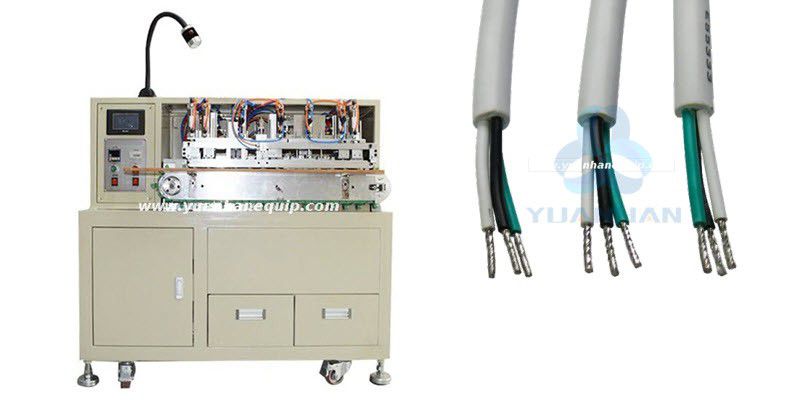

Automatic Wire Cutting Stripping Twisting and Tin Soldering Machine

Features

  • This machine is mainly used for the processing of round sheathed three-core cables. It can cut the wire, peel the outer and inner skin, twist and tin at one time

  • Compact design, fast positioning speed and high precision

  • High-power tin furnace, fast temperature recovery, high control accuracy

  • Stable quality, high output, high degree of automation, saving manpower

Contact us: sales@yuanhanequip.com


Operation video of the Multi-core Cable Wire Cutting Stripping Twisting and Tin Soldering Machine


Technical Data

Model
YH-HTZ100
Stripping length 2mm-9mm
Applicable wire H03VVH2-F, H05WH2-F, H03VV-F, RVV, VFF, three-core round wire, flat wire
Productivity 1700-2000 PCS/H
Maximum splitting size 50mm
Tinning length 2mm-9mm
Air source
0.5 Mpa-0.8 Mpa, 6m3/h
Voltage AC220V / 50HZ
Motor 0.75KW
Weight 300kg
Dimensions 1200×630×1300mm
Function Wire cutting, stripping, twisting, and tinning at one time


×
